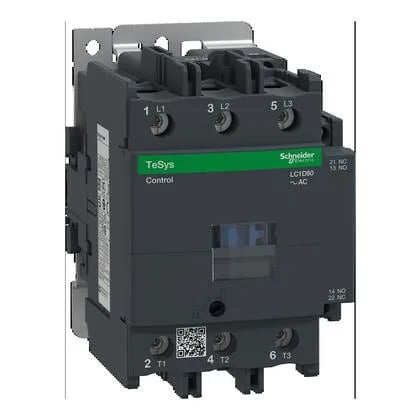

Schneider Electric TeSys Deca LC1D80L6 contactor, 3-pole, 80 A AC-3 / 125 A AC-1, 200 V AC 60 Hz coil, non-reversing, screw clamp terminals, IP20 front face, IEC/UL/CSA.
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Climatic withstand | IACS E10 exposure to damp heat |
| [Ue] rated operational voltage | Power circuit Power circuit 10 MOhm for signalling circuit |
| Poles description | 3P |
| Utilisation category | AC-3 AC-3e AC-4 AC-1 |
| IP degree of protection | IP20 front face IEC 60529 |
| Mounting support | Rail Plate |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 5.1 in (130 mm) |
| Width | 3.3 in (85 mm) |
| Height | 5 in (127 mm) |
| Parameter | Value |
|---|---|
| Standards | EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 UL 60947-4-1 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ IEC 60335-1:Clause 30.2 |
| Range | TeSys |
| Category | US10I1222359 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| Device short name | LC1D |
| Protective treatment | THIEC 60068-2-30 |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) Shocks contactor open 8 Gn for 11 ms) Vibrations contactor closed 3 Gn, 5...300 Hz) Shocks contactor closed 10 Gn for 11 ms) |
| Permissible ambient air temperature around the device | -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating |
The LC1D80L6 is a Schneider TeSys Deca IEC contactor rated 80 A in AC-3 duty and 125 A in AC-1, switching three poles normally open with a 200 V AC 60 Hz coil. It is a non-reversing, screw-clamp terminal unit with an IP20 front face, carrying UL 60947-4-1, CSA C22.2 No 14, and IEC 60947-4-1 certifications.
