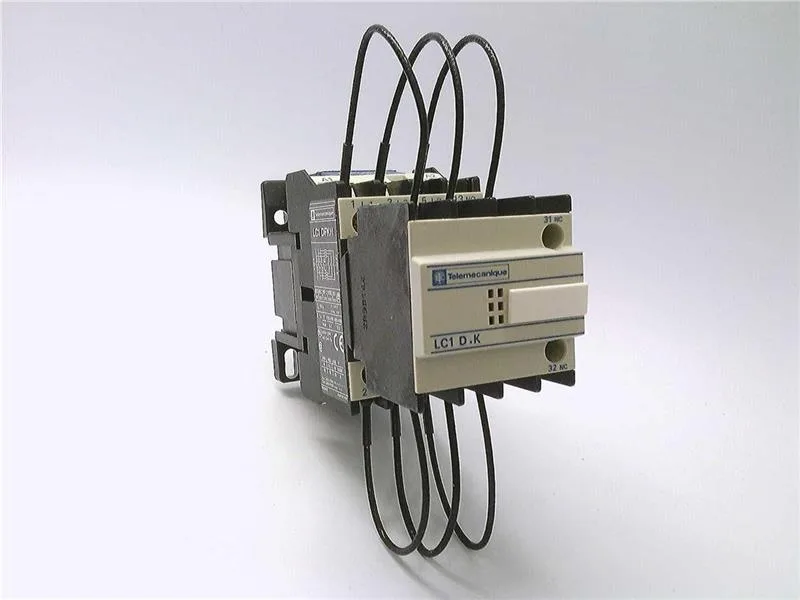

Schneider Electric LC1DFK11F5
MPNLC1DFK11F5
Active
LC1DFK11F5 by SCHNEIDER ELECTRIC
$48.58Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC at 50 Hz |
| Auxiliary contacts type | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Product or component type | Capacitor duty contactor |
| Coil voltage | 110 V AC 50 Hz |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| Reactive power rating | 12.5 kvar at 400...440 V AC 50/60 Hz 55 °C 18 kvar at 660...690 V AC 50/60 Hz 55 °C 6.7 kvar at 220...240 V AC 50/60 Hz 55 °C |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| IP degree of protection | IP2X conforming to IEC 60529 IP2X conforming to VDE 0106 |
| Mounting support | Rail Plate |
| Connections - terminals | Power circuit: connector 1 2.5 mm² - cable stiffness: flexible with cable end Power circuit: connector 1 4 mm² - cable stiffness: solid with cable end Power circuit: connector 2 1.5 mm² - cable stiffness: flexible with cable end Power circuit: connector 2 4 mm² - cable stiffness: solid with cable end |
| Operating altitude | 3000 m without derating |
All specifications
| Parameter | Value |
|---|---|
| Depth | 117 mm |
| Width | 45 mm |
| Height | 130 mm |
| Standards | NF C 54-100 IEC 60831 VDE 0560 IEC 60070 |
| Range | TeSys |
| Device short name | LC1DFK |
| Tightening torque | Power circuit: 1.2 N.m - on connector |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Contactor application | Power factor correction |
| Auxiliary contact composition | 1 NO + 1 NC |
| Ambient air temperature for storage | -60...80 °C |
| Ambient air temperature for operation | -5...60 °C |
MPN
LC1DFK11F5
