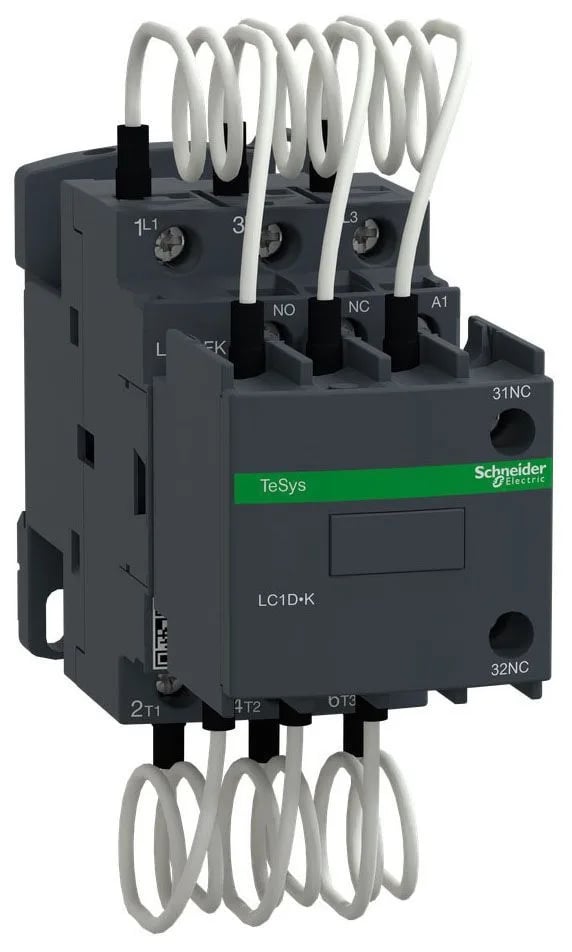

Schneider Electric LC1DFKB7
MPNLC1DFKB7
Active
Square D LC1DFKB7 12.5Kvar Contactor|Square D LC1DFKB7 12.5Kvar Contactor
$267.00 – $438.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 50/60 Hz |
| Auxiliary contacts type | Mechanically linked 1 NO + 2 NC IEC 60947-5-1 |
| Product or component type | Capacitor duty contactor |
| Coil voltage | 24 V AC 50/60 Hz |
| [Ue] rated operational voltage | Power circuit 690 V AC 50/60 Hz |
| Reactive power rating | 7 kvar 230 V AC 50 Hz 140 °F (60 °C) 12.5 kvar 400 V AC 50 Hz 140 °F (60 °C) 13 kvar 440 V AC 50 Hz 140 °F (60 °C) 21 kvar 690 V AC 50 Hz 140 °F (60 °C) |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-6b |
| IP degree of protection | IP20 front face IEC 60529 |
| Mounting support | DIN rail Plate |
| Connections - terminals | Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 0.002...0.009 in² (1.5...6 mm²) - cable stiffness: solid Power circuit: screw clamp terminals 2 0.002...0.006 in² (1.5...4 mm²) - cable stiffness: solid Power circuit: screw clamp terminals 1 0.002...0.009 in² (1.5...6 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 0.002...0.009 in² (1.5...6 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 0.002...0.009 in² (1.5...6 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 0.002...0.006 in² (1.5...4 mm²) - cable stiffness: flexible with cable end |
All specifications
| Parameter | Value |
|---|---|
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 4.8 in (121 mm) |
| Width | 1.8 in (45 mm) |
| Height | 4.5 in (115 mm) |
| Electrical durability | 300000 cycles 400 V 200000 cycles 690 V |
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 IEC 60335-1 |
| Range | TeSys TeSys Deca |
| Category | US10I1222354 |
| Device short name | LC1DFK |
| Tightening torque | Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals |
| Device application | Control |
| Contactor application | Power factor correction |
| Maximum operating rate | 240 cyc/h |
| Auxiliary contact composition | 1 NO + 2 NC instantaneous |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) |
MPN
LC1DFKB7
