Schneider Electric LC1DMK11B7
MPNLC1DMK11B7
Active

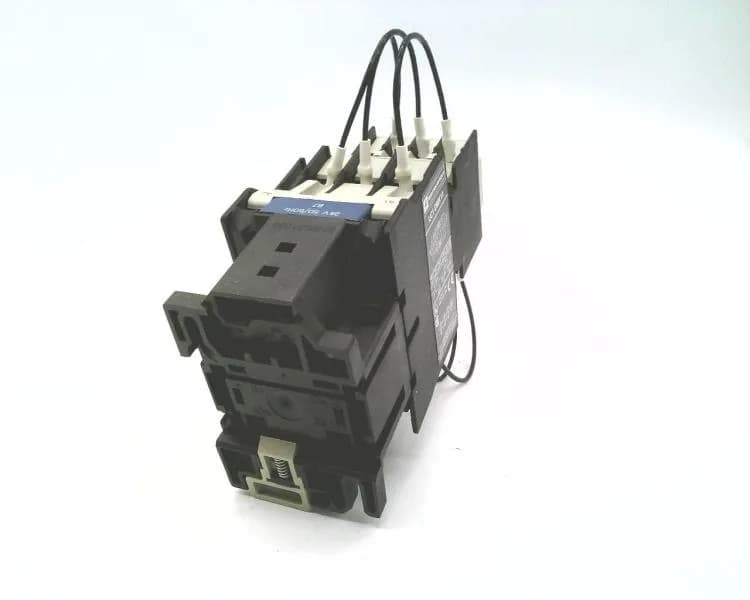

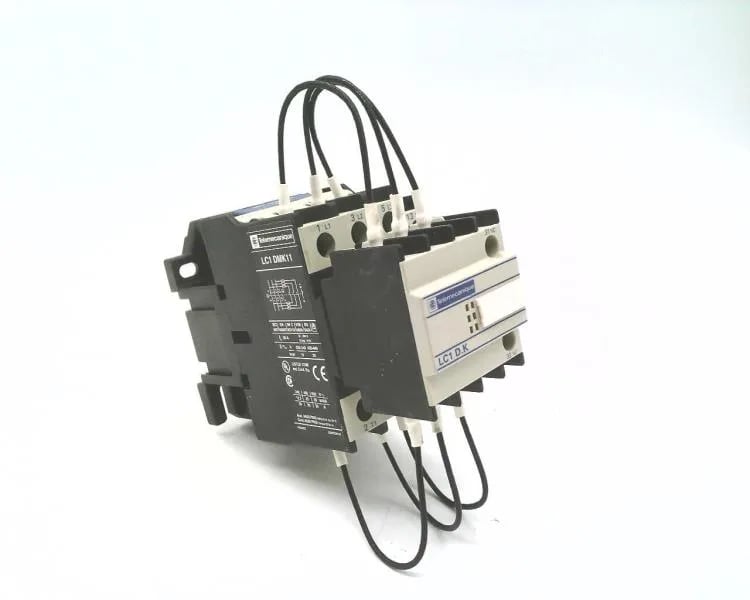

LC1DMK11B7 - CAPACITOR DUTY CONTACTOR by SCHNEIDER ELECTRIC
$77.72Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 50/60 Hz |
| Auxiliary contacts type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1 |
| Product or component type | Capacitor duty contactor |
| Coil voltage | 24 V AC 50/60 Hz |
| [Ue] rated operational voltage | Power circuit <= 690 V AC 50/60 Hz |
| Reactive power rating | 15 kvar 220...240 V AC 50/60 Hz 131 °F (55 °C) 25 kvar 400...440 V AC 50/60 Hz 131 °F (55 °C) 36 kvar 660...690 V AC 50/60 Hz 131 °F (55 °C) |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| IP degree of protection | IP2X IEC 60529 IP2X VDE 0106 |
| Mounting support | Rail Plate |
| Connections - terminals | Power circuit: connector 1 0.004 in² (2.5 mm²) - cable stiffness: flexible with cable end Power circuit: connector 1 0.006 in² (4 mm²) - cable stiffness: solid with cable end Power circuit: connector 2 0.002 in² (1.5 mm²) - cable stiffness: flexible with cable end Power circuit: connector 2 0.006 in² (4 mm²) - cable stiffness: solid with cable end |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
All specifications
| Parameter | Value |
|---|---|
| Depth | 4.8 in (122 mm) |
| Width | 2.2 in (56 mm) |
| Height | 5.5 in (140 mm) |
| Standards | VDE 0560 NF C 54-100 IEC 60831 IEC 60070 |
| Range | TeSys |
| Category | 22354-CTR,TESYS D,OPEN,9-38A AC |
| Device short name | LC1DMK |
| Tightening torque | Power circuit 22.1 lbf.in (2.5 N.m) connector |
| Protective treatment | TH IEC 60068-2-30 |
| Contactor application | Power factor correction |
| Auxiliary contact composition | 1 NO + 1 NC |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) |
MPN
LC1DMK11B7
