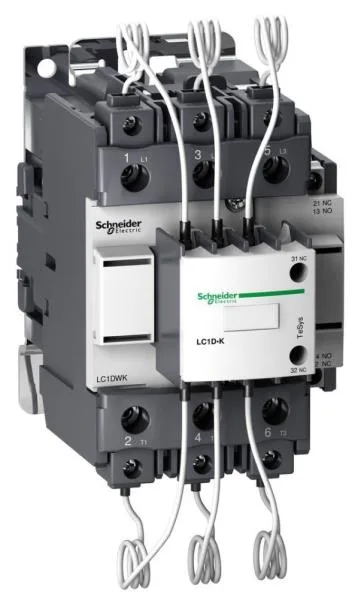

Schneider Electric LC1DPK12M7
MPNLC1DPK12M7
Obsolete
LC1DPK12M7 by SCHNEIDER ELECTRIC
$696.70Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 50/60 Hz |
| Auxiliary contacts type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1 |
| Product or component type | Capacitor duty contactor |
| Coil voltage | 220 V AC 50/60 Hz |
| [Ue] rated operational voltage | Power circuit <= 690 V AC 50/60 Hz |
| Reactive power rating | 20 kvar 220...240 V AC 50/60 Hz 131 °F (55 °C) 33.3 kvar 400...440 V AC 50/60 Hz 131 °F (55 °C) 48 kvar 660...690 V AC 50/60 Hz 131 °F (55 °C) |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| IP degree of protection | IP2X IEC 60529 IP2X VDE 0106 |
| Mounting support | Rail Plate |
| Connections - terminals | Power circuit: connector 1 0.004 in² (2.5 mm²) - cable stiffness: flexible with cable end Power circuit: connector 1 0.006 in² (4 mm²) - cable stiffness: solid with cable end Power circuit: connector 2 0.002 in² (1.5 mm²) - cable stiffness: flexible with cable end Power circuit: connector 2 0.006 in² (4 mm²) - cable stiffness: solid with cable end |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
All specifications
| Parameter | Value |
|---|---|
| Depth | 5.9 in (150 mm) |
| Width | 3.0 in (75 mm) |
| Height | 7.09 in (180 mm) |
| Standards | IEC 60070 IEC 60831 NF C 54-100 VDE 0560 |
| Range | TeSys |
| Category | 18401-WORLD SERVICE PARTS(CTR ACCESS) |
| Device short name | LC1DPK |
| Tightening torque | Power circuit 44.3 lbf.in (5 N.m) connector |
| Protective treatment | TH IEC 60068-2-30 |
| Contactor application | Power factor correction |
| Auxiliary contact composition | 1 NO + 2 NC |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) |
MPN
LC1DPK12M7
