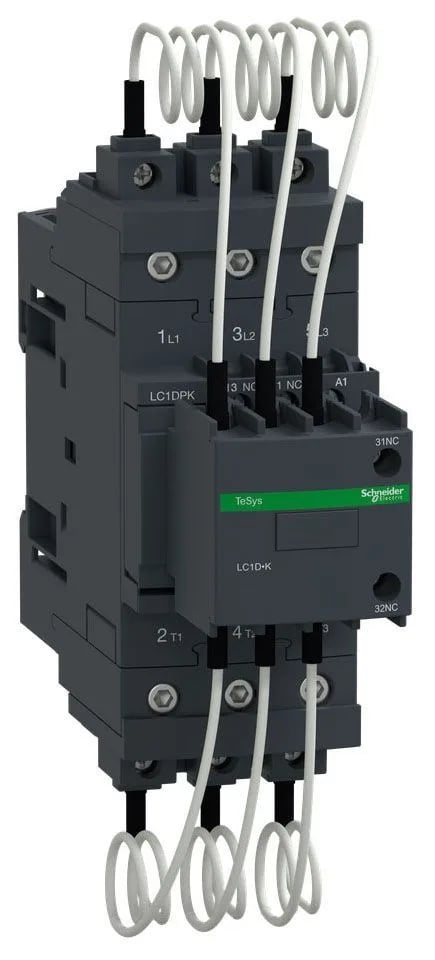

Schneider Electric LC1DPKU7
MPNLC1DPKU7
Obsolete
Square D LC1DPKU7 30Kvar Contactor|Square D LC1DPKU7 30Kvar Contactor
$910.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 50/60 Hz |
| Auxiliary contacts type | Mechanically linked 1 NO + 2 NC IEC 60947-5-1 |
| Product or component type | Capacitor duty contactor |
| Coil voltage | 240 V AC 50/60 Hz |
| [Ue] rated operational voltage | Power circuit 690 V AC 50/60 Hz |
| Reactive power rating | 17 kvar 230 V AC 50 Hz 140 °F (60 °C) 30 kvar 400 V AC 50 Hz 140 °F (60 °C) 32 kvar 440 V AC 50 Hz 140 °F (60 °C) 50 kvar 690 V AC 50 Hz 140 °F (60 °C) 16.5 kvar 230 V AC 60 Hz 140 °F (60 °C) 33.3 kvar 460 V AC 60 Hz 140 °F (60 °C) 40 kvar 575 V AC 60 Hz 140 °F (60 °C) |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-6b |
| IP degree of protection | IP20 front face IEC 60529 |
| Mounting support | DIN rail Plate |
| Connections - terminals | Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Power circuit: EverLink BTR screw connectors 1 0.002...0.05 in² (1...35 mm²) - cable stiffness: solid Power circuit: EverLink BTR screw connectors 2 0.002...0.04 in² (1...25 mm²) - cable stiffness: solid Power circuit: EverLink BTR screw connectors 1 0.002...0.05 in² (1...35 mm²) - cable stiffness: flexible with or without cable end Power circuit: EverLink BTR screw connectors 2 0.002...0.04 in² (1...25 mm²) - cable stiffness: flexible with or without cable end |
All specifications
| Parameter | Value |
|---|---|
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 6.1 in (156 mm) |
| Width | 2.2 in (55 mm) |
| Height | 6.5 in (166 mm) |
| Electrical durability | 300000 cycles 400 V 200000 cycles 690 V |
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC 60335-1 |
| Range | TeSys TeSys Deca |
| Category | US10I1222357 |
| Device short name | LC1DPK |
| Tightening torque | Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Power circuit 44.3 lbf.in (5 N.m) EverLink BTR screw connectors 0.002...0.04 in² (1...25 mm²) Power circuit 70.8 lbf.in (8 N.m) EverLink BTR screw connectors 0.05 in² (35 mm²) |
| Device application | Control |
| Contactor application | Power factor correction |
| Maximum operating rate | 100 cyc/h |
| Device location in system | Line interruption Inside delta interruption |
| Auxiliary contact composition | 1 NO + 2 NC instantaneous |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) |
MPN
LC1DPKU7
