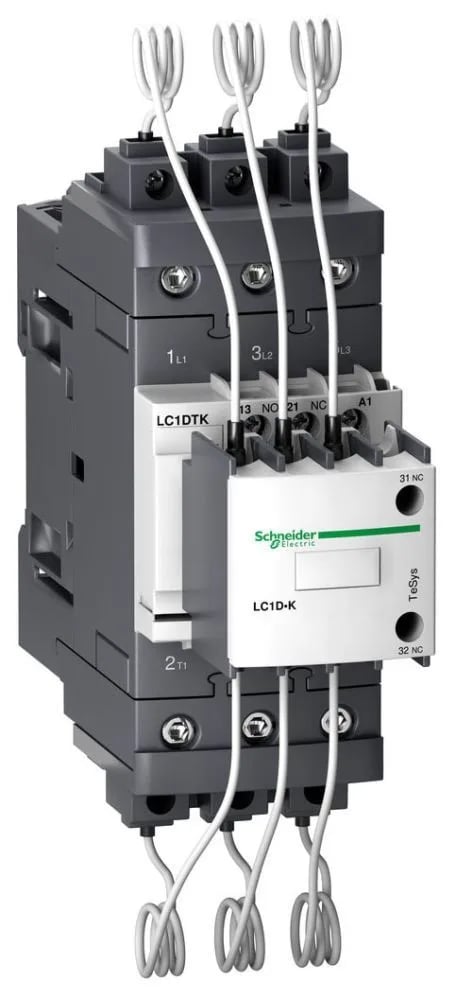

Schneider Electric LC1DTKF7

Schneider LC1DTKF7 TeSys Deca capacitor contactor, 40 kVAR, 110 V AC coil (disco

MPNLC1DTKF7
Active

Schneider LC1DTKF7 Iec Contactors — now discontinued, supplied from remaining surplus and broker stock.

$1,485.00Ref. price · indicative, final on quote
Schneider Electric LC1DTKF7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1DTKF7 key specifications
ParameterValue
Control circuit typeAC 50/60 Hz
Auxiliary contacts typeMechanically linked 1 NO + 2 NC IEC 60947-5-1
Product or component typeCapacitor duty contactor
Coil voltage110 V AC 50/60 Hz
[Ue] rated operational voltagePower circuit 690 V AC 50/60 Hz
Reactive power rating22 kvar 230 V AC 50 Hz 140 °F (60 °C) 40 kvar 400 V AC 50 Hz 140 °F (60 °C) 43 kvar 440 V AC 50 Hz 140 °F (60 °C) 67 kvar 690 V AC 50 Hz 140 °F (60 °C) 20 kvar 230 V AC 60 Hz 140 °F (60 °C) 40 kvar 460 V AC 60 Hz 140 °F (60 °C) 50 kvar 575 V AC 60 Hz 140 °F (60 °C)
Power pole contact composition3 NO
Poles description3P
Utilisation categoryAC-6b
IP degree of protectionIP20 front face IEC 60529
Mounting supportDIN rail Plate
Connections - terminalsControl circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Power circuit: EverLink BTR screw connectors 1 0.002...0.05 in² (1...35 mm²) - cable stiffness: solid Power circuit: EverLink BTR screw connectors 2 0.002...0.04 in² (1...25 mm²) - cable stiffness: solid Power circuit: EverLink BTR screw connectors 1 0.002...0.05 in² (1...35 mm²) - cable stiffness: flexible with or without cable end Power circuit: EverLink BTR screw connectors 2 0.002...0.04 in² (1...25 mm²) - cable stiffness: flexible with or without cable end

All specifications

LC1DTKF7 additional specifications
ParameterValue
Operating altitude0...9842.52 ft (0...3000 m)
Depth6.1 in (156 mm)
Width2.2 in (55 mm)
Height6.5 in (166 mm)
Electrical durability300000 cycles 400 V 200000 cycles 690 V
StandardsEN/IEC 60947-1 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC 60335-1
RangeTeSys TeSys Deca
CategoryUS10I1222357
Device short nameLC1DTK
Tightening torqueControl circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Power circuit 44.3 lbf.in (5 N.m) EverLink BTR screw connectors 0.002...0.04 in² (1...25 mm²) Power circuit 70.8 lbf.in (8 N.m) EverLink BTR screw connectors 0.05 in² (35 mm²)
Device applicationControl
Contactor applicationPower factor correction
Maximum operating rate100 cyc/h
Device location in systemInside delta interruption Line interruption
Auxiliary contact composition1 NO + 2 NC instantaneous
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation23...140 °F (-5...60 °C)

Product details

Overview

The LC1DTKF7 is a Schneider TeSys Deca capacitor duty contactor rated 40 kVAR at 400/415 V 50 Hz, switching three poles with a 110 V AC 50/60 Hz coil. It is built for capacitor bank switching in power factor correction panels, not for general motor starting. Power connections use EverLink BTR screw connectors rated to 8 N.m (70.8 lbf.in) for 35 mm² cable, giving a secure, high-current termination that resists loosening under thermal cycling.

Schneider discontinued the LC1DTKF7 on 2023-02-09. An RFQ confirms current availability and lead time for line-down or last-time-buy needs.

The LC1DTKF7 uses EverLink BTR screw connectors on the power circuit rated to 8 N.m (70.8 lbf.in) for 35 mm² cable, while the LC1DLKP7 uses standard screw clamp terminals rated to 2.5 N.m (22.1 lbf.in). The EverLink system provides a higher torque capacity and vibration-resistant connection, making the LC1DTKF7 the better choice for high-current capacitor banks where terminal integrity is critical.
