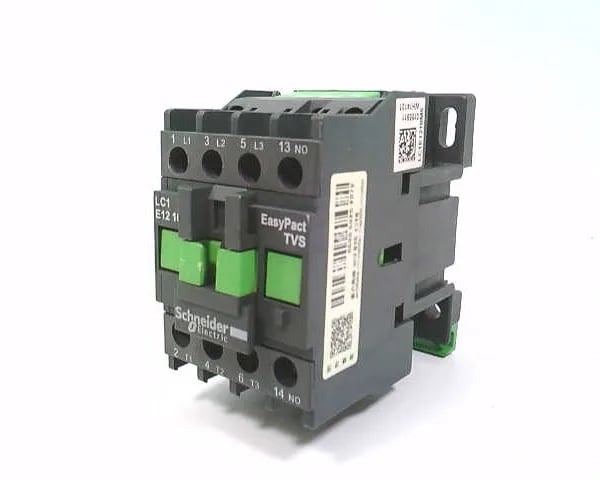

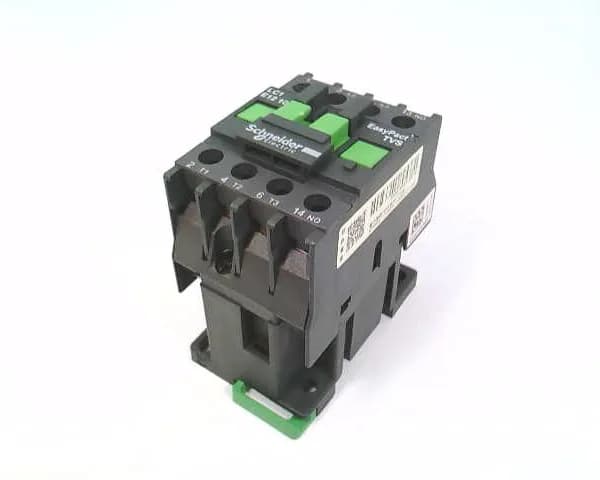

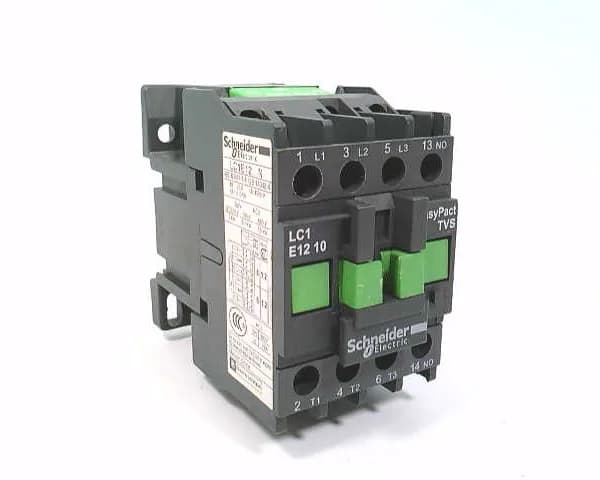

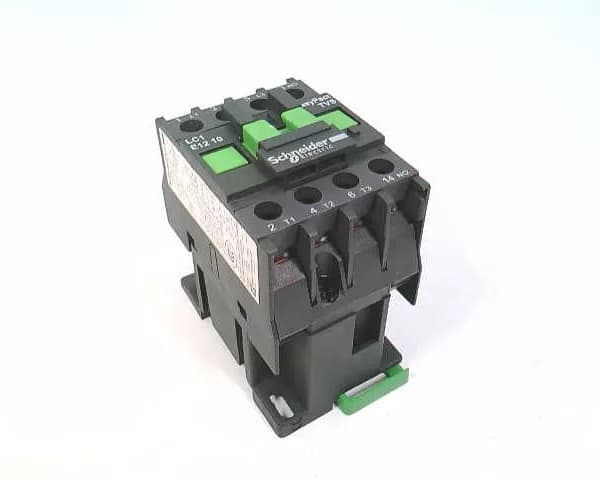

Schneider LC1E1210M5 Easy TeSys contactor, 12 A, 220 V AC coil (discontinued)

MPNLC1E1210M5

Active

Schneider Electric Easy TeSys LC1E1210M5 contactor, 3-pole, 12 A AC-3 rating, 220 V AC coil, 1 NO auxiliary contact, IP2X, plate/DIN-rail mount, discontinued.

$17.78Ref. price · indicative, final on quote

Request quote

Schneider Electric LC1E1210M5 datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

LC1E1210M5 key specifications
Parameter	Value
Range of product	Easy TeSys Control
Product or component type	Contactor
[Ue] rated operational voltage	Power circuit: 10 MOhm for control circuit
Poles description	3P
Utilisation category	AC-3 AC-3e AC-1
IP degree of protection	IP2X conforming to IEC 60529
Mounting support	Plate DIN rail
Operating altitude	3000 m without derating
Depth	80 mm
Width	45 mm
Height	74 mm
Standards	EN/IEC 60947-1 EN/IEC 60947-4-1 EN/IEC 60947-5-1 GB/T 14048.1 GB/T 14048.4 GB/T 14048.5 EN/IEC 60335-1:Clause 30.2 EN/IEC 60335-2-40:Annex JJ

All specifications

LC1E1210M5 additional specifications
Parameter	Value
Range	Easy TeSys
Fire resistance	850 °C conforming to IEC 60695-2-1
Non-overlap time	1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact
Device short name	LC1E
Protective treatment	TH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Contactor application	Motor control Resistive load
Mechanical robustness	Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (7 Gn for 11 ms) Shocks contactor closed (10 Gn for 11 ms)
Permissible ambient air temperature around the device	-20...70 °C at Uc -60...80 °C storage -5...55 °C operation

Product details

Overview

The LC1E1210M5 is a Schneider Easy TeSys three-pole contactor rated 12 A in AC-3 duty, energised by a 220 V AC coil at 50 Hz, and carries one normally-open auxiliary contact. It is sealed to IP2X and mounts to a plate or DIN rail, with a 45 mm width and 80 mm depth fitting standard panel layouts.

The LC1E1210M5 switches 12 A, while the TeSys Deca LC1D150P7 switches 250 A at 125 HP — a 20× current gap that makes the LC1D150P7 a different frame size, not a drop-in second source for the same panel cut-out.
