Schneider Electric LC1E18004U7

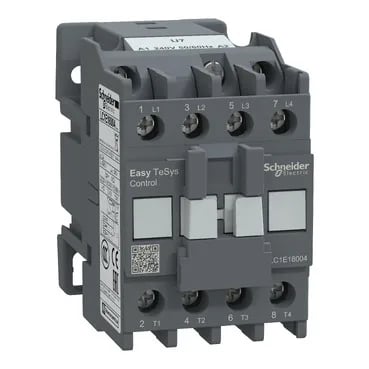

Schneider LC1E18004U7 Easy TeSys 4-pole Contactor, 240 V AC, 32 A

MPNLC1E18004U7
Obsolete

Schneider LC1E18004U7 Easy Tesys — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$23.49Ref. price · indicative, final on quote
Schneider Electric LC1E18004U7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1E18004U7 key specifications
ParameterValue
Range of productEasy TeSys Control
Control circuit typeAC at 50/60 Hz
Product or component typeContactor
Coil voltage240 V AC 50/60 Hz
Voltage690 V conforming to IEC 60947-4-1
Control circuit voltage limits0.85...1.1 Uc (-5...55 °C):operational 50/60 Hz 0.3...0.6 Uc (-5...55 °C):drop-out 50/60 Hz
[Ue] rated operational voltagePower circuit: <= 690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
[Icw] rated short-time withstand current145 A 40 °C - 10 s for power circuit 84 A 40 °C - 60 s for power circuit 40 A 40 °C - 600 s for power circuit
Breaking capacity144 A at 440 V for power circuit conforming to IEC 60947
[Ie] rated operational current32 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
[Ith] conventional free air thermal current32 A (at 55 °C) for power circuit

All specifications

LC1E18004U7 additional specifications
ParameterValue
Inrush power in95 VA 50 Hz cos phi 0.75 (at 20 °C) 95 VA 60 Hz cos phi 0.75 (at 20 °C)
Power dissipation per pole0.81 W AC-3 2.6 W AC-1
Hold-in power consumption in8.3 VA 50 Hz cos phi 0.3 (at 20 °C) 8.5 VA 60 Hz cos phi 0.3 (at 20 °C)
Poles description4P
Pole contact composition4 NO
Utilisation categoryAC-1
IP degree of protectionIP2X conforming to IEC 60529
Mounting supportPlate DIN rail
Connections - terminalsPower circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1...2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1...4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1...2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1...4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1.5...6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1.5...6 mm² - cable stiffness: solid without cable end
Pollution degree3
Operating altitude3000 m without derating
Depth80 mm
Width45 mm
Height74 mm
Product weight0.34 kg
Electrical durability300000 cycles AC-1 1200000 cycles AC-3
Mechanical durability10000000 cycles
StandardsEN/IEC 60947-1 EN/IEC 60947-4-1 GB/T 14048.1 GB/T 14048.4
RangeEasy TeSys
Operating time12...22 ms on closing 4...19 ms on opening
Fire resistance850 °C conforming to IEC 60695-2-1
Heat dissipation2...3 W for control circuit
Average impedance2.5 mOhm - Ith 35 A 50 Hz for power circuit
Device short nameLC1E
Tightening torquePower circuit: 1.2 N.m Control circuit: 1.2 N.m
Overvoltage categoryIII
Protective treatmentTH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Contactor applicationResistive load
Mechanical robustnessVibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (7 Gn for 11 ms) Shocks contactor closed (10 Gn for 11 ms)
Associated fuse rating35 A gG at <= 690 V coordination type 1 for power circuit
Maximum operating rate1800 cyc/h 60 °C
Irms rated making capacity180 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Auxiliary contact compositionWithout
Permissible ambient air temperature around the device-20...70 °C at Uc -60...80 °C storage -5...55 °C operation

Product details

Overview

The LC1E18004U7 is a Schneider Electric Easy TeSys 4-pole contactor rated for 32 A switching current in AC-1 resistive loads, with a 240 V AC 50/60 Hz coil.

This contactor switches resistive loads (AC-1) up to 32 A per pole, with a rated making capacity of 180 A at 440 V AC. The 4-pole configuration suits three-phase plus neutral or dual-load switching in a single package.

Applications

Commonly installed in panel boards for heating, lighting, and distribution switching where resistive loads dominate. The 4-pole format also appears in changeover schemes for standby generators and in motor starter assemblies where the contactor handles the line-side isolation.
