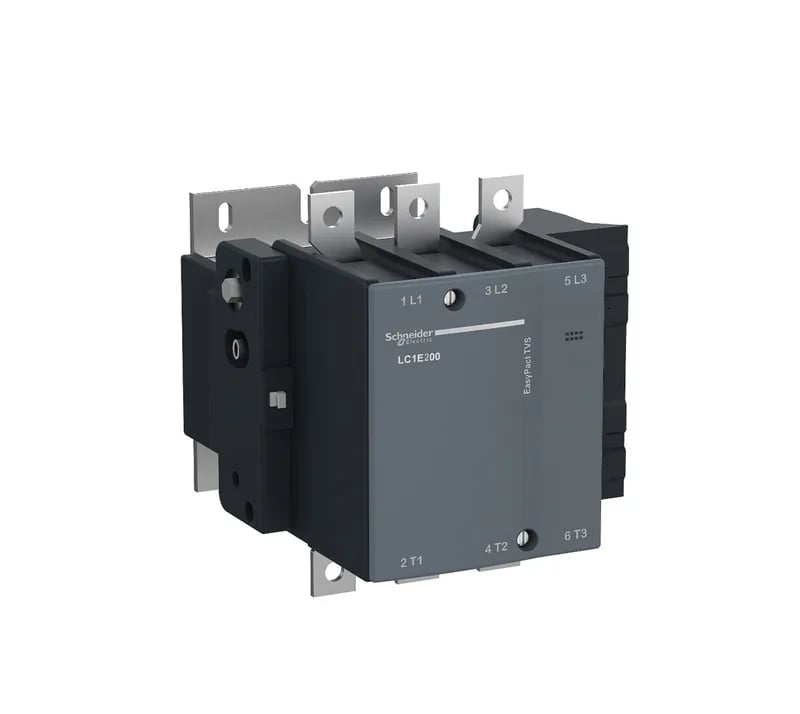

Schneider Electric LC1E200B6

Schneider LC1E200B6 Easy TeSys Contactor, 110 kW AC-3

MPNLC1E200B6
Active

Schneider Electric Easy TeSys LC1E200B6, 3-pole contactor, 24 V AC 60 Hz coil, 110 kW AC-3 motor switching at 500 V.

$570.00Ref. price · indicative, final on quote
Schneider Electric LC1E200B6 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1E200B6 key specifications
ParameterValue
Range of productEasy TeSys Control
Control circuit typeAC at 60 Hz
Product or component typeContactor
Coil voltage24 V AC 60 Hz
Voltage690 V conforming to IEC 60947-4-1
Control circuit voltage limits0.85...1.1 Uc (-5...55 °C):operational 60 Hz 0.35...0.55 Uc (-5...55 °C):drop-out 60 Hz
[Ue] rated operational voltagePower circuit: <= 690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage8 kV coil not connected to the power circuit conforming to IEC 60947
[Icw] rated short-time withstand current1500 A 40 °C - 10 s for power circuit
Breaking capacity1600 A at 440 V for power circuit conforming to IEC 60947
[Ie] rated operational current200 A (at 175 A (at 250 A (at <40 °C) at <= 440 V AC AC-1 for power circuit
[Ith] conventional free air thermal current250 A (at 40 °C) for power circuit

All specifications

LC1E200B6 additional specifications
ParameterValue
Motor power55 kW at 220/230 V AC 50/60 Hz 90 kW at 380/400 V AC 100 kW at 415/440 V AC 110 kW at 500 V AC 110 kW at 660/690 V AC 110 kW at 660...690 V
Inrush power in805 VA 50 Hz cos phi 0.3 (at 20 °C) 970 VA 60 Hz cos phi 0.3 (at 20 °C)
Power dissipation per pole13 W AC-3 21 W AC-1
Hold-in power consumption in55 VA 50 Hz cos phi 0.3 (at 20 °C) 66 VA 60 Hz cos phi 0.3 (at 20 °C)
Poles description3P
Pole contact composition3 NO
Utilisation categoryAC-3 AC-3e AC-1
IP degree of protectionIP2X conforming to IEC 60529
Mounting supportPlate
Connections - terminalsPower circuit: cable with lug 1 1...4 mm² - external diameter: 150 mm - cable stiffness: flexible without cable end Power circuit: bars 2 1...4 mm² - cable stiffness: flexible without cable end - busbar cross section: 3 x 25 mm Control circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1...4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1...2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...4 mm² - external diameter: 150 mm - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1...4 mm² - cable stiffness: solid without cable end - busbar cross section: 3 x 25 mm
Pollution degree3
Operating altitude3000 m without derating
Depth181 mm
Width168.5 mm
Height174 mm
Product weight4.6 kg
Electrical durability500000 cycles AC-3 200000 cycles AC-1
Mechanical durability5000000 cycles
StandardsEN/IEC 60947-1 EN/IEC 60947-4-1 GB/T 14048.1 GB/T 14048.4
RangeEasy TeSys
Operating time20...35 ms on closing 7...15 ms on opening
Fire resistance850 °C conforming to IEC 60695-2-1
Heat dissipation18...24 W for control circuit
Average impedance0.33 mOhm - Ith 250 A 50 Hz for power circuit
Device short nameLC1E
Tightening torqueControl circuit: 1.2 N.m Power circuit: 18 N.m
Overvoltage categoryIII
Protective treatmentTH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Contactor applicationMotor control Resistive load
Mechanical robustnessVibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms)
Associated fuse rating315 A gG at <= 690 V coordination type 1 for power circuit
Maximum operating rate1200 cyc/h 55 °C
Irms rated making capacity2000 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Auxiliary contact compositionWithout
Permissible ambient air temperature around the device-20...70 °C at Uc -60...80 °C storage -5...55 °C operation

Product details

Motor control rating at a glance

The LC1E200B6: This unit switches motor loads up to 110 kW in AC-3 duty at 500 V, and carries 100 kW at 415/440 V and 90 kW at 380/400 V. The 3-pole contactor is plate-mounted with screw-clamp power and control terminations. Coil is 24 V AC 60 Hz only; expect inrush 805 VA at 50 Hz and 970 VA at 60 Hz. Closing time 20–35 ms, opening 7–15 ms.

Listed as current production. It meets EN/IEC 60947-1 and 60947-4-1, plus GB/T 14048.1 and 14048.4. TH protective treatment per IEC 60068-2-30.

Sourcing and fit notes

No auxiliary contacts on this unit - order separately if needed. Rated breaking capacity 1600 A at 440 V, making capacity 2000 A. Electrical durability 500,000 cycles AC-3, mechanical 5 million cycles.

Frequently asked questions

What is the motor power rating at 415 V?

100 kW in AC-3 duty at 415/440 V, 50/60 Hz.

What control voltage does this contactor use?

24 V AC at 60 Hz.

What is the depth of this unit?

181 mm.

What compliance standards does this part meet?

EN/IEC 60947-1, EN/IEC 60947-4-1, GB/T 14048.1, GB/T 14048.4.
