Schneider LC1E65008M7 Easy Tesys Control — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
| Parameter | Value |
|---|---|
| Range of product | Easy TeSys Control |
| Control circuit type | AC at 50/60 Hz |
| Product or component type | Contactor |
| Coil voltage | 220 V AC 50/60 Hz |
| Voltage | 690 V conforming to IEC 60947-4-1 |
| Control circuit voltage limits | 0.85...1.1 Uc (-5...55 °C):operational 50/60 Hz 0.3...0.6 Uc (-5...55 °C):drop-out 50/60 Hz |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 520 A 40 °C - 10 s for power circuit 260 A 40 °C - 60 s 110 A 40 °C - 600 s |
| Breaking capacity | 520 A at 440 V for power circuit conforming to IEC 60947 |
| [Ie] rated operational current | 80 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Ith] conventional free air thermal current | 80 A (at 55 °C) for power circuit |
| Parameter | Value |
|---|---|
| Inrush power in | 160 VA 50 Hz cos phi 0.75 (at 20 °C) 140 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Power dissipation per pole | 4.2 W AC-3 6.4 W AC-1 |
| Hold-in power consumption in | 15 VA 50 Hz cos phi 0.3 (at 20 °C) 13 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Poles description | 4P |
| Pole contact composition | 2 NO + 2 NC |
| Utilisation category | AC-1 |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Mounting support | DIN rail Plate |
| Connections - terminals | Control circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1...4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1...2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1...4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 2.5...25 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 2.5...10 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 2.5...25 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 2.5...16 mm² - cable stiffness: solid without cable end |
| Pollution degree | 3 |
| Operating altitude | 3000 m without derating |
| Depth | 125 mm |
| Width | 85 mm |
| Height | 127 mm |
| Product weight | 1.3 kg |
| Electrical durability | 350000 cycles AC-1 900000 cycles AC-3 |
| Mechanical durability | 5000000 cycles |
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 GB/T 14048.1 GB/T 14048.4 |
| Range | Easy TeSys |
| Operating time | 20...26 ms on closing 8...12 ms on opening |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Heat dissipation | 6...10 W for control circuit |
| Average impedance | 1 mOhm - Ith 80 A 50 Hz for power circuit |
| Device short name | LC1E |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 5 N.m |
| Overvoltage category | III |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Contactor application | Resistive load |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms) |
| Associated fuse rating | 125 A gG at <= 690 V coordination type 1 for power circuit |
| Maximum operating rate | 1200 cyc/h 60 °C |
| Irms rated making capacity | 650 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Auxiliary contact composition | Without |
| Permissible ambient air temperature around the device | -20...70 °C at Uc -60...80 °C storage -5...55 °C operation |

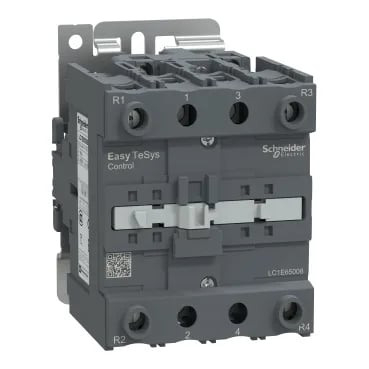

The LC1E65008M7 is a Schneider Easy TeSys Control 4-pole contactor rated for 80 A switching current in AC-1 utilization category, with a 220 V AC 50/60 Hz coil. This part is in active production.
Standard lead times apply through distribution; submit an RFQ for firm pricing and availability.
