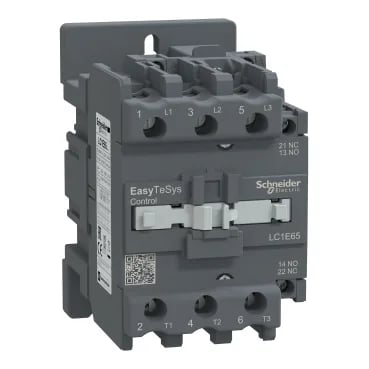

Schneider Electric LC1E65F7
MPNLC1E65F7
Active
LC1E65F7 - CONTACTOR by SCHNEIDER ELECTRIC
$100.33Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| [Ue] rated operational voltage | Power circuit: 10 MOhm for control circuit |
| Poles description | 3P |
| Utilisation category | AC-3 AC-3e AC-1 |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Mounting support | Plate DIN rail |
| Operating altitude | 3000 m without derating |
| Depth | 114 mm |
| Width | 75 mm |
| Height | 127 mm |
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 EN/IEC 60947-5-1 GB/T 14048.1 GB/T 14048.4 GB/T 14048.5 EN/IEC 60335-1:Clause 30.2 EN/IEC 60335-2-40:Annex JJ |
All specifications
| Parameter | Value |
|---|---|
| Range | Easy TeSys |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact |
| Device short name | LC1E |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms) |
| Permissible ambient air temperature around the device | -20...70 °C at Uc -60...80 °C storage -5...55 °C operation |
MPN
LC1E65F7
