Overview

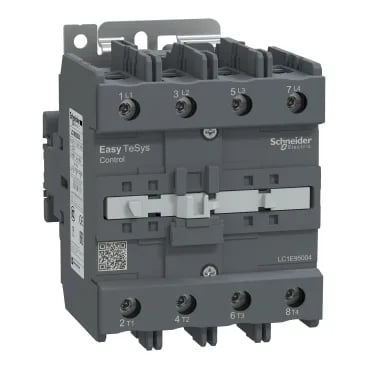

The LC1E95004B7 is a Schneider Electric Easy TeSys contactor, order code LC1E95004B7, with 4 poles, a 24 V AC 50/60 Hz coil, and a rated switching current of 125 A in utilization category AC-1 for resistive loads. The main pole configuration is 4 normally-open (4 NO), and the contactor carries certifications under CB Scheme, CCC, CE, and EAC, with compliance to EN/IEC 60947-1 and EN/IEC 60947-4-1.
The LC1E95004B7 uses an AC-operated coil at 24 V 50/60 Hz with a coil resistance of 850 ohms and a typical power consumption of 22 W. The control circuit dissipates 6 to 10 W under steady-state conditions. The power circuit average impedance is 0.8 mOhm at 125 A 50 Hz, which keeps voltage drop low in continuous resistive-load switching.
Applications
This contactor is designed for AC-1 resistive load switching — typical applications include electric heating banks, lighting circuits, and power-factor correction capacitor banks where inrush current is low and the load current is sinusoidal. The 4-pole configuration with all NO contacts suits three-phase plus neutral switching or four independent resistive circuits. The IP2X finger-safe enclosure and TH protective treatment (IEC 60068-2-30) allow installation in panel environments with pollution degree 3.
The LC1E95004B7 is an active Schneider Electric catalog item within the Easy TeSys range. No end-of-life notification or phase-out date is indicated in current documentation. The contactor carries a standard 18-month warranty from date of manufacture. Compliance documentation includes CB Scheme, CCC, CE, and EAC certifications, plus standards conformance to EN/IEC 60947-1, EN/IEC 60947-4-1, GB/T 14048.1, and GB/T 14048.4. No RoHS or REACH declarations are listed in the evidence; these are typically available from Schneider's product documentation portal.
