Schneider Electric LC1E95004F7

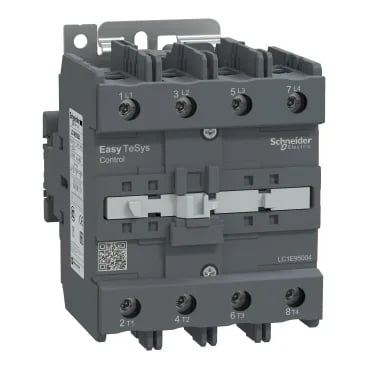

Schneider LC1E95004F7 Easy TeSys Contactor, 4-Pole, 110 V AC Coil

MPNLC1E95004F7
Obsolete

Schneider LC1E95004F7 Easy Tesys — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$151.40Ref. price · indicative, final on quote
Schneider Electric LC1E95004F7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1E95004F7 key specifications
ParameterValue
Range of productEasy TeSys Control
Control circuit typeAC at 50/60 Hz
Product or component typeContactor
Coil voltage110 V AC 50/60 Hz
Voltage690 V conforming to IEC 60947-4-1
Control circuit voltage limits0.85...1.1 Uc (-5...55 °C):operational 50/60 Hz 0.3...0.6 Uc (-5...55 °C):drop-out 50/60 Hz
[Ue] rated operational voltagePower circuit: <= 690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
[Icw] rated short-time withstand current135 A 40 °C - 600 s for power circuit 800 A 40 °C - 10 s for power circuit 400 A 40 °C - 60 s for power circuit
Breaking capacity760 A at 440 V for power circuit conforming to IEC 60947
[Ie] rated operational current125 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
[Ith] conventional free air thermal current125 A (at 55 °C) for power circuit

All specifications

LC1E95004F7 additional specifications
ParameterValue
Inrush power in200 VA 50 Hz cos phi 0.75 (at 20 °C) 220 VA 60 Hz cos phi 0.75 (at 20 °C)
Power dissipation per pole7.2 W AC-3 12 W AC-1
Hold-in power consumption in22 VA 60 Hz cos phi 0.3 (at 20 °C) 20 VA 50 Hz cos phi 0.3 (at 20 °C)
Poles description4P
Pole contact composition4 NO
Utilisation categoryAC-1
IP degree of protectionIP2X conforming to IEC 60529
Mounting supportPlate DIN rail
Connections - terminalsControl circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1...4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1...2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1...4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 4...50 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 4...16 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 4...50 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 4...50 mm² - cable stiffness: solid without cable end
Pollution degree3
Operating altitude3000 m without derating
Depth135 mm
Width95 mm
Height127 mm
Product weight1.6 kg
Electrical durability900000 cycles AC-3 350000 cycles AC-1
Mechanical durability3000000 cycles
StandardsEN/IEC 60947-1 EN/IEC 60947-4-1 GB/T 14048.1 GB/T 14048.4
RangeEasy TeSys
Operating time20...35 ms on closing 6...30 ms on opening
Fire resistance850 °C conforming to IEC 60695-2-1
Heat dissipation6...10 W for control circuit
Average impedance0.8 mOhm - Ith 125 A 50 Hz for power circuit
Device short nameLC1E
Tightening torqueControl circuit: 1.2 N.m Power circuit: 12 N.m
Overvoltage categoryIII
Protective treatmentTH (pollution degree 3) conforming to IEC 60068-2-30
Contactor applicationResistive load
Mechanical robustnessVibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms)
Associated fuse rating160 A gG at <= 690 V coordination type 1 for power circuit
Maximum operating rate1200 cyc/h 60 °C
Irms rated making capacity950 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Auxiliary contact compositionWithout
Permissible ambient air temperature around the device-20...70 °C at Uc -60...80 °C storage -5...55 °C operation

Product details

Overview

The LC1E95004F7 is a Schneider Electric Easy TeSys 4-pole contactor, order code LC1E95004F7, with a 110 V AC 50/60 Hz coil and four normally-open main poles rated for AC-1 resistive loads up to 125 A switching current at 690 V supply voltage. It carries EN/IEC 60947-1 and 60947-4-1 certifications, mounts on plate or DIN rail, and is rated IP2X for in-cabinet installation.

This contactor closes its four NO poles when the 110 V AC coil is energised, switching resistive loads up to 125 A. The AC-1 utilisation category means it is rated for loads where the inrush current does not exceed the steady-state current — typical for heating elements, lighting banks, and resistive furnaces.

Applications

Easy TeSys contactors of this size are used in panel-building and OEM applications for switching resistive loads — electric heating, lighting distribution, and process heaters — where four-pole isolation or switching is required. The 110 V AC coil suits installations with standard control transformers in industrial and commercial switchgear.

MPN
LC1E95004F7
