Schneider Electric LC1E95004U7

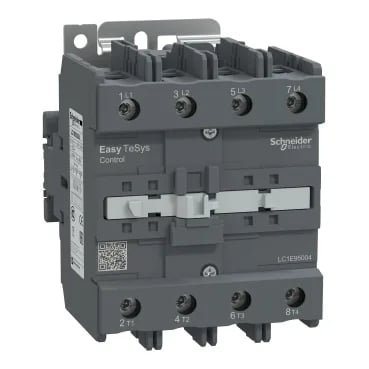

Schneider LC1E95004U7 Easy TeSys Contactor, 4-pole, 240 V AC coil, 125 A

MPNLC1E95004U7
Obsolete

Schneider Easy TeSys LC1E95004U7 contactor, order code LC1E95004U7, 4-pole, 240 V AC 50/60 Hz coil, 125 A AC-1 switching, 4 NO main poles, screw-clamp terminals, DIN-rail or plate mount, IP2X.

$151.40Ref. price · indicative, final on quote
Schneider Electric LC1E95004U7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1E95004U7 key specifications
ParameterValue
Range of productEasy TeSys Control
Control circuit typeAC at 50/60 Hz
Product or component typeContactor
Coil voltage240 V AC 50/60 Hz
Voltage690 V conforming to IEC 60947-4-1
Control circuit voltage limits0.85...1.1 Uc (-5...55 °C):operational 50/60 Hz 0.3...0.6 Uc (-5...55 °C):drop-out 50/60 Hz
[Ue] rated operational voltagePower circuit: <= 690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
[Icw] rated short-time withstand current135 A 40 °C - 600 s for power circuit 800 A 40 °C - 10 s for power circuit 400 A 40 °C - 60 s for power circuit
Breaking capacity760 A at 440 V for power circuit conforming to IEC 60947
[Ie] rated operational current125 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
[Ith] conventional free air thermal current125 A (at 55 °C) for power circuit

All specifications

LC1E95004U7 additional specifications
ParameterValue
Inrush power in200 VA 50 Hz cos phi 0.75 (at 20 °C) 220 VA 60 Hz cos phi 0.75 (at 20 °C)
Power dissipation per pole7.2 W AC-3 12 W AC-1
Hold-in power consumption in22 VA 60 Hz cos phi 0.3 (at 20 °C) 20 VA 50 Hz cos phi 0.3 (at 20 °C)
Poles description4P
Pole contact composition4 NO
Utilisation categoryAC-1
IP degree of protectionIP2X conforming to IEC 60529
Mounting supportDIN rail Plate
Connections - terminalsControl circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1...4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1...2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1...4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1...4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 4...50 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 4...16 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 4...50 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 4...50 mm² - cable stiffness: solid without cable end
Pollution degree3
Operating altitude3000 m without derating
Depth135 mm
Width95 mm
Height127 mm
Product weight1.6 kg
Electrical durability900000 cycles AC-3 350000 cycles AC-1
Mechanical durability3000000 cycles
StandardsEN/IEC 60947-1 EN/IEC 60947-4-1 GB/T 14048.1 GB/T 14048.4
RangeEasy TeSys
Operating time20...35 ms on closing 6...30 ms on opening
Fire resistance850 °C conforming to IEC 60695-2-1
Heat dissipation6...10 W for control circuit
Average impedance0.8 mOhm - Ith 125 A 50 Hz for power circuit
Device short nameLC1E
Tightening torqueControl circuit: 1.2 N.m Power circuit: 12 N.m
Overvoltage categoryIII
Protective treatmentTH (pollution degree 3) conforming to IEC 60068-2-30
Contactor applicationResistive load
Mechanical robustnessVibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms)
Associated fuse rating160 A gG at <= 690 V coordination type 1 for power circuit
Maximum operating rate1200 cyc/h 60 °C
Irms rated making capacity950 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Auxiliary contact compositionWithout
Permissible ambient air temperature around the device-20...70 °C at Uc -60...80 °C storage -5...55 °C operation

Product details

Overview

The LC1E95004U7 is a Schneider Easy TeSys 4-pole contactor, rated for 125 A switching current in AC-1 utilization category, with a 240 V AC 50/60 Hz coil. The contactor mounts on DIN rail or plate, accepts screw-clamp terminations up to 50 mm² on the power circuit, and is rated IP2X per IEC 60529 for in-cabinet installation.

This contactor switches resistive loads (AC-1) up to 125 A per pole. The 240 V AC coil draws 22 W at steady state and dissipates 6–10 W in the control circuit; coil resistance is 850 Ω. Pickup and dropout times are 20 ms. The power circuit is rated for 690 V insulation voltage and has a breaking capacity of 760 A at 440 V per IEC 60947. Coordination type 1 requires a 160 A gG fuse upstream. It withstands vibration of 1.5 Gn (open) and 3 Gn (closed), and shock of 6 Gn (open) and 7 Gn (closed).

Applications

Easy TeSys contactors of this rating are used in resistive load switching for industrial heating, lighting, and distribution panels.

Within the Schneider Easy TeSys range, the LC1E95004U7 sits at the 125 A frame size with a 240 V AC coil — a common voltage for European and Asian panel builds. It is a standard catalog item for OEMs and panel builders who need a reliable, certified contactor for resistive or moderate inductive loads without auxiliary contact blocks.
