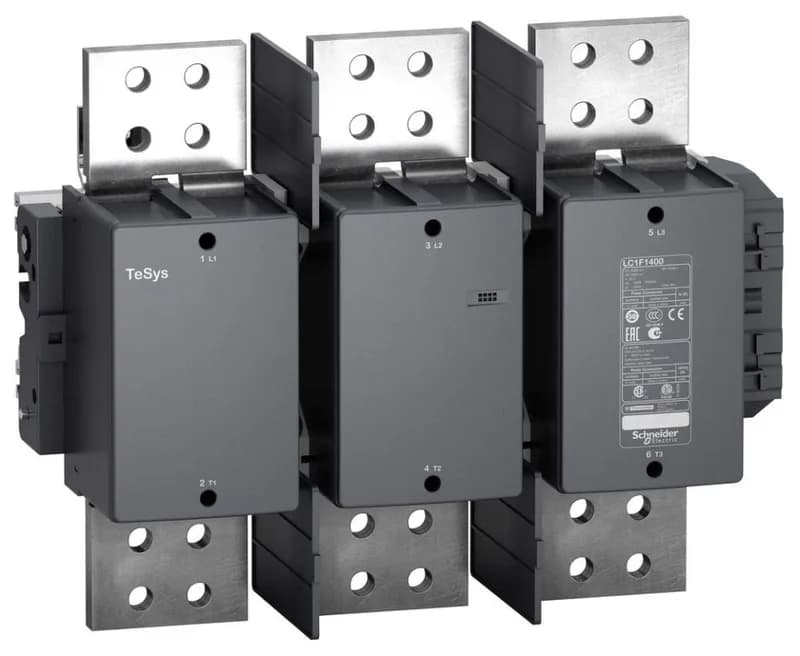

Schneider Electric LC1F1400P7
MPNLC1F1400P7
End of Life
Square D LC1F1400P7 1400A Iec Contactor|Square D LC1F1400P7 1400A Iec Contactor
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys F |
| Control circuit type | AC 40...400 Hz |
| Product or component type | Contactor |
| Coil voltage | 230 V AC 40...400 Hz |
| Voltage | 1000 V IEC 60947-4-1 1500 V VDE 0110 group C 1000 V UL 60947-4-1 |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) Drop-out 0.3...0.5 Uc 40...400 Hz 131 °F (55 °C)) |
| [Ue] rated operational voltage | <= 460 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand current | 8000 A 104 °F (40 °C) - 10 s 6000 A 104 °F (40 °C) - 30 s 4500 A 104 °F (40 °C) - 1 min 4000 A 104 °F (40 °C) - 3 min 2600 A 104 °F (40 °C) - 10 min |
| Breaking capacity | 2100 A conforming to IEC 60947-4-1 |
| [Ie] rated operational current | 1400 A (at <104 °F (40 °C)) AC AC-1 |
| [Ith] conventional free air thermal current | 1400 A (at 104 °F (40 °C)) |
All specifications
| Parameter | Value |
|---|---|
| Inrush power in | 2200 VA, 40...400 Hz 0.9 68 °F (20 °C)) |
| Power dissipation per pole | 150 W AC-1 |
| Power pole contact composition | 3 NO |
| Hold-in power consumption in | 36 VA, 40...400 Hz 0.9 68 °F (20 °C)) |
| Poles description | 3P |
| Utilisation category | AC-1 |
| Mounting support | Plate |
| Connections - terminals | Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.002...0.006 in² (1...4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)flexible with cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)solid without cable end Control circuit screw clamp terminals 2 0.002...0.006 in² (1...4 mm²)solid without cable end Power circuit bar 2 100 x 5 mm Power circuit bolted connection |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Depth | 9.4 in (238.6 mm) |
| Width | 17.2 in (438 mm) |
| Height | 13.07 in (332 mm) |
| Standards | IEC 60947-1 IEC 60947-4-1 JIS C8201-4-1 EN 60947-1 EN 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
| Range | TeSys |
| Category | US10I1222336 |
| Operating time | 100...170 ms opening 40...75 ms closing |
| Heat dissipation | 36 W |
| Average impedance | 0.1 mOhm - Ith 1700 A 50 Hz |
| Device short name | LC1F |
| Tightening torque | Control circuit 10.6 lbf.in (1.2 N.m) Power circuit 513.3 lbf.in (58 N.m) |
| Compatibility code | LC1F |
| Overvoltage category | III |
| Protective treatment | TH |
| Contactor application | Resistive load |
| Associated fuse rating | 1600 A gG at <= 440 V |
| Maximum operating rate | 600 cyc/h 131 °F (55 °C) |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | 23...104 °F (-5...40 °C) |
| Permissible ambient air temperature around the device | -40...140 °F (-40...60 °C) |
