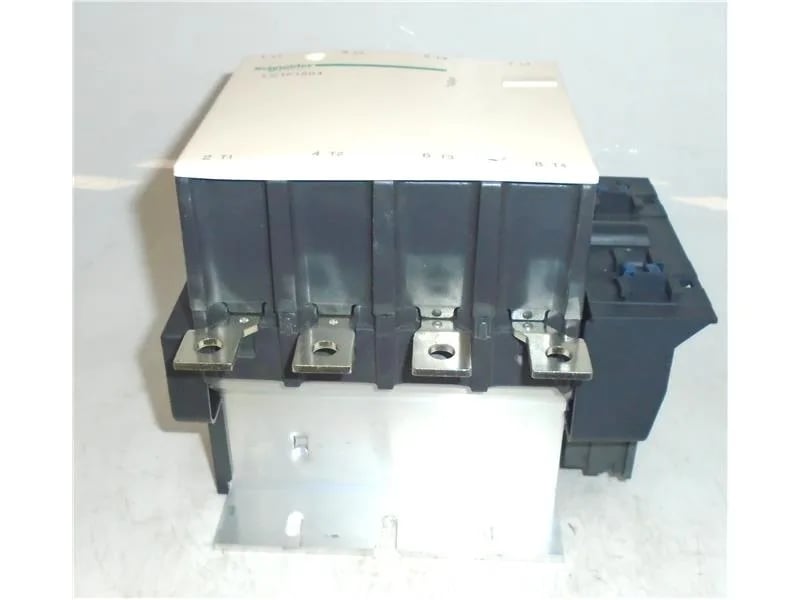

Schneider Electric LC1F1504G6
MPNLC1F1504G6
Obsolete
LC1F1504G6 - CONTACTOR by TELEMECANIQUE
$529.09Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys F |
| Product or component type | Contactor |
| Coil voltage | 120 V AC 60 Hz |
| Voltage | 1000 V IEC 60947-4-1 1500 V VDE 0110 group C |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 50/60 Hz 131 °F (55 °C)) Drop-out 0.35...0.55 Uc 50/60 Hz 131 °F (55 °C)) |
| [Ue] rated operational voltage | <= 460 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand current | 1200 A 104 °F (40 °C) - 10 s 700 A 104 °F (40 °C) - 30 s 600 A 104 °F (40 °C) - 1 min 450 A 104 °F (40 °C) - 3 min 350 A 104 °F (40 °C) - 10 min |
| Breaking capacity | 1200 A conforming to IEC 60947-4-1 |
| [Ie] rated operational current | 250 A (at <104 °F (40 °C)) at <= 440 V AC AC-1 |
| [Ith] conventional free air thermal current | 250 A (at 104 °F (40 °C)) |
| Inrush power in | 660 VA, 60 Hz 0.3 68 °F (20 °C)) |
All specifications
| Parameter | Value |
|---|---|
| Motor power HP (UL (CSA)) | 40 hp at 200 V AC 50 hp at 230 V AC 100 hp at 460 V AC 125 hp at 575 V AC |
| Power dissipation per pole | 22 W AC-1 |
| Power pole contact composition | 4 NO |
| Hold-in power consumption in | 55 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Poles description | 4P |
| Utilisation category | AC-1 |
| IP degree of protection | IP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106 |
| Mounting support | Plate |
| Connections - terminals | Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.002...0.006 in² (1...4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)flexible with cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)solid without cable end Control circuit screw clamp terminals 2 0.002...0.006 in² (1...4 mm²)solid without cable end Power circuit bolted connection Power circuit 2 bars 25 x 3 mm Power circuit lugs-ring terminals 1 0.2 in² (120 mm²) Power circuit connector 1 0.2 in² (120 mm²) |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Depth | 6.7 in (171 mm) |
| Width | 7.9 in (200.5 mm) |
| Height | 6.7 in (170 mm) |
| Mechanical durability | 10 Mcycles |
| Standards | EN 60947-4-1 IEC 60947-1 EN 60947-1 IEC 60947-4-1 JIS C8201-4-1 |
| Category | 22336-CTR,F-LINE,AC,OPEN,NONREV |
| Operating time | 23...35 ms closing 5...15 ms opening |
| Heat dissipation | 12...16 W |
| Average impedance | 0.35 mOhm - Ith 250 A 50 Hz |
| Device short name | LC1F |
| Tightening torque | Control circuit 10.6 lbf.in (1.2 N.m) Power circuit 159.3 lbf.in (18 N.m) |
| Overvoltage category | III |
| Protective treatment | TH |
| Contactor application | Resistive load |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed6 Gn, 5...300 Hz Shocks contactor open9 Gn for 11 ms Shocks contactor closed15 Gn for 11 ms |
| Associated fuse rating | 160 A aM at 250 A gG at <= 440 V |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -40...140 °F (-40...60 °C) |
| Permissible ambient air temperature around the device | 140...158 °F (60...70 °C) |
MPN
LC1F1504G6
