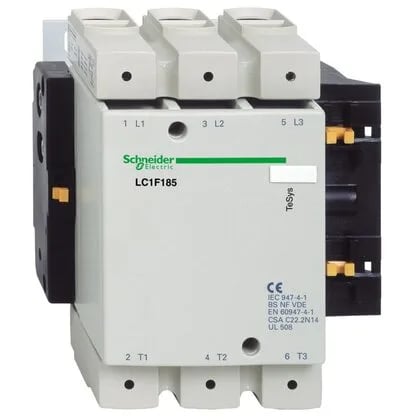

Schneider Electric LC1F185B6
MPNLC1F185B6
Obsolete
TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 275 A - coil 24 V AC|TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 275 A - coil 24 V AC
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys F |
| Control circuit type | AC 60 Hz |
| Product or component type | Contactor |
| Coil voltage | 24 V AC 60 Hz |
| Voltage | 1000 V IEC 60947-4-1 1500 V VDE 0110 group C |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 50/60 Hz 131 °F (55 °C)) Drop-out 0.35...0.55 Uc 50/60 Hz 131 °F (55 °C)) |
| [Ue] rated operational voltage | <= 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand current | 1500 A 104 °F (40 °C) - 10 s 920 A 104 °F (40 °C) - 30 s 740 A 104 °F (40 °C) - 1 min 500 A 104 °F (40 °C) - 3 min 400 A 104 °F (40 °C) - 10 min |
| Breaking capacity | 1480 A conforming to IEC 60947-4-1 |
| [Ie] rated operational current | 275 A (at 185 A (at <131 °F (55 °C)) at <= 440 V AC-3 |
| [Ith] conventional free air thermal current | 275 A (at 104 °F (40 °C)) |
All specifications
| Parameter | Value |
|---|---|
| Motor power | 90 kW at 380...400 V AC 50/60 Hz (AC-3) 100 kW at 415 V AC 50/60 Hz (AC-3) 100 kW at 440 V AC 50/60 Hz (AC-3) 110 kW at 500 V AC 50/60 Hz (AC-3) 110 kW at 660...690 V AC 50/60 Hz (AC-3) 55 kW at 220...230 V AC 50/60 Hz (AC-3) 33 kW at 400 V AC 50/60 Hz (AC-4) |
| Inrush power in | 970 VA, 60 Hz 0.3 68 °F (20 °C)) |
| Power dissipation per pole | 12 W AC-3 25 W AC-1 |
| Power pole contact composition | 3 NO |
| Hold-in power consumption in | 66 VA, 60 Hz 0.3 68 °F (20 °C)) |
| Poles description | 3P |
| Utilisation category | AC-3 AC-1 |
| IP degree of protection | IP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106 |
| Mounting support | Plate |
| Connections - terminals | Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.002...0.006 in² (1...4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)flexible with cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)solid without cable end Control circuit screw clamp terminals 2 0.002...0.006 in² (1...4 mm²)solid without cable end Power circuit bar 2 25 x 3 mm Power circuit lugs-ring terminals 1 0.2 in² (150 mm²) Power circuit connector 1 0.2 in² (150 mm²) Power circuit bolted connection |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Depth | 7.1 in (181 mm) |
| Width | 6.6 in (168.5 mm) |
| Height | 6.9 in (174 mm) |
| Mechanical durability | 10 Mcycles |
| Standards | JIS C8201-4-1 IEC 60947-1 EN 60947-4-1 EN 60947-1 IEC 60947-4-1 |
| Range | TeSys |
| Category | US10I1222336 |
| Operating time | 20...35 ms closing 7...15 ms opening |
| Heat dissipation | 18...24 W |
| Average impedance | 0.33 mOhm - Ith 275 A 50 Hz |
| Device short name | LC1F |
| Tightening torque | Control circuit 10.6 lbf.in (1.2 N.m) Power circuit 159.3 lbf.in (18 N.m) |
| Compatibility code | LC1F |
| Overvoltage category | III |
| Protective treatment | TH |
| Contactor application | Motor control Resistive load |
| Associated fuse rating | 200 A aM at 315 A gG at <= 440 V |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
| Permissible ambient air temperature around the device | -40...158 °F (-40...70 °C) |
MPN
LC1F185B6
