Schneider Electric LC1F265X7

Schneider LC1F265X7 TeSys F Contactor 265 A AC-3 EOL

MPNLC1F265X7
Obsolete

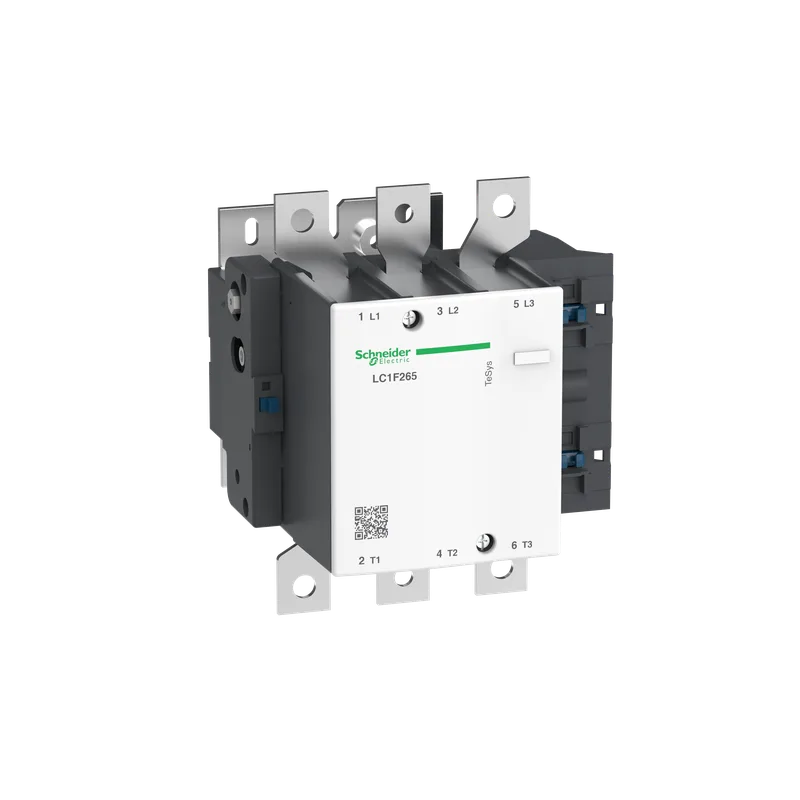

Schneider Electric TeSys F LC1F265X7 3-pole contactor, 265 A AC-3, 550-600 V AC coil, AC-3 motor switching.

$1,200.00Ref. price · indicative, final on quote
Schneider Electric LC1F265X7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

LC1F265X7 key specifications
ParameterValue
Range of productTeSys F
Control circuit typeAC 40...400 Hz
Product or component typeContactor
Coil voltage550...600 V AC 40...400 Hz
Voltage1000 V IEC 60947-4-1 1500 V VDE 0110 group C
Control circuit voltage limitsOperational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) Drop-out 0.15...0.2 Uc 40...400 Hz 131 °F (55 °C))
[Ue] rated operational voltage<= 460 V DC
[Uimp] rated impulse withstand voltage8 kV
[Icw] rated short-time withstand current2200 A 104 °F (40 °C) - 10 s 1230 A 104 °F (40 °C) - 30 s 950 A 104 °F (40 °C) - 1 min 620 A 104 °F (40 °C) - 3 min 480 A 104 °F (40 °C) - 10 min
Breaking capacity2120 A conforming to IEC 60947-4-1
[Ie] rated operational current350 A (at 265 A (at <131 °F (55 °C)) at <= 440 V AC AC-3
[Ith] conventional free air thermal current350 A (at 104 °F (40 °C))

All specifications

LC1F265X7 additional specifications
ParameterValue
Motor power132 kW at 380...400 V AC 50/60 Hz (AC-3) 140 kW at 415 V AC 50/60 Hz (AC-3) 140 kW at 440 V AC 50/60 Hz (AC-3) 160 kW at 500 V AC 50/60 Hz (AC-3) 160 kW at 660...690 V AC 50/60 Hz (AC-3) 147 kW at 1000 V AC 50/60 Hz (AC-3) 75 kW at 220...230 V AC 50/60 Hz (AC-3) 51 kW at 400 V AC 50/60 Hz (AC-4)
Inrush power in650 VA, 40...400 Hz 0.9 68 °F (20 °C))
Power dissipation per pole37 W AC-1 21 W AC-3
Power pole contact composition3 NO
Hold-in power consumption in10 VA, 40...400 Hz 0.9 68 °F (20 °C))
Poles description3P
Utilisation categoryAC-4 AC-1 AC-3
IP degree of protectionIP20 front face with shrouds IEC 60529 IP20 front face with shrouds VDE 0106
Mounting supportPlate
Connections - terminalsControl circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.002...0.006 in² (1...4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)flexible with cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)solid without cable end Control circuit screw clamp terminals 2 0.002...0.006 in² (1...4 mm²)solid without cable end Power circuit bar 2 32 x 4 mm Power circuit lugs-ring terminals 1 0.4 in² (240 mm²) Power circuit connector 1 0.4 in² (240 mm²) Power circuit bolted connection
Operating altitude9842.52 ft (3000 m) without derating
Depth8.4 in (213 mm)
Width7.9 in (201.5 mm)
Height8.0 in (203 mm)
Mechanical durability10 Mcycles
StandardsEN 60947-1 IEC 60947-1 JIS C8201-4-1 IEC 60947-4-1 EN 60947-4-1
RangeTeSys
CategoryUS10I1222336
Operating time40...65 ms closing 100...170 ms opening
Heat dissipation8 W
Average impedance0.3 mOhm - Ith 350 A 50 Hz
Device short nameLC1F
Tightening torqueControl circuit 10.6 lbf.in (1.2 N.m) Power circuit 309.8 lbf.in (35 N.m)
Compatibility codeLC1F
Overvoltage categoryIII
Protective treatmentTH
Contactor applicationMotor control Resistive load
Associated fuse rating315 A aM at 400 A gG at <= 440 V
Maximum operating rate2400 cyc/h 131 °F (55 °C)
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation23...131 °F (-5...55 °C)
Permissible ambient air temperature around the device-40...158 °F (-40...70 °C)

Product details

The LC1F265X7 is a 3-pole TeSys F contactor rated 265 A in AC-3 duty at ≤440 V, switching motor loads up to 132 kW at 380-400 V. It is in end-of-life phase (eol_hot).

Sourcing reality

Schneider flagged this part as eol_hot — end-of-life, hot status.

Control voltage fit

Coil is AC 550-600 V, 40-400 Hz. Holds at 0.85-1.1 Uc, drops out at 0.15-0.2 Uc. Confirm your control circuit voltage before specifying.

Selection note

At 380-400 V that equates to 132 kW; at 415 V it supports 140 kW. Panel footprint: 8.0 in high, 7.9 in wide, 8.4 in deep. Plate mounted.
