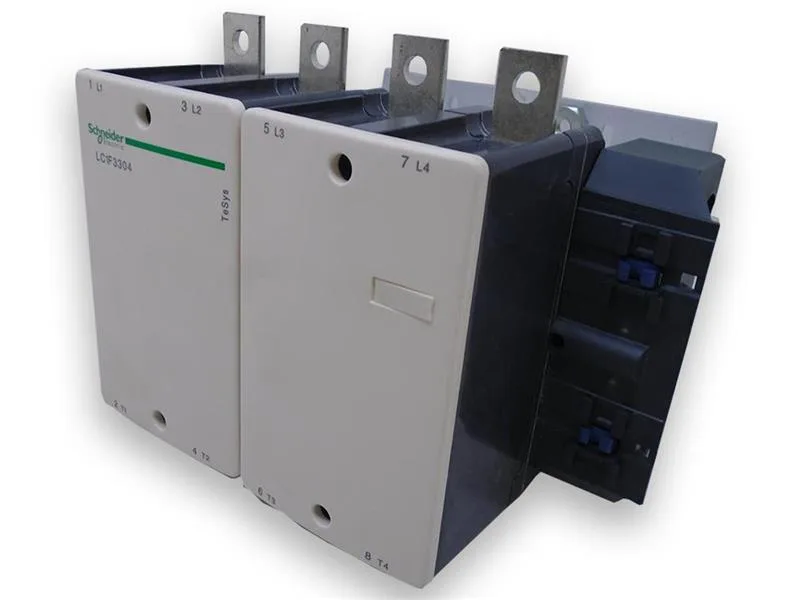

Schneider Electric LC1F3304
MPNLC1F3304
Obsolete
LC1F3304 - 600VAC by SCHNEIDER ELECTRIC
$1,143.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Contactor |
| Coil voltage | 24...1000 V AC 40...400 Hz with LX1/LX9 coil 24...460 V DC with LX4 coil 100...250 V AC 50/60 Hz with LXE coil 100...380 V DC with LXE coil |
| Voltage | 1000 V IEC 60947-4-1 1500 V VDE 0110 group C |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil Drop-out: 0.35...0.55 Uc AC 40...400 Hz with LX1/LX9 coil Operational: 0.85...1.1 Uc DC with LX4 coil Drop-out: 0.15...0.2 Uc DC with LX4 coil Operational: 85...275 V AC 50/60 Hz with LXE coil Drop-out: 0...60 V AC 50/60 Hz with LXE coil Operational: 85...418 V DC with LXE coil Drop-out: 0...45 V DC with LXE coil |
| [Ue] rated operational voltage | <= 460 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand current | 2650 A 104 °F (40 °C) - 10 s 1800 A 104 °F (40 °C) - 30 s 1300 A 104 °F (40 °C) - 1 min 900 A 104 °F (40 °C) - 3 min 750 A 104 °F (40 °C) - 10 min |
| Breaking capacity | 2640 A conforming to IEC 60947-4-1 |
| [Ie] rated operational current | 400 A 104 °F (40 °C)) <= 440 V AC AC-1 |
| [Ith] conventional free air thermal current | 400 A (at 104 °F (40 °C)) |
| Inrush power in | 600...700 VA, 40...400 Hz cos phi 0.9 (at 68 °F (20 °C))with LX1/LX9 coil 655...803 VA (at 68 °F (20 °C))with LX4 coil 300...350 VA, 50/60 Hz cos phi 0.5 (at 68 °F (20 °C))with LXE coil 300...310 VA (at 68 °F (20 °C))with LXE coil |
| Power dissipation per pole | 44 W AC-1 |
All specifications
| Parameter | Value |
|---|---|
| Power pole contact composition | 4 NO |
| Hold-in power consumption in | 8...10 VA, 40...400 Hz cos phi 0.9 (at 68 °F (20 °C))with LX1/LX9 coil 3.68...4.53 VA (at 68 °F (20 °C))with LX4 coil 4.5...7.0 VA, 50/60 Hz cos phi 0.5 (at 68 °F (20 °C))with LXE coil 2.5...4.0 VA (at 68 °F (20 °C))with LXE coil |
| Poles description | 4P |
| Utilisation category | AC-1 |
| IP degree of protection | IP20 front face with shrouds IEC 60529 IP20 front face with shrouds VDE 0106 |
| Mounting support | Plate |
| Connections - terminals | Power circuit lugs-ring terminals 1 0.4 in² (240 mm²) Power circuit bar 2 30 x 5 mm Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.002...0.006 in² (1...4 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)flexible with cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)solid without cable end Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) Control circuit screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) Control circuit screw clamp terminals 1.0 0.0003...0.004 in² (0.2...2.5 mm²)flexible without cable end Control circuit screw clamp terminals 1.0 0.0004...0.004 in² (0.25...2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1.0 0.0003...0.004 in² (0.2...2.5 mm²)solid without cable end |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Depth | 8.6 in (219 mm) |
| Width | 10.3 in (261 mm) |
| Height | 8.1 in (206 mm) |
| Mechanical durability | 10 Mcycles |
| Standards | IEC 60947-4-1 JIS C8201-4-1 EN 60947-1 IEC 60947-1 EN 60947-4-1 |
| Range | TeSys |
| Category | US10I1222336 |
| Operating time | 40...65 ms closing with LX1/LX9 coil 100...170 ms opening with LX1/LX9 coil 40...50 ms closing with LX4 coil 40...65 ms opening with LX4 coil 40...80 ms closing with LXE coil 6...54 ms opening with LXE coil |
| Heat dissipation | 8 W 2.2...5.5 W |
| Average impedance | 0.28 mOhm - Ith 400 A 50 Hz |
| Device short name | LC1F |
| Tightening torque | Power circuit 309.8 lbf.in (35 N.m) Control circuit 10.6 lbf.in (1.2 N.m) Control circuit 5.3 lbf.in (0.6 N.m) |
| Compatibility code | LC1F |
| Overvoltage category | III |
| Protective treatment | TH |
| Contactor application | Resistive load |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed5 Gn, 5...300 Hz Shocks contactor open6 Gn for 1/2 sine wave (11 ms) Shocks contactor closed15 Gn for 1/2 sine wave (11 ms) |
| Associated fuse rating | 400 A aM at 500 A gG at <= 440 V |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Irms rated making capacity | 3300 A AC conforming to IEC 60947-4-1 |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
| Permissible ambient air temperature around the device | -40...158 °F (-40...70 °C) |
MPN
LC1F3304
