Schneider Electric LC1F400P7

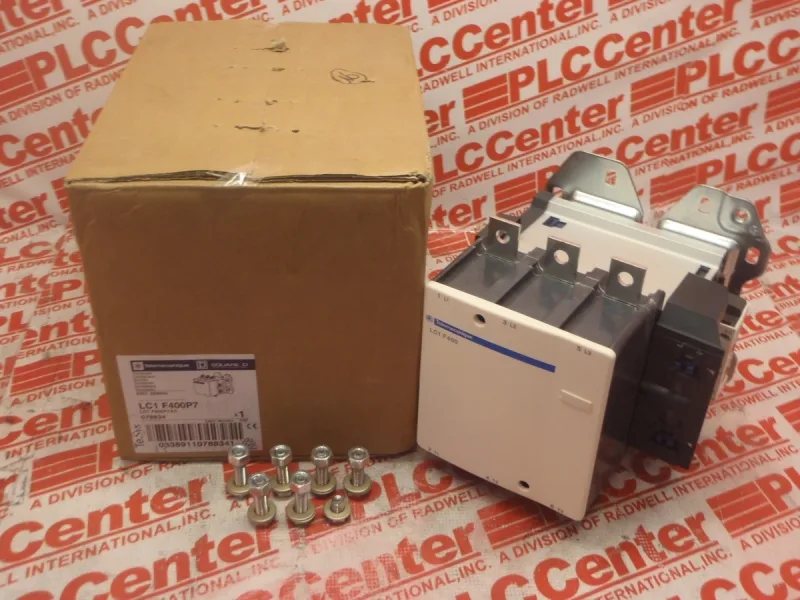

Schneider LC1F400P7 TeSys F contactor, 500 A, 3-pole

MPNLC1F400P7
Obsolete

Schneider Electric TeSys F LC1F400P7 contactor, 3-pole, 500 A switching current, 230 V AC coil, 460 V supply, AC-1/AC-3/AC-4 utilization, IP20 front face, plate mount, marine certifications.

$764.54Ref. price · indicative, final on quote
Schneider Electric LC1F400P7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

LC1F400P7 key specifications
ParameterValue
Range of productTeSys F
Motor starter typeDirect on-line contactor
Control circuit typeAC 40...400 Hz
Product or component typeContactor
Contactor coil voltage230 V AC standard
Coil voltage230 V AC 40...400 Hz
Voltage1000 V IEC 60947-4-1 1500 V VDE 0110 group C
Control circuit voltage limitsOperational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) Drop-out 0.3...0.5 Uc 40...400 Hz 131 °F (55 °C))
[Ue] rated operational voltage<= 460 V DC
[Uimp] rated impulse withstand voltage8 kV
[Icw] rated short-time withstand current3600 A 104 °F (40 °C) - 10 s 2400 A 104 °F (40 °C) - 30 s 1700 A 104 °F (40 °C) - 1 min 1200 A 104 °F (40 °C) - 3 min 1000 A 104 °F (40 °C) - 10 min
Breaking capacity3200 A conforming to IEC 60947-4-1

All specifications

LC1F400P7 additional specifications
ParameterValue
[Ie] rated operational current500 A (at 400 A (at <131 °F (55 °C)) at <= 440 V AC AC-3
[Ith] conventional free air thermal current500 A (at 104 °F (40 °C))
Motor power75 kW at 400 V AC 50/60 Hz (AC-4) 200 kW at 380...400 V AC 50/60 Hz (AC-3) 220 kW at 415 V AC 50/60 Hz (AC-3) 250 kW at 440 V AC 50/60 Hz (AC-3) 257 kW at 500 V AC 50/60 Hz (AC-3) 280 kW at 660...690 V AC 50/60 Hz (AC-3) 185 kW at 1000 V AC 50/60 Hz (AC-3) 110 kW at 220...230 V AC 50/60 Hz (AC-3)
Motor power range110...220 kW 480...500 V 3 phase 110...220 kW 380...440 V 3 phase 110...220 kW 200...240 V 3 phase 250...500 kW 480...500 V 3 phase
Inrush power in1075 VA, 40...400 Hz 0.9 68 °F (20 °C))
Power dissipation per pole65 W AC-1 42 W AC-3
Power pole contact composition3 NO
Hold-in power consumption in15 VA, 40...400 Hz 0.9 68 °F (20 °C))
Poles description3P
Utilisation categoryAC-1 AC-3 AC-4
IP degree of protectionIP20 front face with shrouds IEC 60529 IP20 front face with shrouds VDE 0106
Mounting supportPlate
Connections - terminalsControl circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.002...0.006 in² (1...4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)flexible with cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)solid without cable end Control circuit screw clamp terminals 2 0.002...0.006 in² (1...4 mm²)solid without cable end Power circuit bar 2 30 x 5 mm Power circuit lugs-ring terminals 2 0.2 in² (150 mm²) Power circuit bolted connection
Operating altitude9842.52 ft (3000 m) without derating
Depth8.6 in (219 mm)
Width8.4 in (213 mm)
Height8.1 in (206 mm)
Mechanical durability10 Mcycles
StandardsEN 60947-1 EN 60947-4-1 IEC 60947-1 IEC 60947-4-1 JIS C8201-4-1
RangeTeSys
CategoryUS10I1222336
Operating time40...65 ms closing 100...170 ms opening
Heat dissipation14 W
Average impedance0.26 mOhm - Ith 500 A 50 Hz
Device short nameLC1F
Tightening torqueControl circuit 10.6 lbf.in (1.2 N.m) Power circuit 309.8 lbf.in (35 N.m)
Compatibility codeLC1F
Overvoltage categoryIII
Protective treatmentTH
Contactor applicationMotor control Resistive load
Associated fuse rating400 A aM at 500 A gG at <= 440 V
Maximum operating rate2400 cyc/h 131 °F (55 °C)
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation23...131 °F (-5...55 °C)
Permissible ambient air temperature around the device-40...158 °F (-40...70 °C)

Product details

Overview

The LC1F400P7 is a Schneider TeSys F direct-on-line contactor rated for 500 A switching current across AC-1, AC-3, and AC-4 duty classes, with a 230 V AC control coil and a 460 V supply. Its 3-pole configuration and 65 W AC-1 / 42 W AC-3 power dissipation suit heavy motor and resistive loads, while marine certifications (ABS, BV, DNV, LROS) qualify it for shipboard and offshore panels.

Against the smaller TeSys D LC1D150M7 (200 A switching current), the LC1F400P7 carries 500 A — a 300 A delta — and adds AC-4 capability for plugging and inching duty that the LC1D150M7 does not list.

MPN
LC1F400P7
