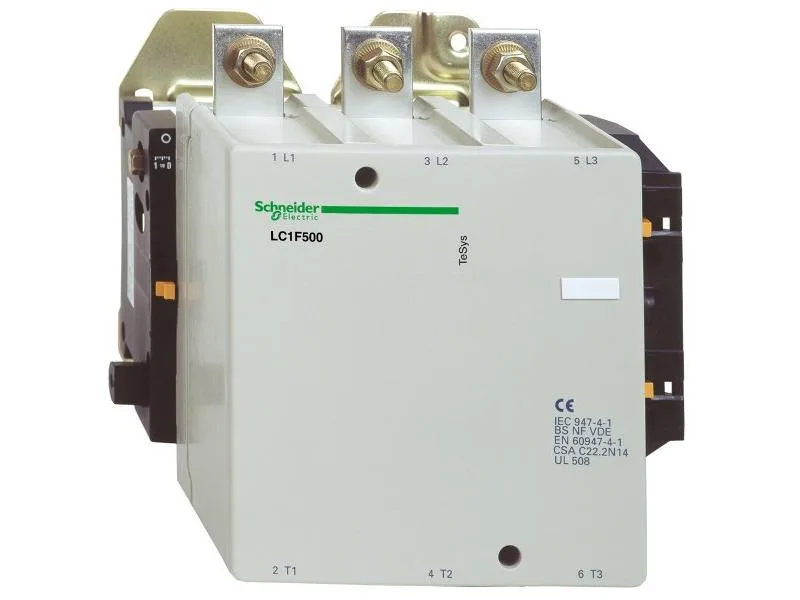

Schneider Electric LC1F500P7
MPNLC1F500P7
Obsolete
LC1F500P7 by SCHNEIDER ELECTRIC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys F |
| Motor starter type | Direct on-line contactor |
| Control circuit type | AC at 40...400 Hz |
| Product or component type | Contactor |
| Contactor coil voltage | 230 V AC standard |
| Coil voltage | 230 V AC 40...400 Hz |
| Voltage | 1000 V conforming to IEC 60947-4-1 1500 V conforming to VDE 0110 group C |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C) |
| [Ue] rated operational voltage | <= 460 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand current | 4200 A 40 °C - 10 s 3200 A 40 °C - 30 s 2400 A 40 °C - 1 min 1500 A 40 °C - 3 min 1200 A 40 °C - 10 min |
| Breaking capacity | 4000 A conforming to IEC 60947-4-1 |
All specifications
| Parameter | Value |
|---|---|
| [Ie] rated operational current | 700 A (at 500 A (at <55 °C) at <= 440 V AC AC-3 |
| [Ith] conventional free air thermal current | 700 A (at 40 °C) |
| Motor power | 250 kW at 380...400 V AC 50/60 Hz (AC-3) 280 kW at 415 V AC 50/60 Hz (AC-3) 295 kW at 440 V AC 50/60 Hz (AC-3) 355 kW at 500 V AC 50/60 Hz (AC-3) 335 kW at 660...690 V AC 50/60 Hz (AC-3) 335 kW at 1000 V AC 50/60 Hz (AC-3) 147 kW at 220...230 V AC 50/60 Hz (AC-3) 80 kW at 400 V AC 50/60 Hz (AC-4) |
| Motor power range | 250...500 kW at 380...440 V 3 phases 110...220 kW at 380...440 V 3 phases 110...220 kW at 200...240 V 3 phases 250...500 kW at 480...500 V 3 phases |
| Inrush power in | 1100 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Power dissipation per pole | 88 W AC-1 45 W AC-3 |
| Power pole contact composition | 3 NO |
| Hold-in power consumption in | 18 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Poles description | 3P |
| Utilisation category | AC-1 AC-4 AC-3 |
| IP degree of protection | IP20 front face with shrouds conforming to IEC 60529 IP20 front face with shrouds conforming to VDE 0106 |
| Mounting support | Plate |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1...4 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1...4 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1...4 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1...4 mm²solid without cable end Power circuit: bar 2 cable(s) - busbar cross section: 40 x 5 mm Power circuit: lugs-ring terminals 2 cable(s) 240 mm² Power circuit: bolted connection |
| Operating altitude | 3000 m without derating |
| Depth | 232 mm |
| Width | 233 mm |
| Height | 238 mm |
| Product weight | 11.35 kg |
| Mechanical durability | 10 Mcycles |
| Standards | IEC 60947-4-1 JIS C8201-4-1 EN 60947-1 IEC 60947-1 EN 60947-4-1 |
| Range | TeSys |
| Operating time | 40...65 ms closing 100...170 ms opening |
| Heat dissipation | 18 W |
| Average impedance | 0.18 mOhm - Ith 700 A 50 Hz |
| Device short name | LC1F |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 35 N.m |
| Compatibility code | LC1F |
| Overvoltage category | III |
| Protective treatment | TH |
| Contactor application | Motor control Resistive load |
| Associated fuse rating | 500 A aM at 800 A gG at <= 440 V |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Ambient air temperature for storage | -60...80 °C |
| Ambient air temperature for operation | -5...55 °C |
| Permissible ambient air temperature around the device | -40...70 °C |
MPN
LC1F500P7
