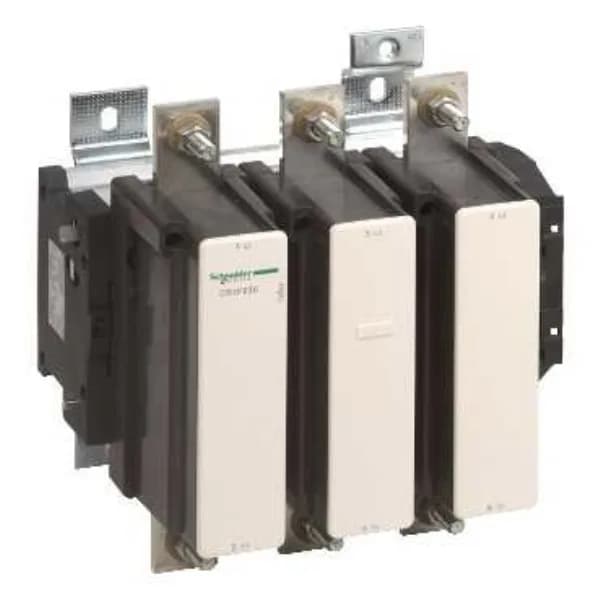

Schneider Electric LC1F800
MPNLC1F800
Obsolete
Contactor, TeSys, F, 800A, 3P, 110-440V AC/DC, Normally Open|Contactor, TeSys, F, 800 Amp, 3-Pole, 100 - 250 Volt AC, 110 - 440 Volt AC/DC, Normally Open Contacts
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Contactor |
| Coil voltage | 110...400 V AC 40...400 Hz with LX1/LX9 coil 110...400 V DC with LX4 coil 100...250 V AC 50/60 Hz with LXE coil 100...380 V DC with LXE coil |
| Voltage | 1000 V IEC 60947-4-1 1500 V VDE 0110 group C |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil Drop-out: 0.3...0.5 Uc AC 40...400 Hz with LX1/LX9 coil Operational: 0.85...1.1 Uc DC with LX4 coil Drop-out: 0.3...0.5 Uc DC with LX4 coil Operational: 85...275 V AC 50/60 Hz with LXE coil Drop-out: 0...60 V AC 50/60 Hz with LXE coil Operational: 85...418 V DC with LXE coil Drop-out: 0...45 V DC with LXE coil |
| [Ue] rated operational voltage | <= 460 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand current | 2600 A 104 °F (40 °C) - 3 min 5500 A 104 °F (40 °C) - 10 s 4600 A 104 °F (40 °C) - 30 s 3600 A 104 °F (40 °C) - 1 min 1700 A 104 °F (40 °C) - 10 min |
| Breaking capacity | 6400 A conforming to IEC 60947-4-1 |
| [Ie] rated operational current | 1000 A 104 °F (40 °C)) 800 A 131 °F (55 °C)) <= 440 V AC AC-3 |
| [Ith] conventional free air thermal current | 1000 A (at 104 °F (40 °C)) |
| Motor power | 450 kW at 1000 V AC 50/60 Hz (AC-3) 450 kW at 500 V AC 50/60 Hz (AC-3) 475 kW at 660...690 V AC 50/60 Hz (AC-3) 110 kW at 400 V AC 50/60 Hz (AC-4) 450 kW at 380...400 V AC 50/60 Hz (AC-3) 450 kW at 415 V AC 50/60 Hz (AC-3) 450 kW at 440 V AC 50/60 Hz (AC-3) 250 kW at 220...240 V AC 50/60 Hz (AC-3) |
| Inrush power in | 1700 VA, 40...400 Hz cos phi 0.9 (at 68 °F (20 °C))with LX1/LX9 coil 1900 VA (at 68 °F (20 °C))with LX4 coil 460...730 VA, 50/60 Hz cos phi 0.5 (at 68 °F (20 °C))with LXE coil 500...680 VA cos phi 0.5 (at 68 °F (20 °C))with LXE coil |
All specifications
| Parameter | Value |
|---|---|
| Power dissipation per pole | 120 W AC-1 77 W AC-3 |
| Power pole contact composition | 3 NO |
| Hold-in power consumption in | 12 VA, 40...400 Hz cos phi 0.9 (at 68 °F (20 °C))with LX1/LX9 coil 12 VA (at 68 °F (20 °C))with LX4 coil 7...10 VA, 50/60 Hz cos phi 0.5 (at 68 °F (20 °C))with LXE coil 4.0...5.5 VA cos phi 0.5 (at 68 °F (20 °C))with LXE coil |
| Poles description | 3P |
| Utilisation category | AC-3 AC-1 AC-4 |
| IP degree of protection | IP20 front face with shrouds IEC 60529 IP20 front face with shrouds VDE 0106 |
| Mounting support | Plate |
| Connections - terminals | Power circuit bar 2 60 x 5 mm Power circuit bolted connection Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.002...0.006 in² (1...4 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²)flexible with cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)solid without cable end Control circuit screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) Control circuit screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Depth | 10.04 in (255 mm) |
| Width | 12.2 in (309 mm) |
| Height | 12.0 in (304 mm) |
| Mechanical durability | 5 Mcycles |
| Standards | IEC 60947-1 JIS C8201-4-1 EN 60947-1 IEC 60947-4-1 EN 60947-4-1 |
| Range | TeSys |
| Category | US10I1222336 |
| Operating time | 60...80 ms closing with LX1/LX9 coil 160...180 ms opening with LX1/LX9 coil 60...80 ms closing with LX4 coil 40...50 ms opening with LX4 coil 40...80 ms closing with LXE coil 6...54 ms opening with LXE coil |
| Heat dissipation | 25 W 2.2...5.5 W |
| Average impedance | 0.12 mOhm - Ith 1000 A 50 Hz |
| Device short name | LC1F |
| Tightening torque | Power circuit 513.3 lbf.in (58 N.m) Control circuit 10.6 lbf.in (1.2 N.m) |
| Compatibility code | LC1F |
| Overvoltage category | III |
| Protective treatment | TH |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor open6 Gn for 1/2 sine wave (11 ms) Shocks contactor closed15 Gn for 1/2 sine wave (11 ms) |
| Associated fuse rating | 1000 A gG at 800 A aM at <= 440 V |
| Maximum operating rate | 600 cyc/h 131 °F (55 °C) |
| Irms rated making capacity | 8000 A AC conforming to IEC 60947-4-1 |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
| Permissible ambient air temperature around the device | 23...131 °F (-5...55 °C) |
MPN
LC1F800
