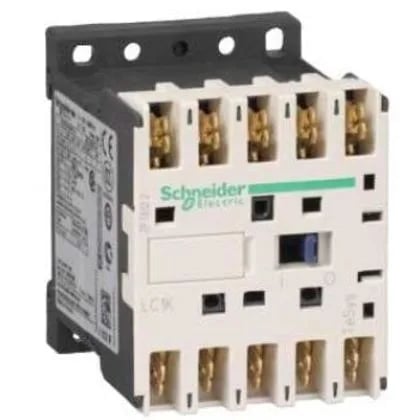

Schneider Electric LC1K090087U7
MPNLC1K090087U7
Obsolete
LC1K090087U7 by SQUARE D
$99.39Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys K |
| Control circuit type | AC 50/60 Hz |
| Product or component type | Contactor |
| Coil voltage | 230...240 V AC 50/60 Hz |
| Voltage | Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA C22.2 No 14 |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc (at Drop-out: 0.2...0.75 Uc (at <122 °F (50 °C)) |
| [Ue] rated operational voltage | Power circuit 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Breaking capacity | 110 A at 415 V conforming to IEC 60947 110 A at 440 V conforming to IEC 60947 80 A at 500 V conforming to IEC 60947 110 A at 220...230 V conforming to IEC 60947 110 A at 380...400 V conforming to IEC 60947 70 A at 660...690 V conforming to IEC 60947 |
| [Ie] rated operational current | 20 A (at 16 A (at <158 °F (70 °C)) at 690 V AC AC-1 for power circuit |
| [Ith] conventional free air thermal current | 20 A (at 122 °F (50 °C)) for power circuit |
| Inrush power in | 30 VA (at 68 °F (20 °C)) |
All specifications
| Parameter | Value |
|---|---|
| Hold-in power consumption in | 4.5 VA (at 68 °F (20 °C)) |
| Poles description | 4P |
| Pole contact composition | 2 NO + 2 NC |
| Utilisation category | AC-1 |
| IP degree of protection | IP2X VDE 0106 |
| Mounting support | Plate Rail |
| Connections - terminals | Faston terminals 2 2.8 mm Faston terminals 1 6.35 mm |
| Operating altitude | 6561.68 ft (2000 m) without derating |
| Depth | 2.2 in (57 mm) |
| Width | 1.8 in (45 mm) |
| Height | 2.3 in (58 mm) |
| Mechanical durability | 10 Mcycles |
| Standards | EN/IEC 60947-4-1 GB/T 14048.4 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 |
| Range | TeSys |
| Category | US10I1222326 |
| Operating time | 10...20 ms coil de-energisation and NO opening 10...20 ms coil energisation and NO closing 15...25 ms coil de-energisation and NC closing 5...15 ms coil energisation and NC opening |
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Heat dissipation | 1.3 W |
| Average impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Device short name | LC1K |
| Overvoltage category | III |
| Protective treatment | TC IEC 60068 TC DIN 50016 |
| Contactor application | Resistive load |
| Associated fuse rating | 25 A gG at 25 A aM for power circuit |
| Maximum operating rate | 3600 cyc/h |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Irms rated making capacity | 110 A AC for power circuit conforming to NF C 63-110 110 A AC for power circuit conforming to IEC 60947 |
| Ambient air temperature for storage | -58...176 °F (-50...80 °C) |
