Schneider Electric LC1K12004F7

Schneider Electric LC1K12004F7

MPNLC1K12004F7
Obsolete

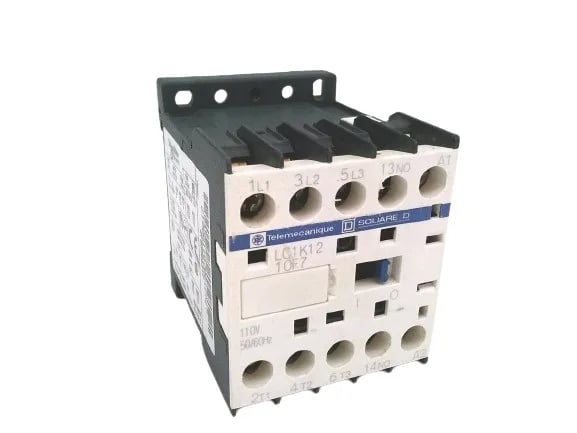

LC1K12004F7 - CONTACTOR by TELEMECANIQUE

$30.48Ref. price · indicative, final on quote
Schneider Electric LC1K12004F7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1K12004F7 key specifications
ParameterValue
Control circuit typeAC at 50/60 Hz
Product or component typeContactor
Coil voltage110 V AC 50/60 Hz
Control circuit voltage limitsOperational: 0.8...1.15 Uc (at Drop-out: >= 0.20 Uc (at <50 °C)
[Ue] rated operational voltagePower circuit: Signalling circuit: <= 690 V AC <= 400 Hz
[Uimp] rated impulse withstand voltage8 kV
[Icw] rated short-time withstand current115 A 50 °C - 1 s for power circuit 105 A 50 °C - 5 s for power circuit 100 A 50 °C - 10 s for power circuit 75 A 50 °C - 30 s for power circuit 55 A 50 °C - 1 min for power circuit 50 A 50 °C - 3 min for power circuit 25 A 50 °C - >= 15 min for power circuit
Breaking capacity110 A at 440 V conforming to IEC 60947 80 A at 500 V conforming to IEC 60947 70 A at 660...690 V conforming to IEC 60947
[Ie] rated operational current20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit
[Ith] conventional free air thermal current20 A (at 60 °C) for power circuit 10 A (at 50 °C) for signalling circuit
Inrush power in30 VA (at 20 °C)
Power pole contact composition4 NO

All specifications

LC1K12004F7 additional specifications
ParameterValue
Hold-in power consumption in4.5 VA (at 20 °C)
Signalling circuit frequency<= 400 Hz
Poles description4P
Utilisation categoryAC-1
Connections - terminalsScrew clamp terminals 1 cable(s) 1.5...4 mm²solid Screw clamp terminals 1 cable(s) 0.75...4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.34...2.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 1.5...4 mm²solid Screw clamp terminals 2 cable(s) 0.75...4 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.34...1.5 mm²flexible with cable end
Operating altitude2000 m without derating
Depth57 mm
Width45 mm
Height58 mm
Electrical durability0.3 Mcycles 20 A AC-1 at Ue <= 690 V
Mechanical durability10 Mcycles
StandardsEN/IEC 60947-4-1 GB/T 14048.4 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
RangeTeSys
Operating time10...20 ms coil de-energisation and NO opening 10...20 ms coil energisation and NO closing
Coil technologyWithout built-in suppressor module
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
Heat dissipation1.3 W
Average impedance3 mOhm - Ith 20 A 50 Hz for power circuit
Device short nameLC1K
Device applicationControl
Overvoltage categoryIII
Protective treatmentTC conforming to IEC 60068 TC conforming to DIN 50016
Contactor applicationResistive load
Mechanical robustnessShocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Associated fuse rating25 A gG at 25 A aM for power circuit
Maximum operating rate3600 cyc/h
Safety reliability levelB10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Irms rated making capacity144 A AC for power circuit conforming to IEC 60947
MPN
LC1K12004F7
