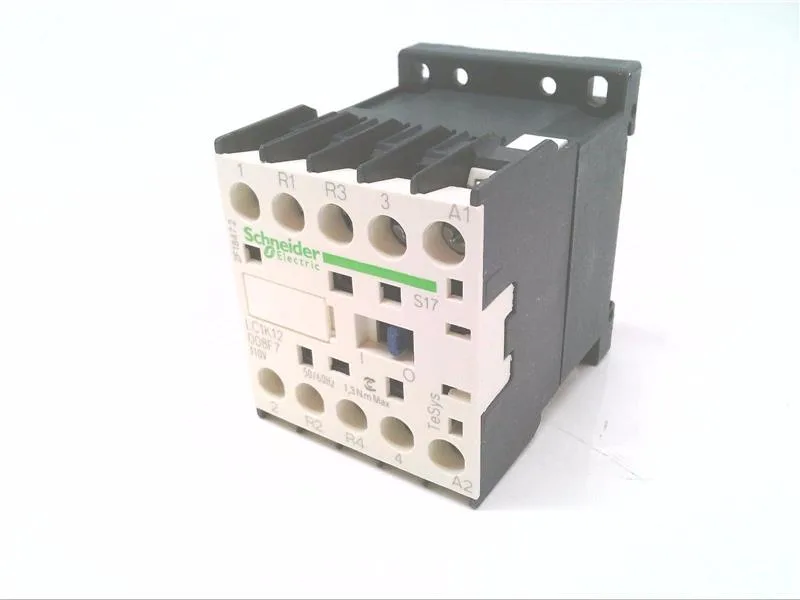

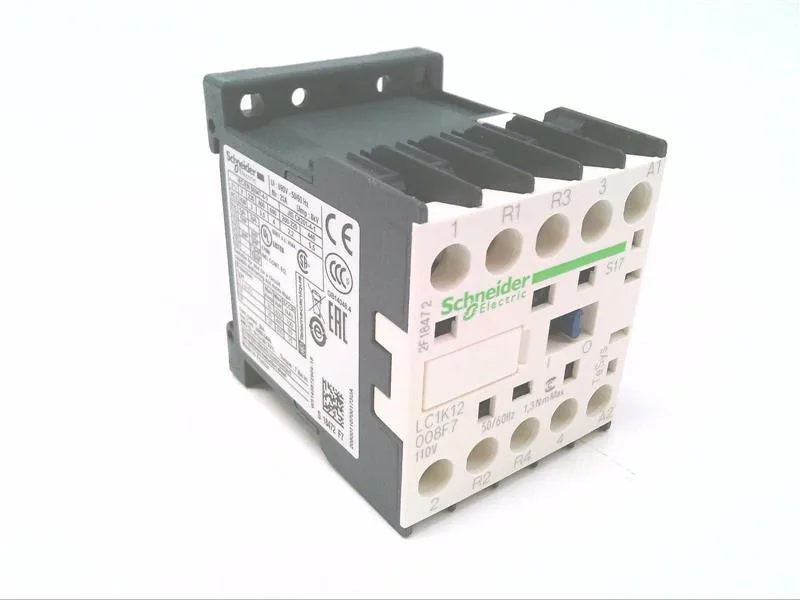

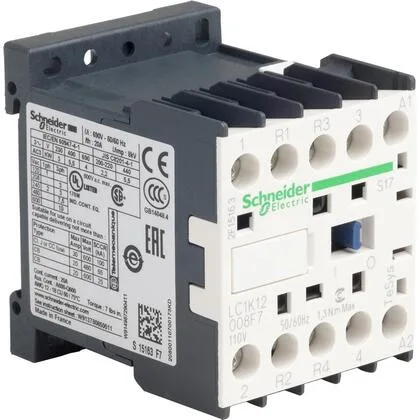

Schneider Electric LC1K12008F7S17
MPNLC1K12008F7S17
CONTACTOR 575VAC 12AMP IEC + OPTIONS|CONTACTOR 575VAC 12AMP IEC + OPTIONS
$114.09 – $260.93Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | NON REVERSING |
| Coil voltage | 110 VAC AT 50/60 HZ |
| Power rating (Voltage) | 0.5 HP AT 115 VAC, 1.5 HP AT 230 VAC 1 PHASE; 3 HP AT 200/230 VAC, 7.5 HP AT 460 VAC, 10 HP AT 575 VAC 3 PHASE |
| Poles | 4 |
| Enclosure | OPEN |
| Approval | UL, CSA, CE |
| Construction standard | IEC |
| Model | LC1K |
| Category | Iec Contactors |
| Manufacturer | Square D Co. |
| Sub-Category | Magnetic Contactor |
| Prop 65 warning | WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING: ANTIMONY OXIDE & ANTIMONY TRIOXIDE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV |
| Inductive ampere | 12 AMPERE (AC-3) |
| Resistive ampere | 20 AMPERE (AC-1) |
| Manufacturer brand | Square D Co. |
| Product description | Square D LC1K12008F7S17 Contactor 575VAC 12Amp Iec + Options |
| Full technical description | Non-Reversing Type; Rail, Plate Mounting; 20 Amp Current Rating; 4 Pole(S); IEC Construction Standard; 110 Volt AC 50/60 Hertz Coil Voltage; 0.5 HP at 115 Volt AC, 1.5 HP at 230 Volt AC 1-Phase, 3 HP at 200/230 Volt AC, 7.5 HP at 460 Volt AC, 10 HP at 575 Volt AC 3-Phase Power Rating/Voltage; Rohs/Reach Compliant; LC1K Model |
| Proposition 65 warning | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov |
MPN
LC1K12008F7S17
