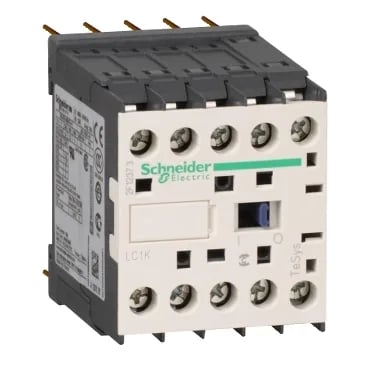

Schneider Electric LC1K12105G7
MPNLC1K12105G7
Active
TeSys K contactor, 3P, AC-3 <= 440 V 12 A, 1 NO aux., 120 V AC coil
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys K |
| Product or component type | Contactor |
| [Icw] rated short-time withstand current | 115 A 122 °F (50 °C) - 1 s for power circuit 105 A 122 °F (50 °C) - 5 s for power circuit 100 A 122 °F (50 °C) - 10 s for power circuit 75 A 122 °F (50 °C) - 30 s for power circuit 55 A 122 °F (50 °C) - 1 min for power circuit 50 A 122 °F (50 °C) - 3 min for power circuit 80 A - 1 s for signalling circuit 90 A - 500 ms for signalling circuit 110 A - 100 ms for signalling circuit 25 A 122 °F (50 °C) - >= 15 min for power circuit |
| [Ie] rated operational current | 20 A (at 12 A at 16 A (at 10 MOhm for signalling circuit |
| Motor power | 4 kW 480 V AC 50/60 Hz 4 kW 500...600 V AC 50/60 Hz 4 kW 660...690 V AC 50/60 Hz 3 kW 220...230 V AC 50/60 Hz 5.5 kW 380...415 V AC 50/60 Hz 5.5 kW 440 V AC 50/60 Hz |
| Poles description | 3P |
| Pole contact composition | 3 NO |
| Utilisation category | AC-4 AC-3 AC-1 |
| Depth | 2.2 in (57 mm) |
| Width | 1.8 in (45 mm) |
| Height | 2.3 in (58 mm) |
| Range | TeSys |
| Category | 22326-CTR,K-LINE,AC,OPEN,NONREV |
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Heat dissipation | 1.3 W |
| Device short name | LC1K |
| Compatibility code | LC1K |
| Device application | Control |
