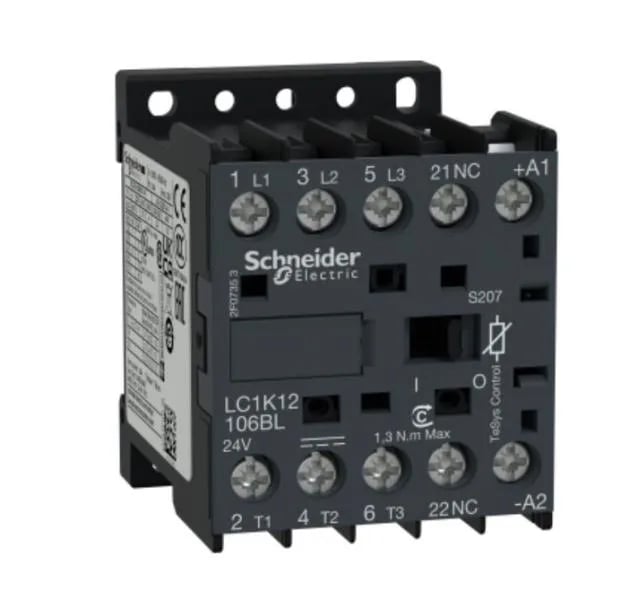

Schneider Electric LC1K12106BLS207
MPNLC1K12106BLS207
Obsolete
LC1K12106BLS207 - 3 POLE by SQUARE D
$30.48Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Auxiliary contacts type | type instantaneous 1 NO |
| Product or component type | Contactor |
| Minimum switching voltage | 17 V for signalling circuit |
| Control circuit voltage limits | Operational: 0.7...1.3 Uc (at Drop-out: >= 0.10 Uc (at <50 °C) |
| [Ue] rated operational voltage | Power circuit: Signalling circuit: 10 MOhm for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Inrush power in | 1.8 W (at 20 °C) |
| Hold-in power consumption in | 1.8 W at 20 °C |
| Power pole contact composition | 3 NO |
| Signalling circuit frequency | <= 400 Hz |
| Poles description | 3P |
| Utilisation category | AC-3 AC-3e AC-1 AC-4 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 conforming to VDE 0106 |
| Mounting support | Rail Plate |
| Connections - terminals | Power circuit: lugs-ring terminals (external diameter: 7 mm) |
| Operating altitude | 2000 m without derating |
| Depth | 57 mm |
| Width | 45 mm |
| Height | 58 mm |
| Electrical durability | 0.3 Mcycles 20 A AC-1 at Ue 1.3 Mcycles 12 A AC-3 at Ue <= 440 V |
| Mechanical durability | 30 Mcycles |
| Standards | BS 5424 IEC 60947 NF C 63-110 VDE 0660 IEC 60077-1 IEC 60077-2 EN 45545: R22 HL3 EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
| Range | TeSys |
| Operating time | 10...20 ms coil de-energisation and NO opening 30...40 ms coil energisation and NO closing |
| Coil technology | With integral suppression device |
| Flame retardance | V0 conforming to UL 94 |
| Heat dissipation | 1.8 W |
| Device short name | LC1K |
| Tightening torque | Power circuit: 0.8...1.3 N.m - on lugs-ring terminals - with screwdriver 3.2 mm flat Ø 6 mm Power circuit: 0.8...1.3 N.m - on lugs-ring terminals - with screwdriver 3.2 mm Philips No 2 Power circuit: 0.8...1.3 N.m - on lugs-ring terminals pozidriv No 2 |
| Device application | Control |
| Non overlap distance | 0.5 mm |
| Protective treatment | TC conforming to IEC 60068 TC conforming to DIN 50016 |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Maximum operating rate | 3600 cyc/h |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Ambient air temperature for storage | -50...80 °C |
| Permissible ambient air temperature around the device | -40...70 °C at Uc |
