Schneider Electric LC1K1610B7

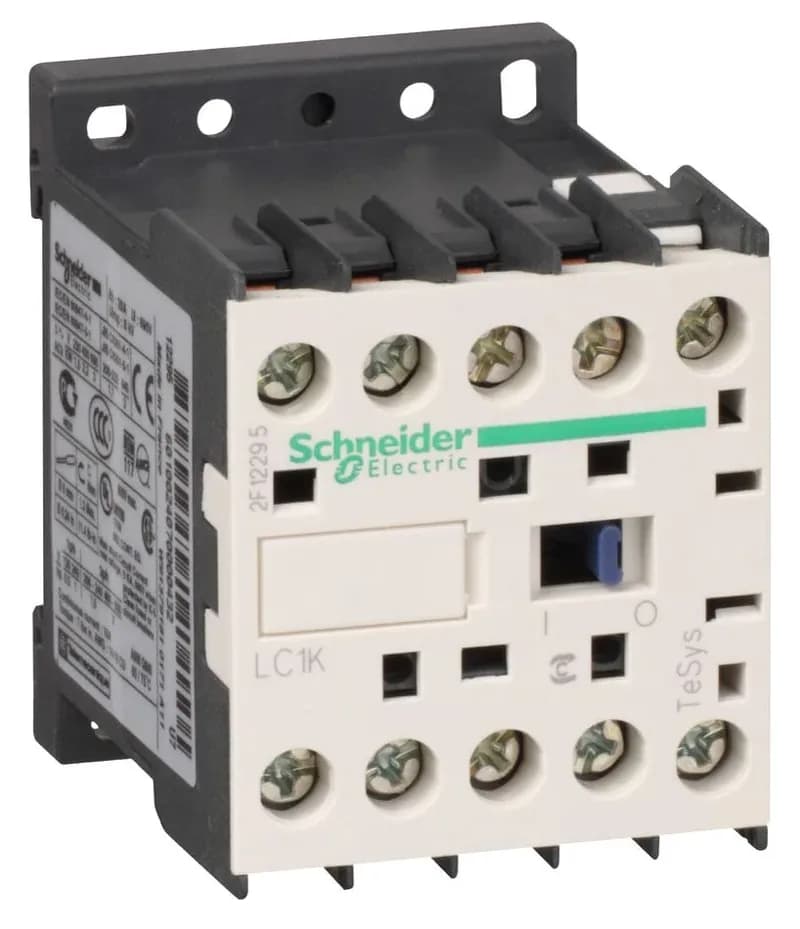

Schneider Electric LC1K1610B7 TeSys K 3-pole contactor, 16A

MPNLC1K1610B7
Active

Schneider Electric TeSys K 3-pole contactor, rated 16 A in AC-3 motor duty, 1 NO auxiliary contact, screw clamp terminals.

$22.86Ref. price · indicative, final on quote
Schneider Electric LC1K1610B7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1K1610B7 key specifications
ParameterValue
Auxiliary contacts typeInstantaneous 1 NO
Product or component typeContactor
Minimum switching voltage17 V for signalling circuit
Control circuit voltage limitsOperational: 0.8...1.15 Uc (at Drop-out: >= 0.20 Uc (at <122 °F (50 °C))
[Ue] rated operational voltagePower circuit Signalling circuit 10 MOhm for signalling circuit
Minimum switching current5 mA for signalling circuit
Inrush power in30 VA (at 68 °F (20 °C))
Power pole contact composition3 NO
Hold-in power consumption in4.5 VA (at 68 °F (20 °C))
Signalling circuit frequency<= 400 Hz
Poles description3P
Utilisation categoryAC-3 AC-3e

All specifications

LC1K1610B7 additional specifications
ParameterValue
IP degree of protectionIP2X VDE 0106
Mounting supportPlate Rail
Connections - terminalsscrew clamp terminals 1 0.002...0.006 in² (1.5...4 mm²)solid screw clamp terminals 1 0.001...0.006 in² (0.75...4 mm²)flexible without cable end screw clamp terminals 1 0.0005...0.004 in² (0.34...2.5 mm²)flexible with cable end screw clamp terminals 2 0.002...0.006 in² (1.5...4 mm²)solid screw clamp terminals 2 0.001...0.006 in² (0.75...4 mm²)flexible without cable end screw clamp terminals 2 0.0005...0.002 in² (0.34...1.5 mm²)flexible with cable end
Operating altitude6561.68 ft (2000 m) without derating
Depth2.2 in (57 mm)
Width1.8 in (45 mm)
Height2.3 in (58 mm)
Electrical durability1.3 Mcycles 16 A AC-3 1.3 Mcycles 16 A AC-3e <= 440 V
Mechanical durability10 Mcycles
StandardsEN/IEC 60947-4-1 GB/T 14048.4 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
RangeTeSys
CategoryUS10I1222326
Operating time10...20 ms coil de-energisation and NO opening 10...20 ms coil energisation and NO closing
Coil technologyWithout built-in suppressor module
Flame retardanceV1 conforming to UL 94
Heat dissipation1.3 W
Device short nameLC1K
Tightening torque7.08...11.5 lbf.in (0.8...1.3 N.m) screw clamp terminals Philips No 2 7.08...11.5 lbf.in (0.8...1.3 N.m) screw clamp terminals flat Ø 6 mm 7.08...11.5 lbf.in (0.8...1.3 N.m) screw clamp terminals pozidriv No 2
Device applicationControl
Non overlap distance0.02 in (0.5 mm)
Protective treatmentTC IEC 60068 TC DIN 50016
Contactor applicationMotor control
Mechanical robustnessShocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
Maximum operating rate3600 cyc/h
Safety reliability levelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Ambient air temperature for storage-58...176 °F (-50...80 °C)
Ambient air temperature for operation-13...122 °F (-25...50 °C)

Product details

The Schneider Electric LC1K1610B7 is a 3-pole TeSys K contactor rated 16 A in AC-3 and AC-3e utilisation categories, so it switches motor loads up to that current. Mechanical durability is 10 Mcycles and electrical durability at full AC-3 rated current is 1.3 Mcycles, which gives a realistic life estimate for repetitive motor starts.

Compact footprint: 2.2 in deep, 1.8 in wide, 2.3 in high (57 x 45 x 58 mm). Mounts on plate or rail per IEC/EN standards. Screw clamp terminals accept 1.5–4 mm² solid or 0.34–2.5 mm² flexible with cable end. IP2X finger protection. Built-in 1 NO auxiliary contact for status feedback or interlocking.

This TeSys K contactor is a current-production SKU rated for AC-3 and AC-3e motor duty.
