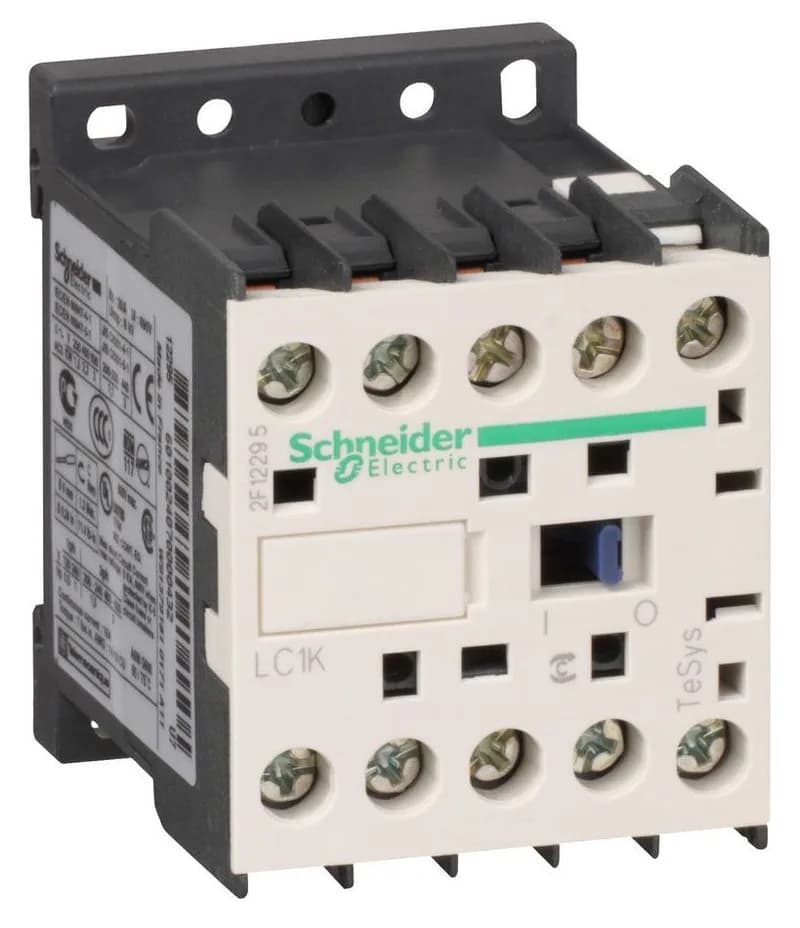

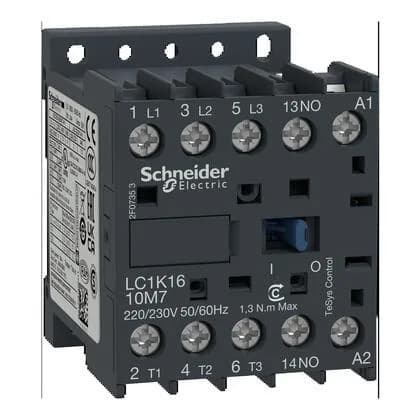

Schneider Electric LC1K1610F7

Schneider LC1K1610F7 TeSys Contactor, 16 A AC-3, 3-Pole, 1 N

MPNLC1K1610F7
Active

Schneider Electric TeSys LC1K1610F7, 3-pole contactor, 16 A AC-3 motor duty, 1 NO auxiliary contact, screw clamp terminals.

$33.02Ref. price · indicative, final on quote
Schneider Electric LC1K1610F7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1K1610F7 key specifications
ParameterValue
Auxiliary contacts typeInstantaneous 1 NO
Product or component typeContactor
Minimum switching voltage17 V for signalling circuit
Control circuit voltage limitsOperational: 0.8...1.15 Uc (at Drop-out: >= 0.20 Uc (at <122 °F (50 °C))
[Ue] rated operational voltagePower circuit Signalling circuit 10 MOhm for signalling circuit
Minimum switching current5 mA for signalling circuit
Inrush power in30 VA (at 68 °F (20 °C))
Power pole contact composition3 NO
Hold-in power consumption in4.5 VA (at 68 °F (20 °C))
Signalling circuit frequency<= 400 Hz
Poles description3P
Utilisation categoryAC-3 AC-3e

All specifications

LC1K1610F7 additional specifications
ParameterValue
IP degree of protectionIP2X VDE 0106
Mounting supportRail Plate
Connections - terminalsscrew clamp terminals 1 0.002...0.006 in² (1.5...4 mm²)solid screw clamp terminals 1 0.001...0.006 in² (0.75...4 mm²)flexible without cable end screw clamp terminals 1 0.0005...0.004 in² (0.34...2.5 mm²)flexible with cable end screw clamp terminals 2 0.002...0.006 in² (1.5...4 mm²)solid screw clamp terminals 2 0.001...0.006 in² (0.75...4 mm²)flexible without cable end screw clamp terminals 2 0.0005...0.002 in² (0.34...1.5 mm²)flexible with cable end
Operating altitude6561.68 ft (2000 m) without derating
Depth2.2 in (57 mm)
Width1.8 in (45 mm)
Height2.3 in (58 mm)
Electrical durability1.3 Mcycles 16 A AC-3 1.3 Mcycles 16 A AC-3e <= 440 V
Mechanical durability10 Mcycles
StandardsEN/IEC 60947-4-1 GB/T 14048.4 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
RangeTeSys
CategoryUS10I1222326
Operating time10...20 ms coil de-energisation and NO opening 10...20 ms coil energisation and NO closing
Coil technologyWithout built-in suppressor module
Flame retardanceV1 conforming to UL 94
Heat dissipation1.3 W
Device short nameLC1K
Tightening torque7.08...11.5 lbf.in (0.8...1.3 N.m) screw clamp terminals Philips No 2 7.08...11.5 lbf.in (0.8...1.3 N.m) screw clamp terminals flat Ø 6 mm 7.08...11.5 lbf.in (0.8...1.3 N.m) screw clamp terminals pozidriv No 2
Device applicationControl
Non overlap distance0.02 in (0.5 mm)
Protective treatmentTC IEC 60068 TC DIN 50016
Contactor applicationMotor control
Mechanical robustnessShocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
Maximum operating rate3600 cyc/h
Safety reliability levelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Ambient air temperature for storage-58...176 °F (-50...80 °C)
Ambient air temperature for operation-13...122 °F (-25...50 °C)

Product details

What this contactor does and how it fits

The LC1K1610F7 is a TeSys K-frame contactor, rated for motor control in AC-3 and AC-3e utilisation categories. Three NO power poles handle up to 16 A; a built-in 1 NO auxiliary contact gives you a feedback signal without an add-on block. Mechanical life is rated at 10 million cycles, electrical durability at 1.3 million cycles under full load at 16 A AC-3. Coil hold-in power draws 4.5 VA, inrush 30 VA, with 1.3 W dissipation. Operate time (NO closing) is 10 to 20 ms; the same range for drop-out and NO opening. Minimum switched signal is 5 mA at 17 V for reliable dry-circuit indication.

Production status and compliance

Designed to EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, and JIS C8201-4-1. Also compliant with IEC 60335-1 and UL 60335-2-40 for appliance applications. Flame retardance is V1 per UL 94.

Mounting and terminal details

Snaps onto DIN rail or mounts directly with screws (plate or rail). Occupies 45 mm width, 57 mm depth, 58 mm height. Screw clamp terminals accept 1.5 to 4 mm² solid (1 or 2 conductors) or 0.34 to 2.5 mm² flexible with/without ferrules. Tightening torque 0.8 to 1.3 N.m (7.08 to 11.5 lbf.in) with Philips No 2, pozidriv No 2, or flat Ø 6 mm. IP2X finger protection per VDE 0106.

Frequently asked questions

What are the key ratings of this contactor?

16 A in AC-3/AC-3e motor duty, 3 NO power poles, 1 NO auxiliary contact. Mechanical durability 10 Mcycles, electrical 1.3 Mcycles at 16 A AC-3. Coil hold-in 4.5 VA, operate time 10-20 ms.

What compliance standards does it meet?

EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, plus IEC/UL 60335 for appliance use. Flame retardance V1 per UL 94.
