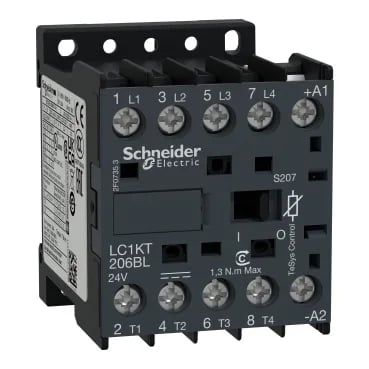

Schneider Electric LC1KT206BLS207
MPNLC1KT206BLS207
Obsolete
LC1KT206BLS207 by SQUARE D
$26.67Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control circuit type | DC low consumption |
| Product or component type | Contactor |
| Coil voltage | 24 V DC |
| Voltage | Power circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-5-1 Power circuit: 750 V conforming to VDE 0110 group C Power circuit: 690 V conforming to BS 5424 Power circuit: 690 V conforming to NF C 20-040 |
| Control circuit voltage limits | Operational: 0.7...1.3 Uc (at Drop-out: >= 0.10 Uc (at <50 °C) |
| [Ue] rated operational voltage | Power circuit: Signalling circuit: <= 690 V AC <= 400 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand current | 90 A 50 °C - 1 s for power circuit 85 A 50 °C - 5 s for power circuit 80 A 50 °C - 10 s for power circuit 60 A 50 °C - 30 s for power circuit 45 A 50 °C - 1 min for power circuit 40 A 50 °C - 3 min for power circuit 20 A 50 °C - >= 15 min for power circuit |
| Breaking capacity | 110 A at 220...230 V conforming to IEC 60947 110 A at 380...400 V conforming to IEC 60947 110 A at 415 V conforming to IEC 60947 110 A at 440 V conforming to IEC 60947 80 A at 500 V conforming to IEC 60947 70 A at 660...690 V conforming to IEC 60947 |
| [Ie] rated operational current | 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit |
| [Ith] conventional free air thermal current | 20 A (at 60 °C) for power circuit 10 A (at 50 °C) for signalling circuit |
| Inrush power in | 1.8 W (at 20 °C) |
All specifications
| Parameter | Value |
|---|---|
| Hold-in power consumption in | 1.8 W at 20 °C |
| Power pole contact composition | 4 NO |
| Poles description | 4P |
| Utilisation category | AC-1 |
| IP degree of protection | IP20 conforming to VDE 0106 |
| Mounting support | Plate Rail |
| Connections - terminals | Power circuit: lugs-ring terminals (external diameter: 7 mm) |
| Operating altitude | 2000 m without derating |
| Depth | 57 mm |
| Width | 45 mm |
| Height | 58 mm |
| Electrical durability | 0.18 Mcycles 20 A AC-1 at Ue <= 440 V |
| Mechanical durability | 30 Mcycles |
| Standards | BS 5424 IEC 60947 NF C 63-110 VDE 0660 IEC 60077-1 IEC 60077-2 EN 45545: R22 HL3 EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
| Range | TeSys |
| Safety cover | With |
| Operating time | 10...20 ms coil de-energisation and NO opening 30...40 ms coil energisation and NO closing |
| Coil technology | With integral suppression device |
| Flame retardance | V0 conforming to UL 94 |
| Heat dissipation | 1.8 W |
| Average impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Device short name | LC1K |
| Tightening torque | Power circuit: 0.8...1.3 N.m - on lugs-ring terminals - with screwdriver 3.2 mm flat Ø 6 mm Power circuit: 0.8...1.3 N.m - on lugs-ring terminals - with screwdriver 3.2 mm Philips No 2 Power circuit: 0.8...1.3 N.m - on lugs-ring terminals pozidriv No 2 |
| Device application | Control |
| Overvoltage category | III |
| Protective treatment | TC conforming to IEC 60068 TC conforming to DIN 50016 |
| Contactor application | Resistive load |
| Mechanical robustness | Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Associated fuse rating | 25 A gG at 10 A gG for signalling circuit conforming to IEC 60947 10 A gG for signalling circuit conforming to VDE 0660 |
| Maximum operating rate | 3600 cyc/h |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Irms rated making capacity | 110 A AC for power circuit conforming to IEC 60947 |
| Ambient air temperature for storage | -50...80 °C |
| Permissible ambient air temperature around the device | -40...70 °C at Uc |
