Schneider Electric LC2-D09BDV
MPNLC2-D09BDV

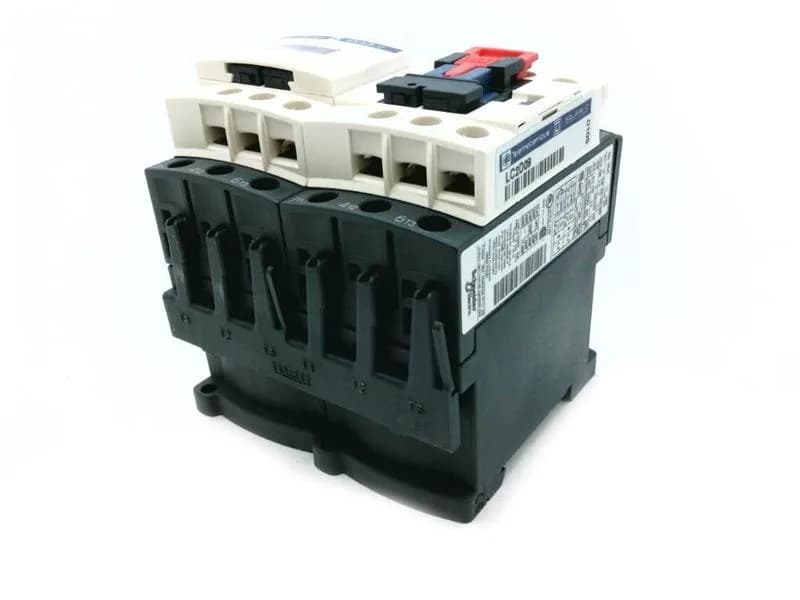

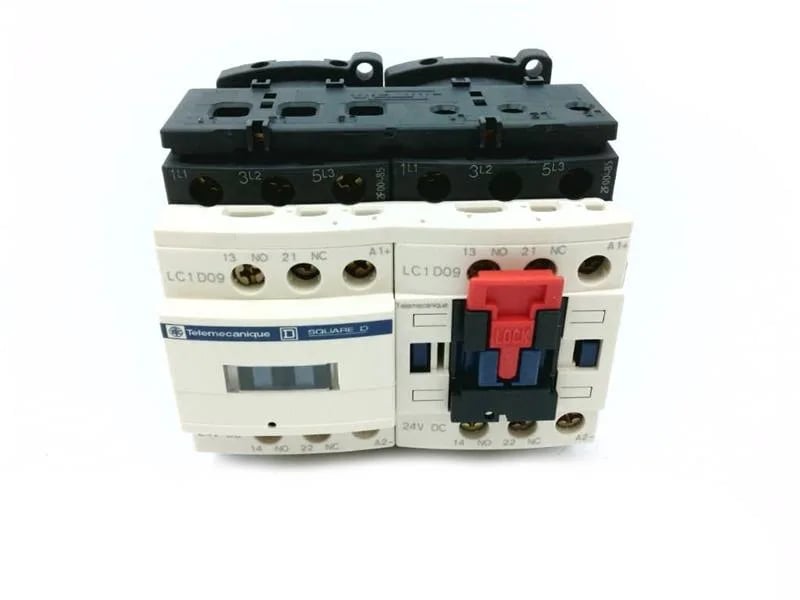

LC2-D09BDV - REVERSING CONTACTOR by TELEMECANIQUE
$431.63Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Climatic withstand | IACS E10 IEC 60947-1 Annex Q category D |
| Current | 9 A |
| Poles | 3 |
| Utilization category | AC-1 AC-3 |
| Altitude max | 0 |
| Pollution degree | 3 |
| Depth | 93.98 |
| Width | 88.9 |
| Height | 76.962 |
| Range | TeSys TeSys Deca |
| Power | 3 NO |
| IP rating | IP20 front face IEC 60529 |
All specifications
| Parameter | Value |
|---|---|
| Package_type | PCE |
| Fire_behavior | V1 conforming to UL 94 |
| Resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Application_type | Resistive load Motor control |
| Supply voltage | Power circuit Power circuit 10 MOhm for signalling circuit |
| Device short name | LC2D |
| Device presentation | Preassembled with reversing power busbar |
| Storage temperature | -76...176 °F (-60...80 °C) |
| Protective treatment | TH IEC 60068-2-30 |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor open10 Gn for 11 ms Shocks contactor closed15 Gn for 11 ms |
| Main_product_or_component_type | Reversing contactor |
| Operating temperature | -40 |
| Ordering and shipping details (Category) | 22355-CTR,TESYS D,OPEN,9-38 A DC |
MPN
LC2-D09BDV
