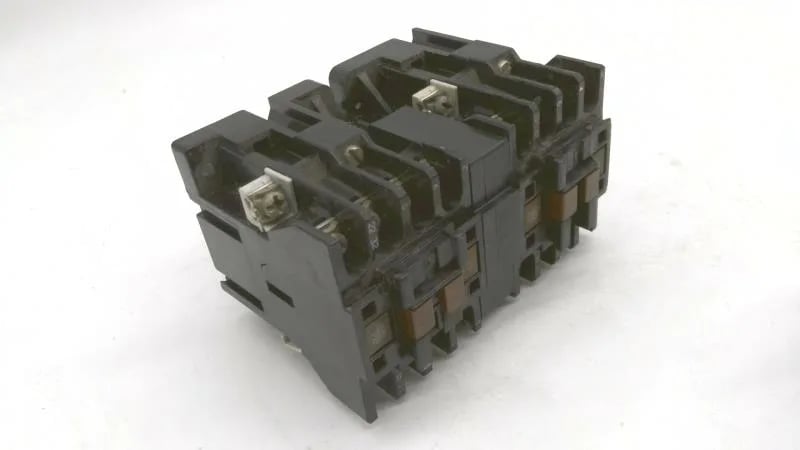

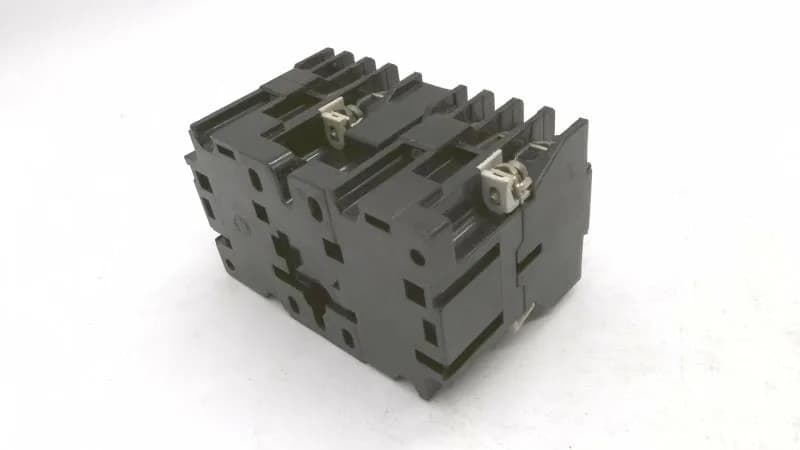

Schneider Electric LC2D099BD
MPNLC2D099BD
Obsolete
LC2D099BD - REVERSING CONTACTOR by SCHNEIDER ELECTRIC
$103.63Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Reversing contactor |
| Climatic withstand | conforming to IACS E10 conforming to IEC 60947-1 Annex Q category D |
| [Ue] rated operational voltage | Power circuit: Power circuit: 10 MOhm for signalling circuit |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-1 AC-3 |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Pollution degree | 3 |
| Operating altitude | 0...3000 m |
| Depth | 95 mm |
| Width | 90 mm |
| Height | 77 mm |
All specifications
| Parameter | Value |
|---|---|
| Range | TeSys TeSys Deca |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Device short name | LC2D |
| Device presentation | Preassembled with reversing power busbar |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Contactor application | Resistive load Motor control |
| Mechanical robustness | Vibrations contactor open: 2 Gn, 5...300 Hz Vibrations contactor closed: 4 Gn, 5...300 Hz Shocks contactor open: 10 Gn for 11 ms Shocks contactor closed: 15 Gn for 11 ms |
| Ambient air temperature for storage | -60...80 °C |
| Ambient air temperature for operation | -40...60 °C 60...70 °C with derating |
MPN
LC2D099BD
