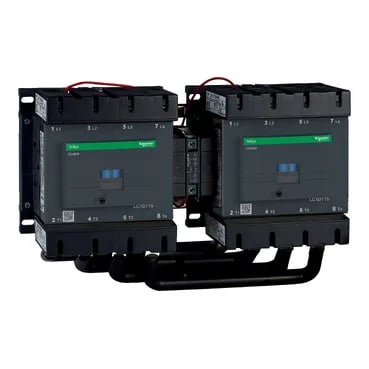

Schneider Electric LC2D115004P7

Schneider LC2D115004P7 TeSys Deca reversing contactor, 4-pole, 230 V coil

MPNLC2D115004P7
Active

Schneider LC2D115004P7 Tesys Deca Advanced — now discontinued, supplied from remaining surplus and broker stock.

$1,236.27 – $1,893.28Ref. price · indicative, final on quote
Schneider Electric LC2D115004P7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC2D115004P7 key specifications
ParameterValue
Interlocking typeMechanical
Control circuit typeAC at 50/60 Hz
Product or component typeChangeover contactor
Climatic withstandconforming to IACS E10
Coil voltage230 V AC 50/60 Hz
VoltagePower circuit: 600 V CSA certified Power circuit: 600 V UL certified Power circuit: 1000 V conforming to IEC 60947-4-1
Control circuit voltage limits0.3...0.5 Uc (-40...55 °C):drop-out AC 50 Hz 0.8...1.15 Uc (-40...55 °C):operational AC 50 Hz
[Ue] rated operational voltagePower circuit: Power circuit: <= 460 V DC
[Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947
[Icw] rated short-time withstand current250 A 40 °C - 10 min for power circuit 550 A 40 °C - 1 min for power circuit 950 A 40 °C - 10 s for power circuit 1100 A 40 °C - 1 s for power circuit
Breaking capacity1260 A at 440 V for power circuit conforming to IEC 60947
[Ie] rated operational current200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

All specifications

LC2D115004P7 additional specifications
ParameterValue
[Ith] conventional free air thermal current200 A (at 60 °C) for power circuit
Inrush power in280...350 VA 60 Hz cos phi 0.9 (at 20 °C) 280...350 VA 50 Hz cos phi 0.9 (at 20 °C)
Power dissipation per pole24 W AC-1
Power pole contact composition4 NO
Hold-in power consumption in2...18 VA (at 20 °C) cos phi 0.3 60 Hz 2...18 VA (at 20 °C) cos phi 0.3 50 Hz
Poles description4P
Utilisation categoryAC-1 AC-3 AC-3e AC-4
IP degree of protectionIP20 front face conforming to IEC 60529
Mounting supportPlate Rail
Connections - terminalsControl circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1...2.5 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1...2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1...2.5 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1...2.5 mm²solid without cable end Power circuit: connector 1 cable(s) 10...120 mm²flexible without cable end Power circuit: connector 2 cable(s) 10...50 mm²flexible without cable end Power circuit: connector 1 cable(s) 10...120 mm²flexible with cable end Power circuit: connector 2 cable(s) 10...50 mm²flexible with cable end Power circuit: connector 1 cable(s) 10...120 mm²solid without cable end Power circuit: connector 2 cable(s) 10...50 mm²solid without cable end
Pollution degree3
Operating altitude0...3000 m
Depth148 mm
Width334 mm
Height158 mm
Electrical durability0.5 Mcycles 250 A AC-1 at Ue <= 690 V
Mechanical durability8 Mcycles
StandardsCSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
RangeTeSys
Front coverWith
Operating time20...50 ms closing 6...20 ms opening
Coil technologyBuilt-in bidirectional peak limiting diode suppressor
Fire resistance850 °C conforming to IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Heat dissipation3...8 W at 50/60 Hz
Average impedance0.6 mOhm - Ith 200 A 50 Hz for power circuit
Device short nameLC2D
Tightening torqueControl circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 Power circuit: 12 N.m - on connector hexagonal screw head 4 mm
Device presentationPreassembled with reversing power busbar
Overvoltage categoryIII
Protective treatmentTH conforming to IEC 60068-2-30
Contactor applicationResistive load
Mechanical robustnessVibrations contactor open: 2 Gn, 5...300 Hz Vibrations contactor closed: 4 Gn, 5...300 Hz Shocks contactor closed: 15 Gn for 11 ms Shocks contactor open: 6 Gn for 11 ms
Associated fuse rating250 A gG at 200 A gG at <= 690 V coordination type 2 for power circuit
Maximum operating rate1200 cyc/h 60 °C
Safety reliability levelB10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Irms rated making capacity1260 A at 440 V for power circuit conforming to IEC 60947
Ambient air temperature for storage-60...80 °C
Ambient air temperature for operation-40...60 °C 60...70 °C with derating

Product details

Overview

The LC2D115004P7 is a Schneider TeSys Deca Advanced reversing contactor, preassembled with a reversing power busbar and mechanical interlock, switching a 4-pole resistive load at 460 V supply with a 230 V AC coil. Rated for AC-1, AC-3, AC-3e, and AC-4 utilization categories, it carries UL 508, CSA C22.2 No 14, and IEC 60947-4-1 approvals, with V-1 flammability per UL 94.

Unlike the standard LC1DT323BL contactor (32 A, no reversing busbar), the LC2D115004P7 ships as a changeover contactor with integrated reversing busbar and mechanical interlock, saving panel wiring time for motor reversing duty.

MPN
LC2D115004P7
