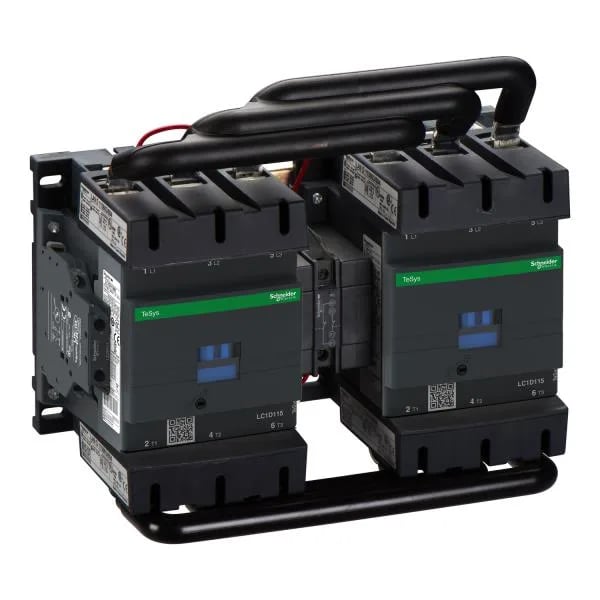

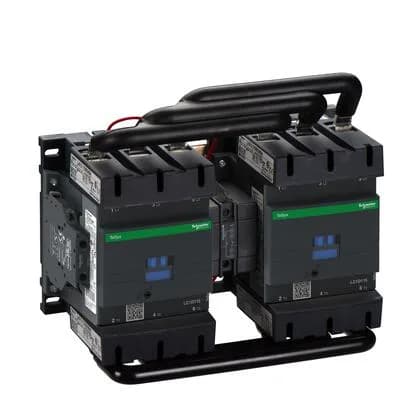

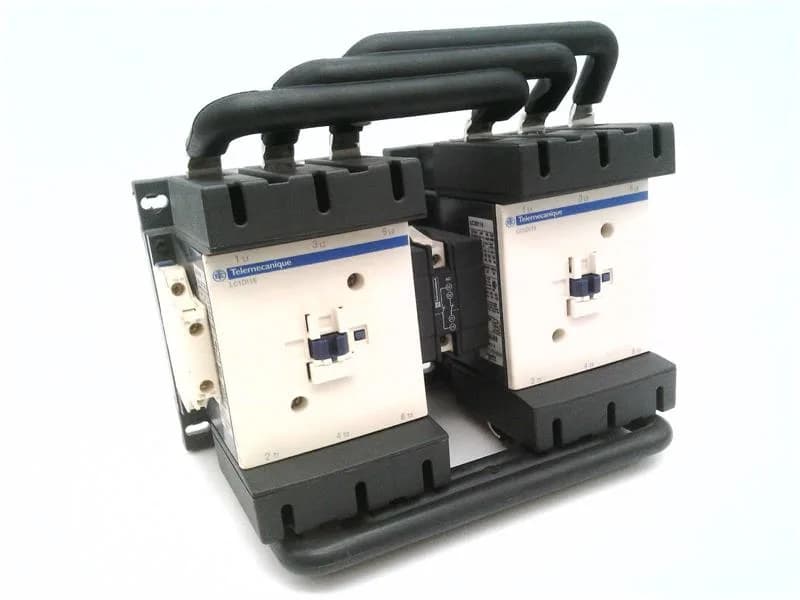

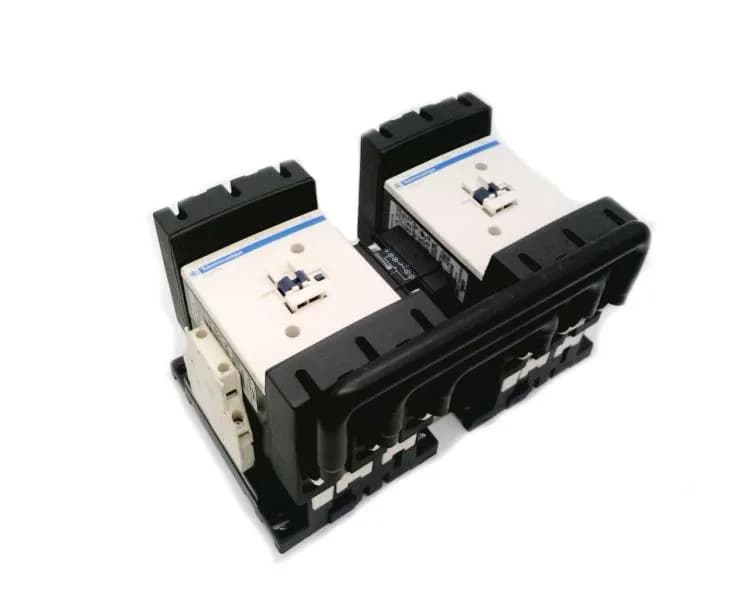

Schneider LC2D115G7 TeSys Deca reversing contactor, 115 A, 120 VAC coil

MPNLC2D115G7

Obsolete

Schneider LC2D115G7 Electrical Contactors — now discontinued, supplied from remaining surplus and broker stock.

$836.93Ref. price · indicative, final on quote

Find equivalent or request quote

Schneider Electric LC2D115G7 datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

LC2D115G7 key specifications
Parameter	Value
Product or component type	Reversing contactor
Climatic withstand	IACS E10
[Ue] rated operational voltage	Power circuit Power circuit 10 MOhm for signalling circuit
Power pole contact composition	3 NO
Poles description	3P
Utilisation category	AC-1 AC-3 AC-3e
IP degree of protection	IP20 front face IEC 60529
Pollution degree	3
Operating altitude	0...9842.52 ft (0...3000 m)
Depth	5.8 in (148 mm)
Width	10.5 in (266 mm)
Height	6.2 in (158 mm)

All specifications

LC2D115G7 additional specifications
Parameter	Value
Range	TeSys
Category	US10I1222354
Fire resistance	1562 °F (850 °C) IEC 60695-2-1
Flame retardance	V1 conforming to UL 94
Device short name	LC2D
Device presentation	Preassembled with reversing power busbar
Protective treatment	TH IEC 60068-2-30
Contactor application	Motor control Resistive load
Mechanical robustness	Vibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor closed15 Gn for 11 ms Shocks contactor open6 Gn for 11 ms
Ambient air temperature for storage	-76...176 °F (-60...80 °C)
Ambient air temperature for operation	-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Overview

The LC2D115G7 is a Schneider TeSys Deca reversing contactor rated 115 A, 3-pole, with a 120 VAC coil and a maximum rated voltage of 600 VAC / 300 VDC. It is preassembled with a reversing power busbar and carries AC-1, AC-3, and AC-3e utilization categories, making it suited for both resistive and motor-load reversing duty.

Schneider lists the LC2D115G7 as discontinued; remaining units are available through surplus and broker channels. An RFQ confirms current availability and lead time for this exact build.
