Schneider LC2D150BD TeSys Deca reversing contactor, 150 A, 3-pole

MPNLC2D150BD

Obsolete

Schneider LC2D150BD Electrical Contactors — now discontinued, supplied from remaining surplus and broker stock.

$1,148.08 – $2,270.00Ref. price · indicative, final on quote

Find equivalent or request quote

Schneider Electric LC2D150BD datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

LC2D150BD key specifications
Parameter	Value
Product or component type	Reversing contactor
Climatic withstand	IACS E10
[Ue] rated operational voltage	Power circuit Power circuit 10 MOhm for signalling circuit
Power pole contact composition	3 NO
Poles description	3P
Utilisation category	AC-3 AC-1
IP degree of protection	IP20 front face IEC 60529
Pollution degree	3
Operating altitude	0...9842.52 ft (0...3000 m)
Depth	5.8 in (148 mm)
Width	10.5 in (266 mm)
Height	6.2 in (158 mm)

All specifications

LC2D150BD additional specifications
Parameter	Value
Range	TeSys
Category	US10I1222359
Fire resistance	1562 °F (850 °C) IEC 60695-2-1
Flame retardance	V1 conforming to UL 94
Device short name	LC2D
Device presentation	Preassembled with reversing power busbar
Protective treatment	TH IEC 60068-2-30
Contactor application	Motor control Resistive load
Mechanical robustness	Vibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor closed15 Gn for 11 ms Shocks contactor open6 Gn for 11 ms
Ambient air temperature for storage	-76...176 °F (-60...80 °C)
Ambient air temperature for operation	-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Overview

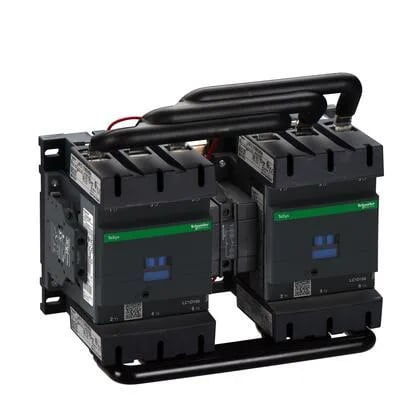

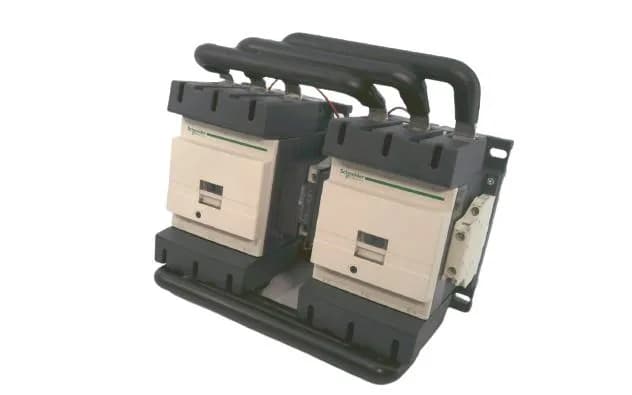

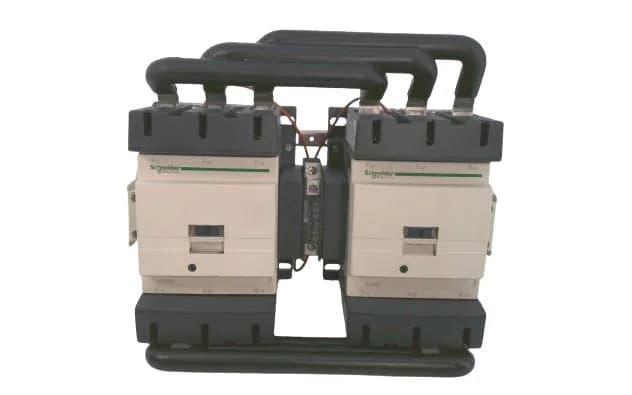

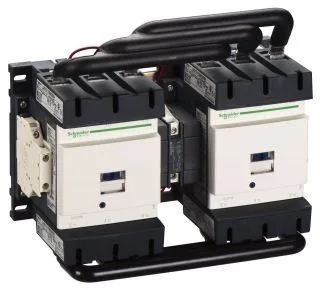

The LC2D150BD is a Schneider TeSys Deca reversing contactor rated 150 A across 3 poles, preassembled with a reversing power busbar for motor-reversing or dual-load changeover duty in AC-3 and AC-1 circuits. The front face carries an IP20 finger-safe guard per IEC 60529; the contactor is sealed against humidity with TH protective treatment per IEC 60068-2-30 and withstands storage from -60 to 80 °C.

The LC2D150BD carries a 150 A rating versus the LC2D40AB7 at 40 A, so the 150 A unit is sized for high-current reversing loads such as large conveyors or pumps, while the 40 A sibling suits smaller motor circuits below 40 A.
