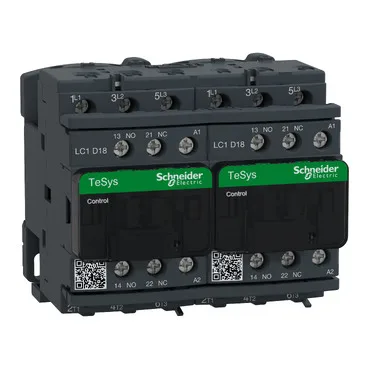

Schneider Electric LC2D18F7C
MPNLC2D18F7C
Reversing contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 18A, 110V AC 50/60Hz coil, china, screw clamp terminals
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Reversing contactor |
| Series / range | TeSys TeSys Deca |
| Application | Motor control Resistive load |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit: Power circuit: 10 MOhm for signalling circuit |
| Utilisation category | AC-1 AC-3 |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Operating altitude | 3000 m |
| Mechanical robustness | Vibrations contactor open: 2 Gn, 5...300 Hz Vibrations contactor closed: 4 Gn, 5...300 Hz Shocks contactor open: 10 Gn for 11 ms Shocks contactor closed: 15 Gn for 11 ms |
| Protective treatment / pollution degree | TH conforming to IEC 60068-2-30 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Parameter | Value |
|---|---|
| Standards | EN 60947-5-1 CSA C22.2 No 14 IEC 60947-4-1 EN 60947-4-1 IEC 60947-5-1 |
| Parameter | Value |
|---|---|
| Width | 90 mm |
| Height | 77 mm |
| Depth | 86 mm |
MPN
LC2D18F7C
