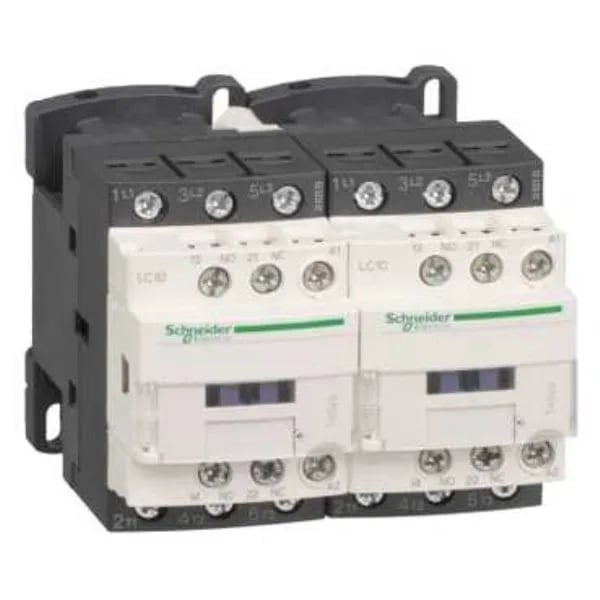

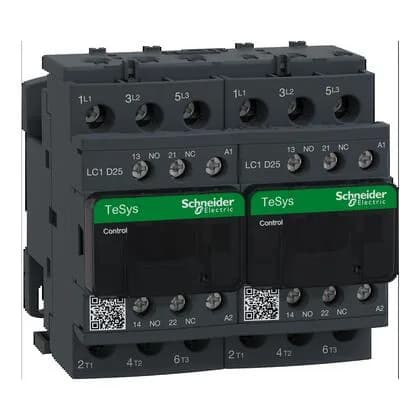

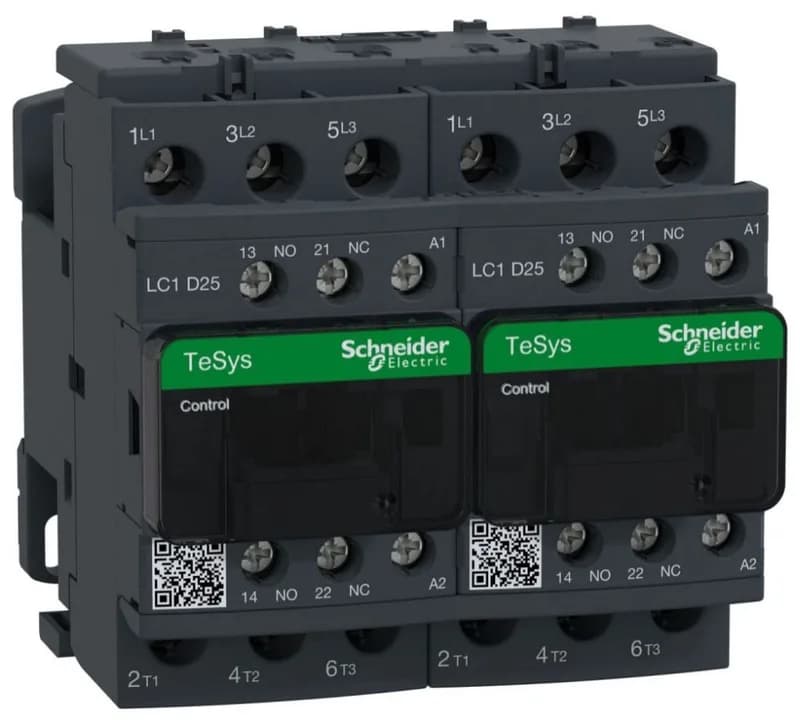

Schneider LC2D25B7 TeSys Deca reversing contactor, 25 A AC-3, 24 V AC coil

MPNLC2D25B7

Obsolete

Schneider LC2D25B7 Electrical Contactors — now discontinued, supplied from remaining surplus and broker stock.

$80.01Ref. price · indicative, final on quote

Find equivalent or request quote

Schneider Electric LC2D25B7 datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

LC2D25B7 key specifications
Parameter	Value
Product or component type	Reversing contactor
Climatic withstand	IACS E10 IEC 60947-1 Annex Q category D
[Ue] rated operational voltage	Power circuit Power circuit 10 MOhm for signalling circuit
Power pole contact composition	3 NO
Poles description	3P
Utilisation category	AC-1 AC-3 AC-3e
IP degree of protection	IP20 front face IEC 60529
Pollution degree	3
Operating altitude	0...9842.52 ft (0...3000 m)
Depth	3.6 in (92 mm)
Width	3.5 in (90 mm)
Height	3.3 in (85 mm)

All specifications

LC2D25B7 additional specifications
Parameter	Value
Range	TeSys TeSys Deca
Category	US10I1222354
Fire resistance	1562 °F (850 °C) IEC 60695-2-1
Flame retardance	V1 conforming to UL 94
Device short name	LC2D
Device presentation	Preassembled with reversing power busbar
Protective treatment	TH IEC 60068-2-30
Contactor application	Motor control Resistive load
Mechanical robustness	Vibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor closed15 Gn for 11 ms Shocks contactor open8 Gn for 11 ms
Ambient air temperature for storage	-76...176 °F (-60...80 °C)
Ambient air temperature for operation	-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Overview

The LC2D25B7 is a Schneider TeSys Deca reversing contactor rated 25 A in AC-3 duty and 40 A in AC-1, with a 24 V AC coil and a preassembled reversing power busbar that cuts panel wiring time. Its 3-pole main contacts and built-in 1NO-1NC auxiliary contacts suit reversing motor starters up to 440 V, and the IP20 front face keeps live parts behind the panel door.

The LC2D25B7 shares the same reversing contactor frame and preassembled busbar as the LC2D40AB7, but the LC2D40AB7 carries a 40 A AC-3 rating — a 15 A step up for heavier motor loads.
