Schneider LC2D38EHE Iec Contactors — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Product or component type | Reversing contactor |
| Climatic withstand | IACS E10 IEC 60947-1 Annex Q category D |
| [Ue] rated operational voltage | Power circuit 10 MOhm for signalling circuit |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-3 AC-1 |
| IP degree of protection | IP20 front face IEC 60529 |
| Pollution degree | 3 |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Color | Gray SE GREY 6) Green SE GREEN 2) |
| Depth | 3.6 in (92 mm) |
| Width | 3.5 in (90 mm) |
| Parameter | Value |
|---|---|
| Height | 3.3 in (85 mm) |
| Category | US10I1222356 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Device short name | LC2D |
| Device presentation | Preassembled with reversing power busbar |
| Protective treatment | TH IEC 60068-2-30 |
| Contactor application | Resistive load Motor control |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor closed15 Gn for 11 ms Shocks contactor open8 Gn for 11 ms |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating |

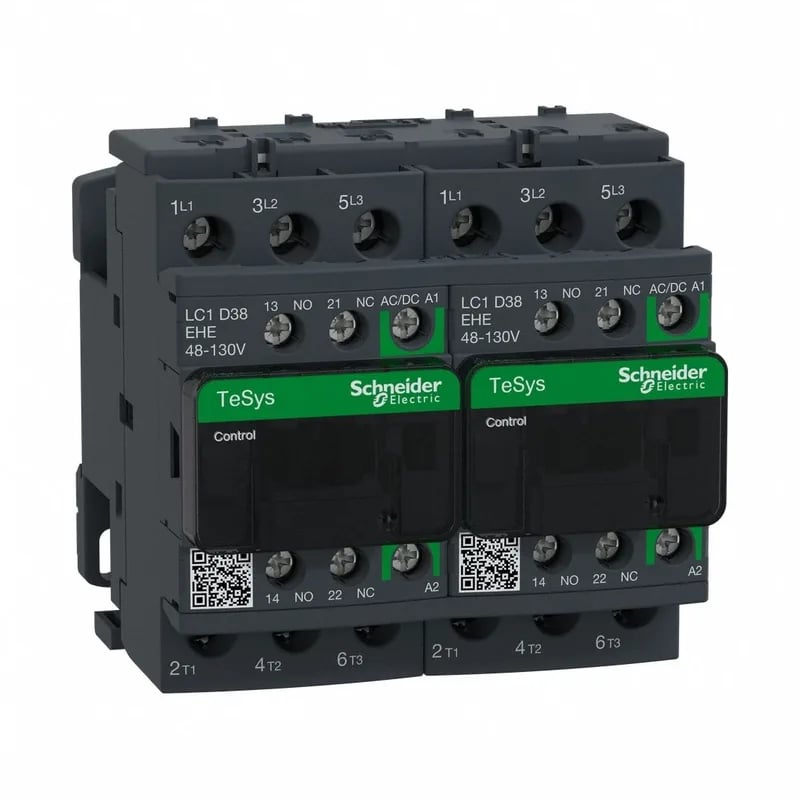

The LC2D38EHE is a Schneider TeSys Deca reversing contactor rated 38 A in AC-3 duty with a 130 V 60 Hz coil, preassembled with the reversing power busbar so it arrives ready to wire into a motor-reversing circuit. It carries a 3-pole 3NO main contact arrangement, screw-clamp terminals, and an IP20 finger-safe enclosure, backed by UL, CSA, CCC, DNV-GL, EAC, KC, LROS, and UKCA certifications for global panel acceptance.
