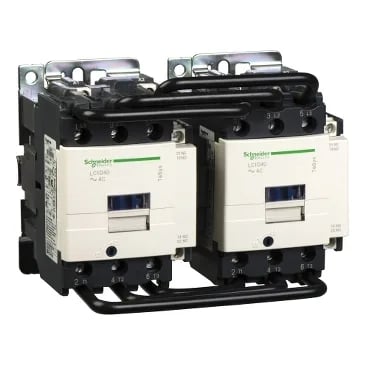

Schneider Electric LC2D40-P7
MPNLC2D40-P7
Obsolete
LC2D40-P7 by SQUARE D
$272.36Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Climatic withstand | conforming to IACS E10 |
| Current | 40 A |
| Poles | 3 |
| Utilization category | AC-1 AC-3 |
| Altitude max | 0 |
| Pollution degree | 3 |
| Depth | 142 |
| Width | 165 |
| Height | 127 |
| Range | TeSys |
| Power | 3 NO |
| IP rating | IP20 front face conforming to IEC 60529 |
All specifications
| Parameter | Value |
|---|---|
| Package_type | PCE |
| Fire_behavior | V1 conforming to UL 94 |
| Resistance | 960 °C conforming to IEC 60695-2-1 |
| Application_type | Resistive load Motor control |
| Supply voltage | Power circuit: 10 MOhm for signalling circuit |
| Device short name | LC2D |
| Device presentation | Preassembled with reversing power busbar |
| Storage temperature | -60...80 °C |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Mechanical robustness | Vibrations contactor open: 2 Gn, 5...300 Hz Shocks contactor closed: 10 Gn for 11 ms Shocks contactor open: 8 Gn for 11 ms Vibrations contactor closed: 3 Gn, 5...300 Hz |
| Main_product_or_component_type | Reversing contactor |
| Operating temperature | -40 |
MPN
LC2D40-P7
