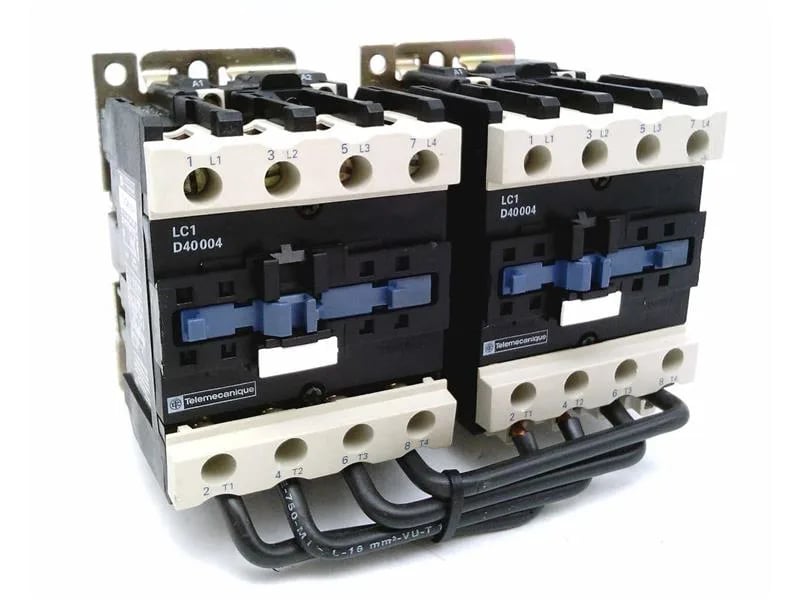

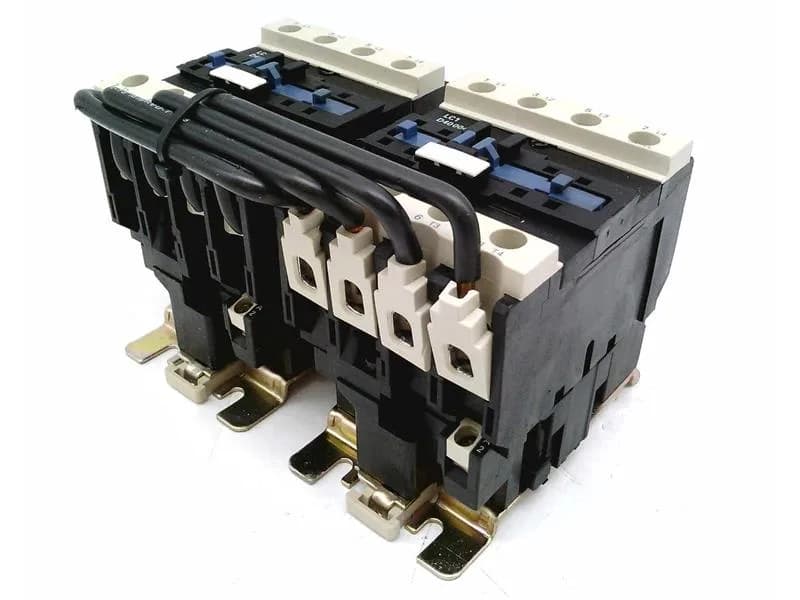

Schneider Electric LC2D40004U7
MPNLC2D40004U7
Active
LC2D40004U7 - REVERSING CONTACTOR by TELEMECANIQUE
$856.45Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Coil type | Standard |
| Range of product | TeSys D |
| Control circuit type | AC |
| Product or component type | Reversing contactor |
| [Ie] rated operational current | Power circuit: 60 A AC AC-1 (at 10 MOhm for control circuit |
| Poles description | 4P |
| Pole contact composition | 4 NO |
| Utilisation category | AC-1 AC-3 AC-3e AC-4 |
| IP degree of protection | IP2X conforming to IEC 60529 IP2X conforming to VDE 0106 |
| Shock resistance | 10 gn contactor closed 8 gn contactor opened |
| Operating altitude | 3000 m without derating |
| Vibration resistance | 2 gn 5...300 Hz contactor opened 4 gn 5...300 Hz contactor closed |
All specifications
| Parameter | Value |
|---|---|
| Depth | 142 mm |
| Width | 165 mm |
| Height | 132 mm |
| Standards | EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 EN 60947-4-1 UL 508 CSA C22.2 No 14 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Heat dissipation | 6...10 W at 50/60 Hz for control circuit |
| Device short name | LC2D |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068 |
| Contactor application | Resistive load |
| Ambient air temperature for storage | -60...80 °C |
| Ambient air temperature for operation | -5...60 °C |
| Permissible ambient air temperature around the device | -40...70 °C at Uc |
MPN
LC2D40004U7
