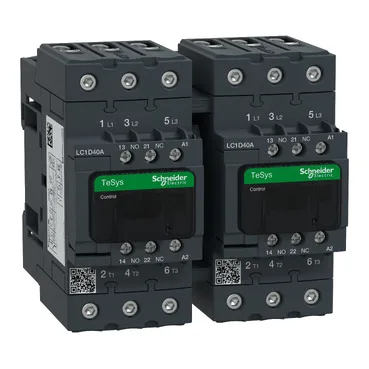

Schneider Electric TeSys Deca reversing contactor, LC2D40AFE7TQ, 3P(3NO), AC-3 40A at ≤440V, 115V AC 50/60 Hz coil, screw clamp terminals, preassembled with reversing power busbar.
| Parameter | Value |
|---|---|
| Product / component type | Reversing contactor |
| Series / range | TeSys TeSys Deca |
| Application | Motor control Resistive load |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit Power circuit 10 MOhm for signalling circuit |
| Utilisation category | AC-1 AC-3 |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 front face IEC 60529 |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor open10 Gn for 11 ms Shocks contactor closed15 Gn for 11 ms |
| Protective treatment / pollution degree | TH IEC 60068-2-30 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Parameter | Value |
|---|---|
| Width | 4.7 in (119 mm) |
| Height | 4.8 in (122 mm) |
| Depth | 4.7 in (120 mm) |
The LC2D40AFE7TQ: Preassembled with the reversing power busbar, so the mechanical and electrical interlock between the forward and reverse contactors is already in place — saves panel build time and eliminates a common wiring error that causes phase-to-phase shorts.
