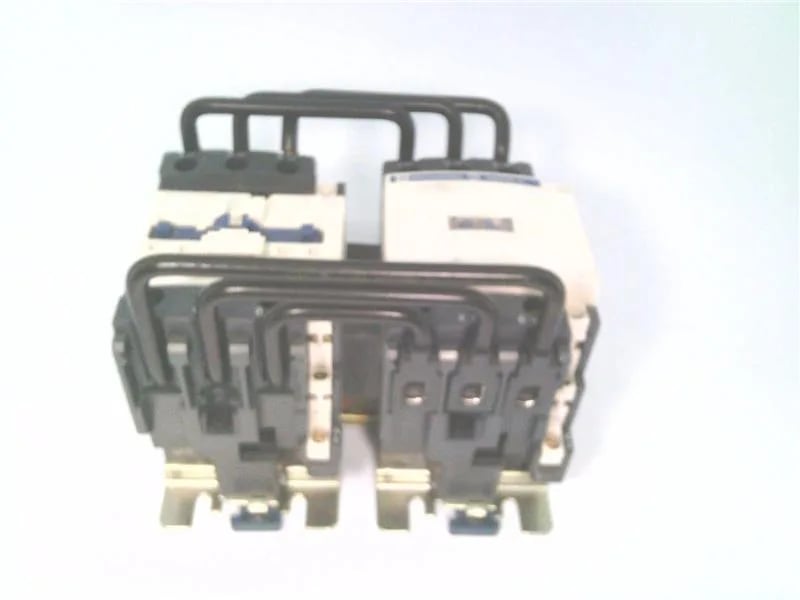

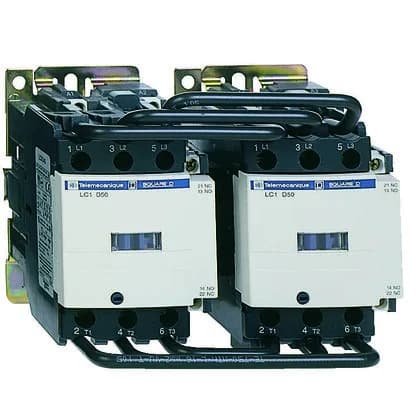

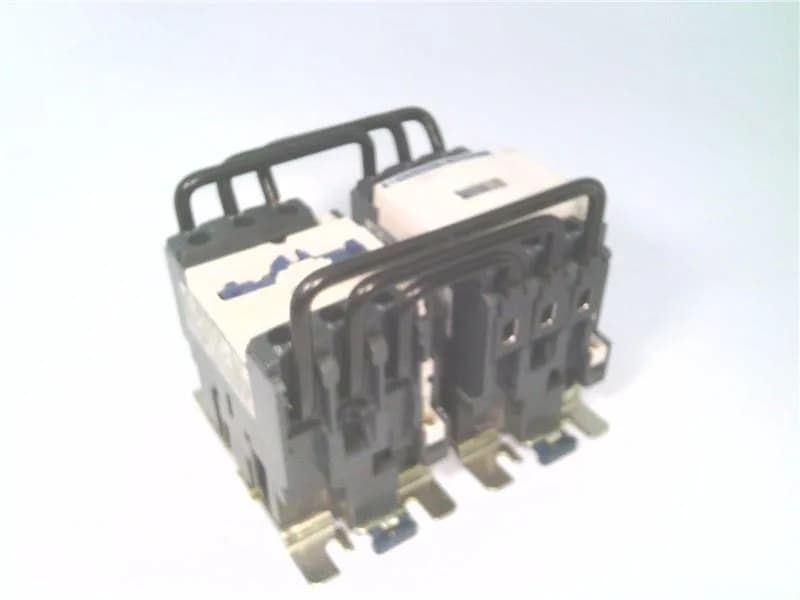

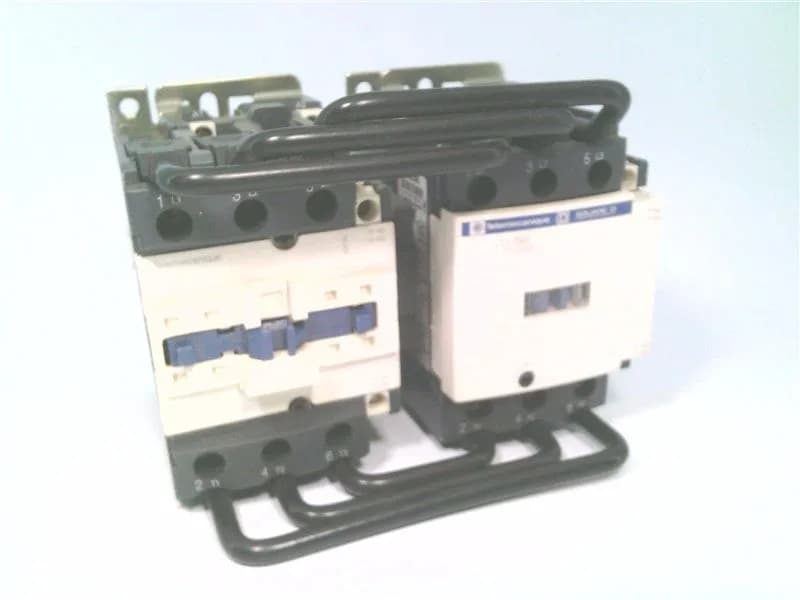

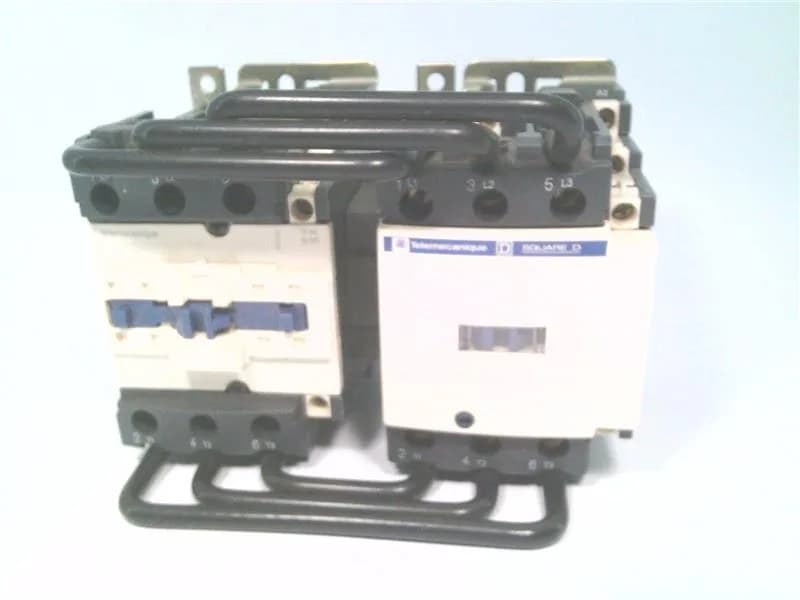

Schneider Electric LC2D40G6
MPNLC2D40G6
Obsolete
REVERSING CONTACTOR|SQD LC2D40G6 REVERSING CONTACTOR
$586.41Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Coil type | Standard |
| Range of product | TeSys D |
| Interlocking type | Mechanical |
| Control circuit type | AC |
| Auxiliary contacts type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1 |
| Product or component type | Reversing contactor |
| Coil voltage | 120 V AC 60 Hz |
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at Operational: 0.8...1.1 Uc at 50 Hz (at Operational: 0.85...1.1 Uc at 60 Hz (at 10 MOhm for control circuit |
| [Ie] rated operational current | Power circuit 40 A AC AC-3 140 °F (60 °C)) |
| Motor power | 11 kW 220...240 V AC 50/60 Hz 22 kW 415 V AC 50/60 Hz 22 kW 440 V AC 50/60 Hz 22 kW 500 V AC 50/60 Hz 30 kW 660...690 V AC 50/60 Hz 18.5 kW 380...400 V AC 50/60 Hz |
| Poles description | 3P |
| Pole contact composition | 3 NO |
All specifications
| Parameter | Value |
|---|---|
| Utilisation category | AC-4 AC-2 AC-3 |
| IP degree of protection | IP2X IEC 60529 IP2X VDE 0106 |
| Connections - terminals | Control circuit 1 0.002...0.006 in² (1...4 mm²)flexible with cable end Control circuit 1 0.002...0.006 in² (1...4 mm²)flexible without cable end Control circuit 1 0.002...0.006 in² (1...4 mm²)solid without cable end Control circuit 2 0.002...0.004 in² (1...2.5 mm²)flexible with cable end Control circuit 2 0.002...0.006 in² (1...4 mm²)flexible without cable end Control circuit 2 0.002...0.006 in² (1...4 mm²)solid without cable end Power circuit 1 0.002...0.05 in² (1...35 mm²)flexible with cable end Power circuit 1 0.002...0.05 in² (1...35 mm²)flexible without cable end Power circuit 1 0.002...0.05 in² (1...35 mm²)solid without cable end Power circuit 2 0.002...0.04 in² (1...25 mm²)flexible with cable end Power circuit 2 0.002...0.04 in² (1...25 mm²)flexible without cable end Power circuit 2 0.002...0.04 in² (1...25 mm²)solid without cable end Power circuit 2 0.002...0.05 in² (1...35 mm²)flexible with cable end Power circuit 2 0.002...0.05 in² (1...35 mm²)flexible without cable end Power circuit 2 0.002...0.05 in² (1...35 mm²)solid without cable end |
| Shock resistance | 10 gn contactor closed 8 gn contactor opened |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Vibration resistance | 2 gn 5...300 Hz contactor opened 4 gn 5...300 Hz contactor closed |
| Depth | 5.6 in (142 mm) |
| Width | 6.5 in (165 mm) |
| Height | 5.2 in (132 mm) |
| Standards | CSA C22.2 No 14 EN 60947-5-1 UL 508 EN 60947-4-1 IEC 60947-5-1 IEC 60947-4-1 |
| Category | US10I1222357 |
| Assembly style | Ready assembled |
| Coil technology | Without built-in bidirectional peak limiting diode suppressor |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Heat dissipation | 6...10 W at 60 Hz for control circuit |
| Protective cover | With |
| Device short name | LC2D |
| Protective treatment | TH 3)IEC 60068 |
| Contactor application | Motor control |
| Auxiliary contact composition | 1 NO + 1 NC |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) |
| Permissible ambient air temperature around the device | -40...158 °F (-40...70 °C) at Uc |
MPN
LC2D40G6
