LC2D40P7
Schneider Electric LC2D40P7
MPNLC2D40P7
Obsolete

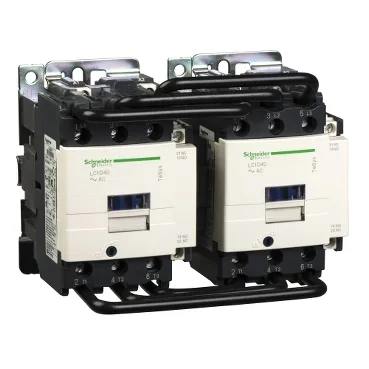

TeSys Deca reversing contactor - 3 poles - AC-3 440V 40 A - coil 230 V AC
$272.36Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product / component type | Reversing contactor |
| Series / range | TeSys |
| Application | Resistive load Motor control |
Ratings & Performance
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit 10 MOhm for signalling circuit |
| Utilisation category | AC-1 AC-3 |
Contacts & Poles
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
Environmental
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 front face IEC 60529 |
| Operating altitude | 0...3000 m |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz Shocks contactor closed10 Gn for 11 ms Shocks contactor open8 Gn for 11 ms Vibrations contactor closed3 Gn, 5...300 Hz |
| Protective treatment / pollution degree | TH IEC 60068-2-30 |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Flame retardance | V1 UL 94 |
Mechanical
| Parameter | Value |
|---|---|
| Width | 6.5 in (165 mm) |
| Height | 5 in (127 mm) |
| Depth | 5.6 in (142 mm) |
MPN
LC2D40P7
