Schneider Electric LC2D50ABBE

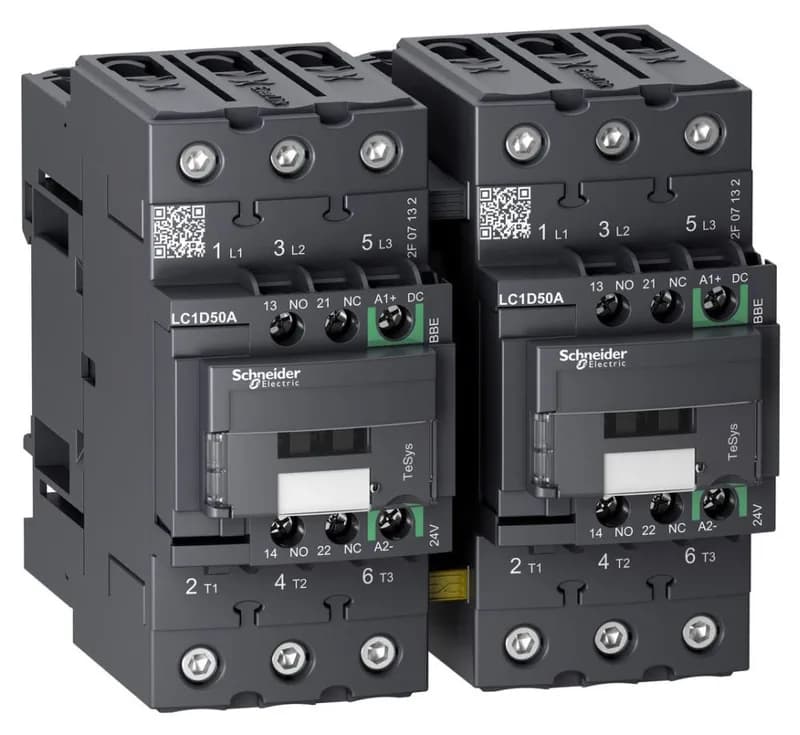

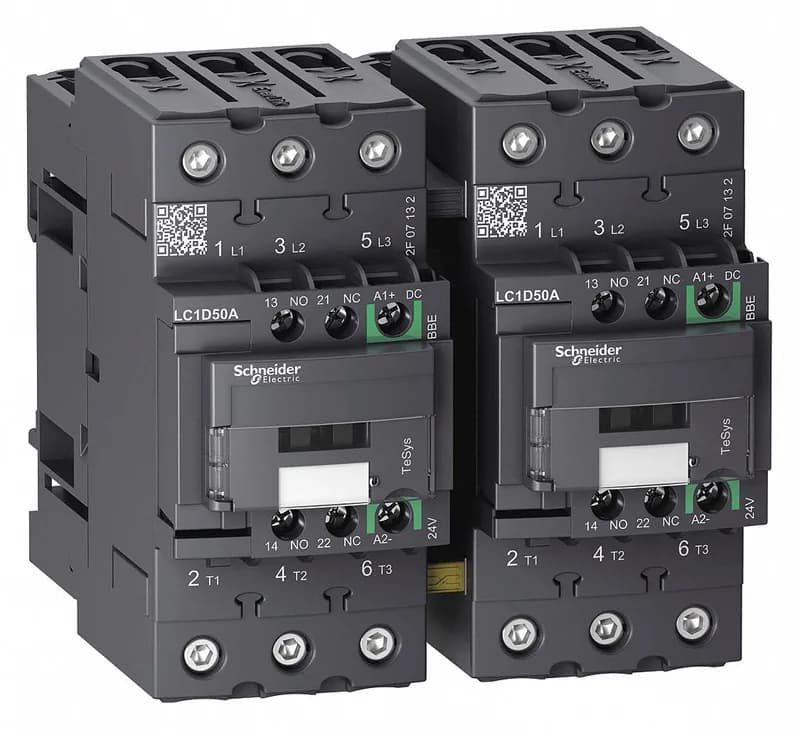

Schneider LC2D50ABBE TeSys Deca reversing contactor, 50 A, 24 V coil

MPNLC2D50ABBE
Active

Schneider LC2D50ABBE Iec Contactors — now discontinued, supplied from remaining surplus and broker stock.

$312.00 – $589.57Ref. price · indicative, final on quote
Schneider Electric LC2D50ABBE datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC2D50ABBE key specifications
ParameterValue
Product or component typeReversing contactor
Climatic withstandIACS E10 IEC 60947-1 Annex Q category D
[Ue] rated operational voltagePower circuit 690 V AC 25...400 Hz
[Ie] rated operational current50 A (at 80 A (at 10 MOhm for signalling circuit
Power pole contact composition3 NO
Poles description3P
Utilisation categoryAC-1 AC-3
IP degree of protectionIP20 front face IEC 60529
Pollution degree3
Operating altitude0...9842.52 ft (0...3000 m)
ColorGray SE GREY 6) Green SE GREEN 2)
Depth4.7 in (120 mm)

All specifications

LC2D50ABBE additional specifications
ParameterValue
Width4.7 in (119 mm)
Height4.8 in (122 mm)
CategoryUS10I1222356
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Device short nameLC2D
Device presentationPreassembled with reversing power busbar
Protective treatmentTH IEC 60068-2-30
Contactor applicationResistive load Motor control
Mechanical robustnessVibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor open10 Gn for 11 ms Shocks contactor closed15 Gn for 11 ms
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Overview

The LC2D50ABBE: The 3-pole, 3 NO contact form handles both resistive and motor loads, and the screw-clamp terminals accept up to the rated wire range. The IP20 finger-safe enclosure suits panel-mount installations.

Compared to the LC2D40ABNE, the LC2D50ABBE switches 50 A versus 60 A and uses a 24 V coil instead of 60 V. The LC2D40ABNE also carries a 2 HP higher rating, so the LC2D50ABBE is the correct choice when the panel design calls for a 24 V control voltage and the load stays under 50 A.

MPN
LC2D50ABBE
