Schneider Electric LC2D50ABNE

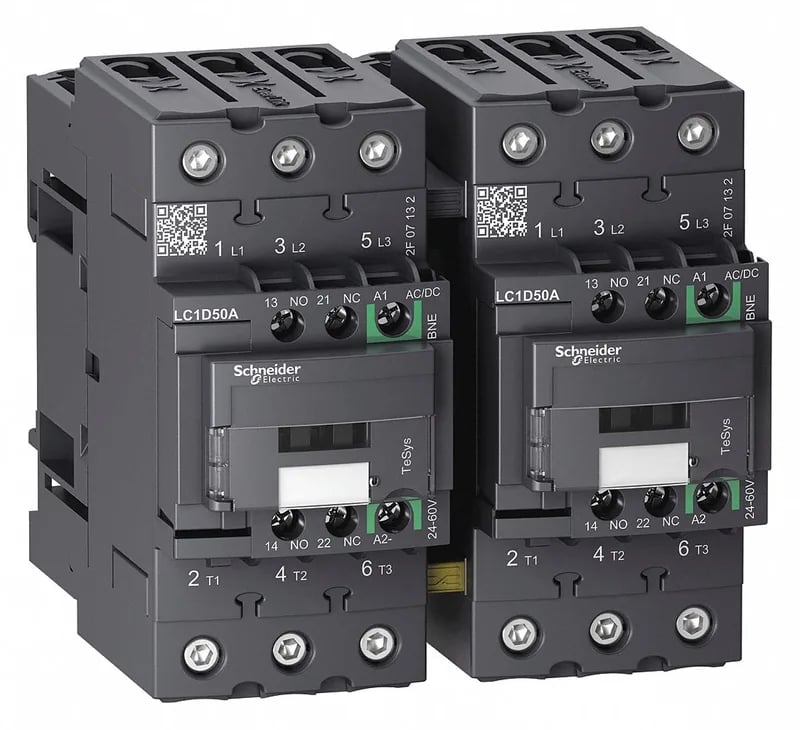

Schneider LC2D50ABNE TeSys Deca reversing contactor, 50 A, 60 V coil

MPNLC2D50ABNE
Active

Schneider LC2D50ABNE Iec Contactors — now discontinued, supplied from remaining surplus and broker stock.

$643.72Ref. price · indicative, final on quote
Schneider Electric LC2D50ABNE datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC2D50ABNE key specifications
ParameterValue
Product or component typeReversing contactor
Climatic withstandIACS E10 IEC 60947-1 Annex Q category D
[Ue] rated operational voltagePower circuit 690 V AC 25...400 Hz
[Ie] rated operational current50 A (at 80 A (at 10 MOhm for signalling circuit
Power pole contact composition3 NO
Poles description3P
Utilisation categoryAC-1 AC-3
IP degree of protectionIP20 front face IEC 60529
Pollution degree3
Operating altitude0...9842.52 ft (0...3000 m)
ColorGray SE GREY 6) Green SE GREEN 2)
Depth4.7 in (120 mm)

All specifications

LC2D50ABNE additional specifications
ParameterValue
Width4.7 in (119 mm)
Height4.8 in (122 mm)
CategoryUS10I1222356
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Device short nameLC2D
Device presentationPreassembled with reversing power busbar
Protective treatmentTH IEC 60068-2-30
Contactor applicationMotor control Resistive load
Mechanical robustnessVibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor open10 Gn for 11 ms Shocks contactor closed15 Gn for 11 ms
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Overview

The LC2D50ABNE is a Schneider TeSys Deca reversing contactor rated for 50 A switching current in AC-3 duty, with a 60 V 60 Hz coil and preassembled reversing power busbar for direct panel mounting. It carries CCC, CSA, UL, and DNV-GL certifications, meets pollution degree 3, and includes TH protective treatment per IEC 60068-2-30 for humid environments.

Compared to the LC2D65ABBE, the LC2D50ABNE switches 50 A versus 80 A and runs on a 60 V coil instead of 24 V, making it the right choice when the load is under 50 A and the control voltage is 60 V.
