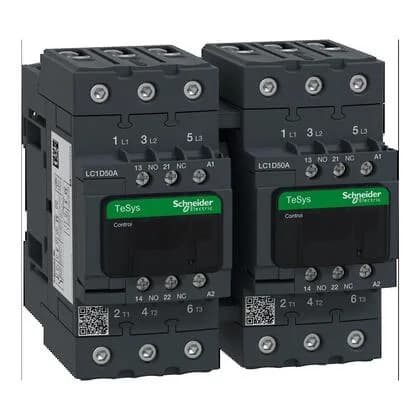

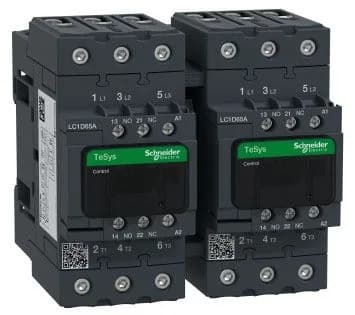

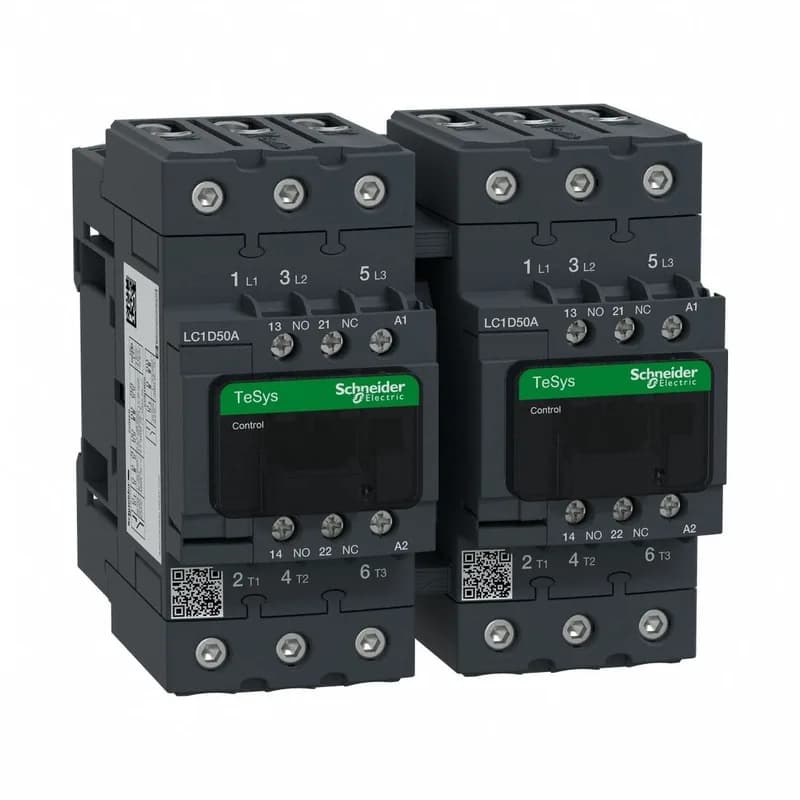

Schneider LC2D50AG7 1 Pole Din Rail Mount Circuit Breakers — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Product or component type | Reversing contactor |
| Climatic withstand | IACS E10 IEC 60947-1 Annex Q category D |
| [Ue] rated operational voltage | Power circuit Power circuit 10 MOhm for signalling circuit |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-1 AC-3 AC-3e |
| IP degree of protection | IP20 front face IEC 60529 |
| Pollution degree | 3 |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 4.7 in (120 mm) |
| Width | 4.7 in (119 mm) |
| Height | 4.8 in (122 mm) |
| Parameter | Value |
|---|---|
| Range | TeSys TeSys Deca |
| Category | US10I1222357 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Device short name | LC2D |
| Device presentation | Preassembled with reversing power busbar |
| Protective treatment | TH IEC 60068-2-30 |
| Contactor application | Resistive load Motor control |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor open10 Gn for 11 ms Shocks contactor closed15 Gn for 11 ms |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating |
The AC-3 rating of 50 A covers reversing motor starts; the AC-1 resistive rating of 70 A gives headroom for heater or transformer loads on the same contactor.
The LC2D50AG7 is a 3-pole reversing contactor; the M9F44115 is a 1-pole DIN-rail circuit breaker rated 15 A. The LC2D50AG7 cannot drop into a panel wired for the M9F44115 without rewiring the pole count and current path.
The LC2D50AG7 is in active production; lead time is typically quoted per RFQ for the exact build code.
