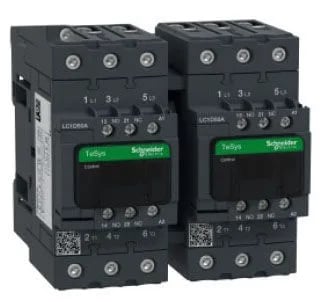

Schneider Electric LC2D50AL7

Schneider LC2D50AL7 Reversing Contactor, 3P, Obsolete

MPNLC2D50AL7
Obsolete

Schneider Electric TeSys D Deca reversing contactor, LC2D50AL7, 3P, obsolete status.

$815.00Ref. price · indicative, final on quote
Schneider Electric LC2D50AL7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC2D50AL7 key specifications
ParameterValue
Product or component typeReversing contactor
Climatic withstandIACS E10 IEC 60947-1 Annex Q category D
[Ue] rated operational voltagePower circuit Power circuit 10 MOhm for signalling circuit
Power pole contact composition3 NO
Poles description3P
Utilisation categoryAC-1 AC-3 AC-3e
IP degree of protectionIP20 front face IEC 60529
Pollution degree3
Operating altitude0...9842.52 ft (0...3000 m)
Depth4.7 in (120 mm)
Width4.7 in (119 mm)
Height4.8 in (122 mm)

All specifications

LC2D50AL7 additional specifications
ParameterValue
RangeTeSys TeSys Deca
CategoryUS10I1222357
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Device short nameLC2D
Device presentationPreassembled with reversing power busbar
Protective treatmentTH IEC 60068-2-30
Contactor applicationMotor control Resistive load
Mechanical robustnessVibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor open10 Gn for 11 ms Shocks contactor closed15 Gn for 11 ms
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

The Schneider LC2D50AL7 is a TeSys D Deca reversing contactor, preassembled with a reversing power busbar, rated for AC-1, AC-3, and AC-3e utilization categories.

This part has been classified as obsolete by the manufacturer.

Panel envelope: depth 4.7 in (120 mm), width 4.7 in (119 mm), height 4.8 in (122 mm). Operating temperature range -40 to 140 °F (-40 to 60 °C) with derating up to 158 °F (70 °C). Storage temperature: -76 to 176 °F (-60 to 80 °C). Pollution degree 3. Climatic withstand per IACS IEC 60947-1 Annex Q category D. Flame retardance V1 per UL 94; fire resistance tested to 1562 °F (850 °C) per IEC 60695-2-1.

The contactor is preassembled as a reversing pair with the busbar included — saves panel-builder installation time compared to buying two contactors and a mechanical interlock separately.

Frequently asked questions

What are the key dimensions of the LC2D50AL7?

Depth is 4.7 in (120 mm), width 4.7 in (119 mm), height 4.8 in (122 mm).

What compliance documentation does this part carry?

It meets several standards: flame retardance V1 per UL 94, fire resistance to 1562 °F (850 °C) per IEC 60695-2-1, IP20 protection on the front face, pollution degree 3, and climatic withstand per IACS IEC 60947-1 Annex Q category D.
