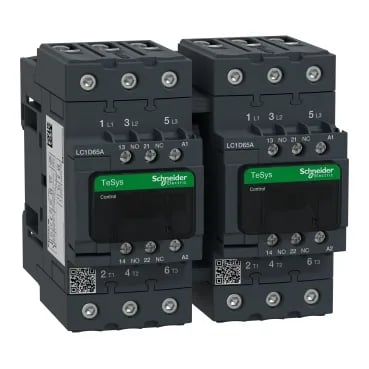

Schneider Electric LC2D65AG7

Schneider LC2D65AG7 TeSys Deca reversing contactor, 65 A AC-3

MPNLC2D65AG7
Obsolete

Schneider LC2D65AG7 Electrical Contactors — now discontinued, supplied from remaining surplus and broker stock.

$323.85Ref. price · indicative, final on quote
Schneider Electric LC2D65AG7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC2D65AG7 key specifications
ParameterValue
Product or component typeReversing contactor
Climatic withstandIACS E10 IEC 60947-1 Annex Q category D
[Ue] rated operational voltagePower circuit Power circuit 10 MOhm for signalling circuit
Power pole contact composition3 NO
Poles description3P
Utilisation categoryAC-3 AC-1 AC-3e
IP degree of protectionIP20 front face IEC 60529
Pollution degree3
Operating altitude0...9842.52 ft (0...3000 m)
Depth4.7 in (120 mm)
Width4.7 in (119 mm)
Height4.8 in (122 mm)

All specifications

LC2D65AG7 additional specifications
ParameterValue
RangeTeSys TeSys Deca
CategoryUS10I1222357
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Device short nameLC2D
Device presentationPreassembled with reversing power busbar
Protective treatmentTH IEC 60068-2-30
Contactor applicationResistive load Motor control
Mechanical robustnessVibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor open10 Gn for 11 ms Shocks contactor closed15 Gn for 11 ms
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Overview

The LC2D65AG7 is a Schneider TeSys Deca reversing contactor rated 65 A in AC-3 duty and 80 A in AC-1, with a 120 V AC 60 Hz coil and 1NO-1NC auxiliary contacts built in. It ships preassembled with the reversing power busbar, saving panel build time on a 3-pole motor-reversing circuit.

Compared to the LC2D40AB7, the LC2D65AG7 carries a higher AC-3 switching current (65 A vs 40 A), so it fits motor loads above the 40 A frame without stepping up to a larger contactor family.

The LC2D65AG7 is in active production; lead time is confirmed per RFQ for the exact build code.

MPN
LC2D65AG7
