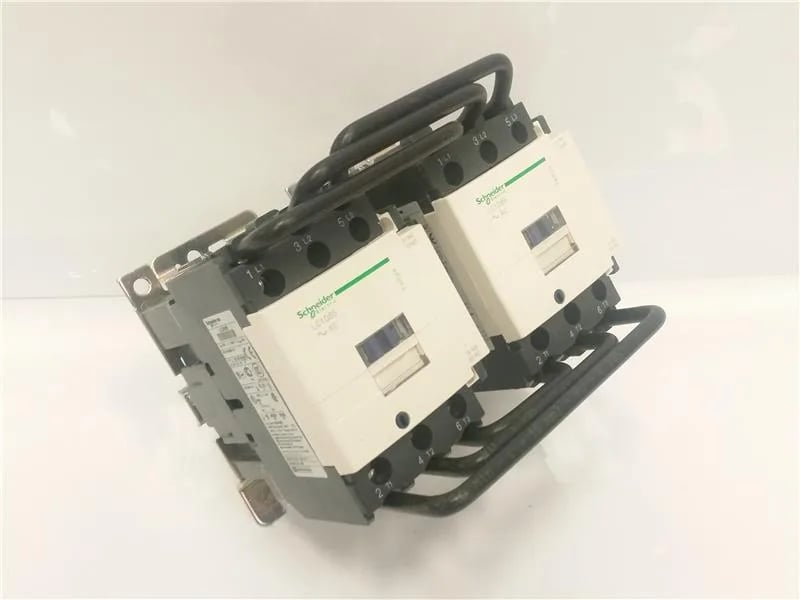

Schneider Electric LC2D65G7
MPNLC2D65G7
Active
REVERSING CONTACTOR 575VAC 65A IEC|REVERSING CONTACTOR 575VAC 65A IEC
$1,074.65Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Reversing contactor |
| [Ue] rated operational voltage | Power circuit 10 MOhm for control circuit |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-2 AC-3 AC-4 |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Depth | 5.6 in (142 mm) |
| Width | 6.5 in (165 mm) |
| Height | 5.2 in (132 mm) |
| Category | US10I1222357 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Device short name | LC2D |
| Contactor application | Motor control |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
MPN
LC2D65G7
